THOR200-S4
2U Half-Rack Data Recording Xeon Server
- Intel® Ice Lake Xeon D Rugged Storage Server
- 4 x DDR4 Registered ECC RDIMM up to 512GB
- 4x U.2 NVMe Up to 64TB SSD
- 2x10G, 2xUSB 2.0, 1x RS232/422/485
- 2x25G(SFP+) – Options
- 4xSDI, 4xCVBS – Options
- MIL-STD 461 EMI Compliance
- MIL-STD 810 Temperature, Shock , Vibration
- Operating temp. -40°C to 60°C
Download
- Technical Profile
- Specifications
- Introduction
-
The increasing reliance on Artificial Intelligence (AI) and Machine Learning (ML) applications in the military has led to a significant generation of data, shaping the digital landscape. In this data-driven era, the secure storage and protection of critical information are not just important, but absolutely crucial.
Introducing THOR200-S4, a groundbreaking Storage Server Solution that revolutionizes data storage, processing, and retrieval.
Powered by the advanced Intel Ice Lake Xeon D-2712T processor, THOR200-S4 offers support for up to 256GB Registered ECC R-DIMM and 4 Swappable U.2 SSDs. This state-of-the-art hardware configuration provides unmatched performance and reliability, enabling seamless data management. With an impressive 16TB capacity, THOR200-S4 effortlessly handles large volumes of surveillance footage and satellite imagery, optimizing resource utilization and delivering robust data management capabilities for military operations.

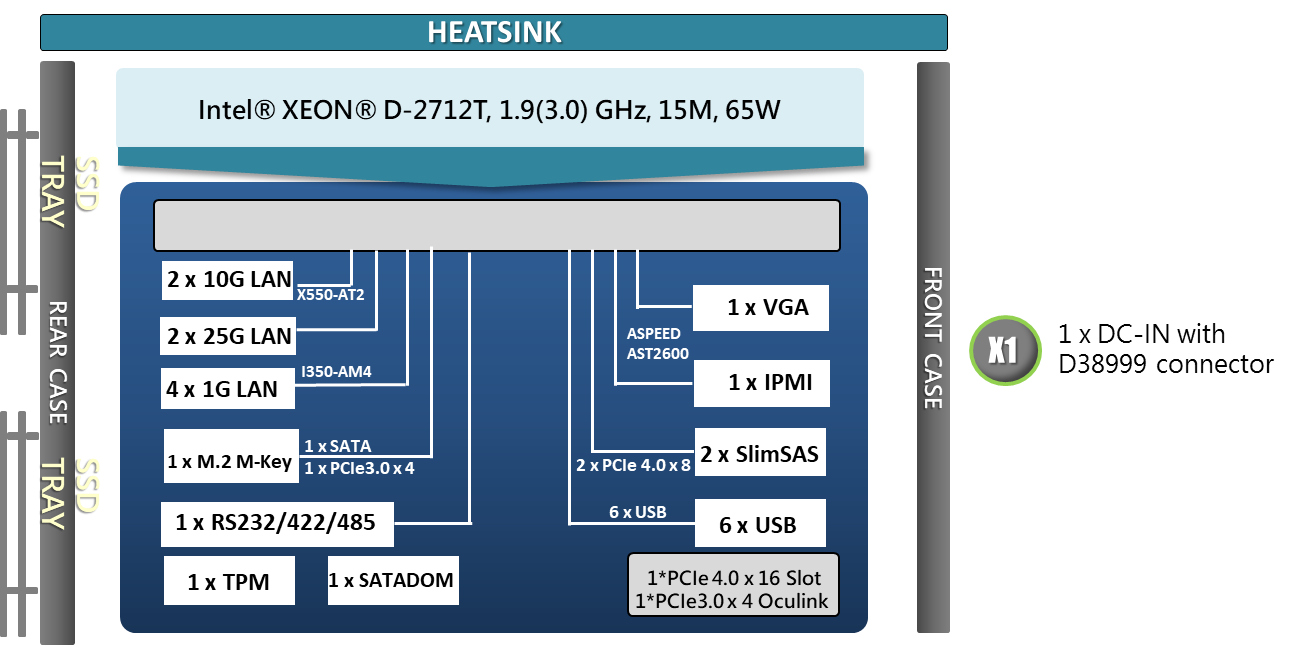

- Block Diagram
-

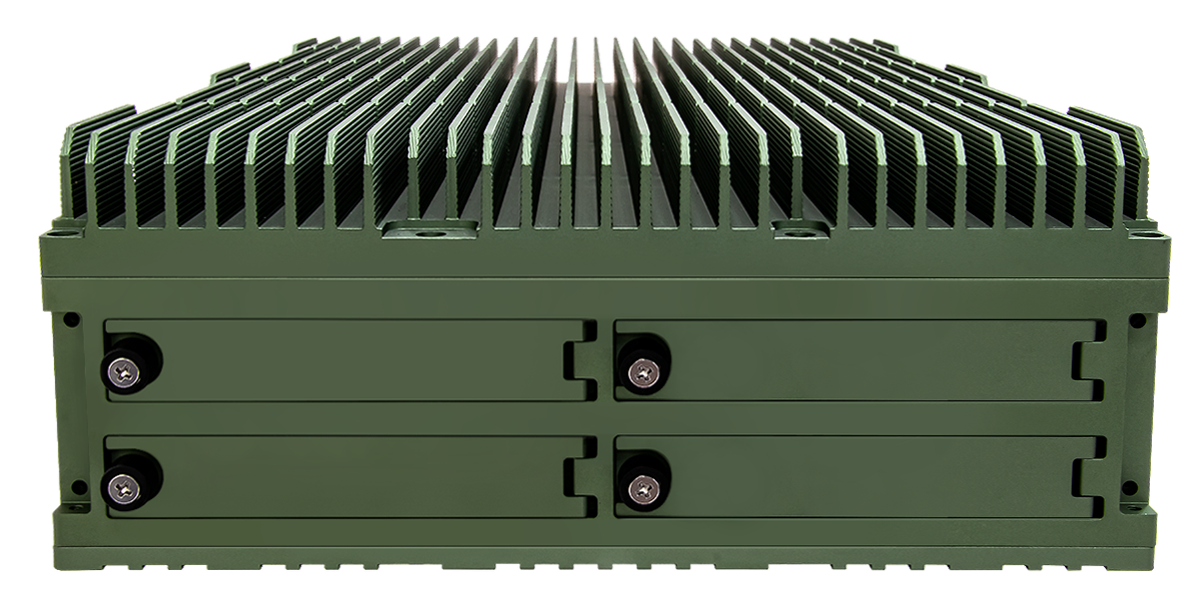

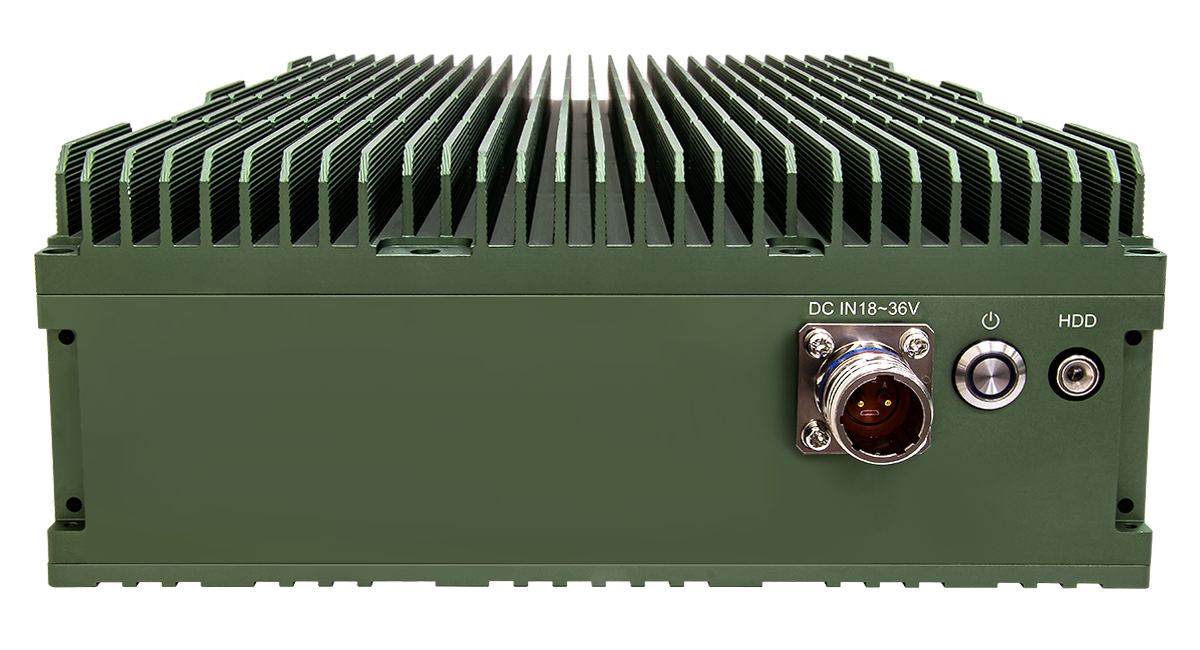

- Appearance
| System | |
|---|---|
| Processor |
Intel® Xeon® D-2712T, 1.9(3.0) GHz, 15MB, 65W, 4C/8T |
| Memory Type | Up to 256GB Registered ECC RDIMM, DDR4-2667MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2667MHz |
| TPM | Type: TPM 2.0 ; Header & Chip Both |
| BIOS | AMI UEFI BIOS |
|
USB |
4 x USB 3.0 - Options, 2 x USB 2.0 |
|
Ethernet |
2 x 10GbE LAN 2 x 25GbE LAN(SFP+)-Options 4 x 1G LAN-Option |
|
Power Type |
18V ~ 36V DC IN MIL-STD 461 EMI Filter |
|
Storage |

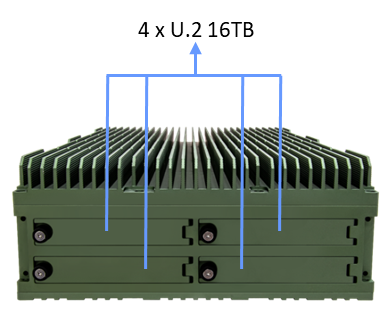

4 x 2.5” U.2 16TB(4 x Swappable SSD Tray) |
|
Operating Temperature |
-40°C to +60°C |
|
Dimension (WxLxH) |
230 x 400 x 88 mm |

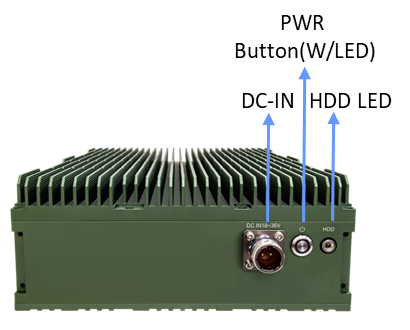

| Front I/O | |
|
X1 |
1 x DC-IN with D38999 connector |
|
X2 |
2 x USB 2.0 +1 x RS232/422/485 |
|
X2-X3 |
2 x 10G |
|
X4-X7 |
4 x BNC(SDI Input)- Option |
| REAR I/O | |
|
Standard |
MIL-STD-810 MIL-STD-461/ MIL-STD-1275 12V~36V DC-Input |
| Environmental | |
| Standard |
MIL-STD-810G MIL-STD-461/ MIL-STD-1275 18V~36V DC Input |
