ROC285A - Coffee Lake DC-In Fanless Server

19” 1U Rack-mount Rugged Fanless Server with Intel®8/9th Gen CPU, Rich I/O interface, 9V to 36V DC-in, Extended Temp. -20 to 60°C

  • Intel® Coffeelake-Refresh i7-9700TE (8 cores, 3.8GHz)
  • 2 x SO-DIMM DDR4 2400/2666 MHz up to 64GB
  • 1 x PCIe x16, 1 x Full/Half mPCIe, 1 x M.2(Key E), 1 x M.2(Key M) expansion slot
  • High efficient I/O 4 x USB3.0, 3 x DisplayPort, 2 x LAN, 1 x Line-out/Mic
  • 2 x 2.5” SATA HDD/ SSD easy swap tray
  • Wide range 9~36V DC-in
  • Extended temperature -20 to 60°C
Download
  • 製品概要
  • Specifications

Introduction

ROC285A is an industrial 19” 1U Rack-mount rugged fanless server. Based on Intel® Coffeelake 14nm Core™ Q370 Chipset, ROC285A can be processed by Intel® Coffeelake-Refresh i7-9700TE (8 cores, 3.8GHz) processor. It supports up to 64GB of memory capacity, onboard dual Gbit Ethernet, 3 x DP (resolution up to 4096 x 2304), SuperSpeedPlus USB 3.1 ports (10Gb/s). Also, ROC285A provides PCIe x16 expansion for high speed delivering, like RAID card, graphic card or 10GbE…etc. With further advantages, for excample, HDD/ SSD easy swap tray and multi-expansion slot, we believe that ROC285A is a best choice for those people, who are eager for getting a head start in the field of mobile vehicles and planning to push the boundaries of possible with us.

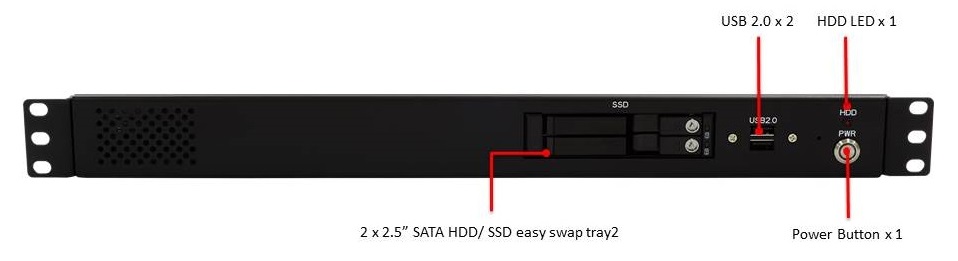

NEW_STYLE_products_ROC285A_01_01NEW_STYLE_products_ROC285A_01_02

The need for data security in Big Data era

In the Big Data era there are billions of bits of data produced every single day. With the ever-increasing data, how to handle volumes of data while securing it becomes one of the most important issues in modern society. From high speed read and write capacity to backup plan preventing from shutdown, all these features should be considered when choosing an ideal server for data processing. When it comes to outdoor applications, requirements of the server are even stricterexternal forces, such as collision and vibration, may cause serious damage easily. However, the server needs to run nonstop to help the whole system respond properly. Thus, for on-the-road development a server is expected to well operate in mobile environment despite the harsh conditions.

Considering the examples given above, the professional rugged computer designer, STACKRACK, launches a new 19” 1U rack-mount rugged fanless server ROC285A. As a 1U rack-mount server, ROC285A provides the most cost effective and high density solutions. What’s more, fanless cooling system with no moving parts ensures internal stability while steering in rough terrain.



High-End Processing Units

Based on Intel® Coffeelake 14nm Core™ Q370 Chipset, ROC285A can be processed by Intel® Coffeelake-Refresh i7-9700TE (8 cores, 3.8GHz) processor. Compared with previous generations, i7-9700TE processor contains much more compute cores, which means the better performance of computations on the data and much more fast memory caches which are responsible for holding data that is currently being worked on. So, ROC285A could provides unique military grade capabilities and killer speed while dealing with a large amount of data.

NEW_STYLE_products_ROC285A_04



High efficient I/O design

On the other hand, ROC285A equipped with high efficient I/O design, composing dual Gbit Ethernet, 3 x DP (resolution up to 4096 x 2304), SuperSpeedPlus USB 3.0 ports (10Gb/s). Efficient connection gives ROC285A the opportunity to exchange information in real time and deliver the data to required platforms without postponement.

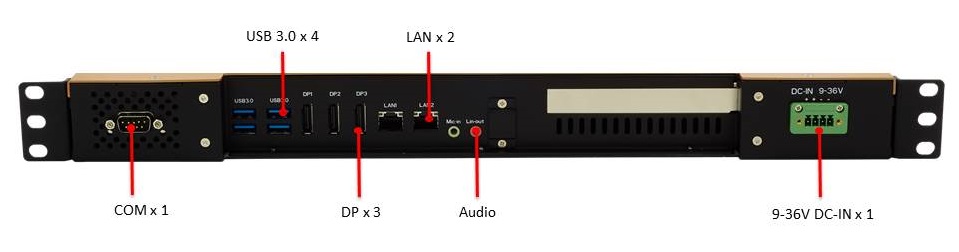

NEW_STYLE_products_ROC285AA_01_02_0



PCIe x16 expansion

 Also, ROC285A provides PCIe x16 expansion for high speed delivering, like RAID card, graphic card or 10GbE…etc.

1. Sensor Fusion Capability:

By adding graphic card, the complete system could fulfill powerful CPU+GPU to support sensor fusion, which requires a powerful processing unit to be in the center, where all the raw data from the sensors is processed. Interpreting the data and deciding how to react, CPU+GPU can make sensors to be truly “smart” sensors and lead the whole system to work accurately.


2. Large Capacity Storage and an advantage of data backup plan:

By adding RocketRAID 4520SGL SAS RAID Card or RocketRAID 840A SATA RAID Card, ROC285A can expand up to 8 Bays SAS or 12 Bays SATA RAID. By using a large numbers of drives ROC285A is able to increase a great amount of storage. Moreover, ROC285A can build a RAID system to increase HDD fault tolerance. In data security, RAID refers to the way which an array of hard disks creates redundant backups of the data, so data can be retained even in the event of a catastrophic system failure.


3. High Capacity RAM support:

Further more, two SO-DIMM, dual channel DDR4 are designed in our rugged server, increasing the RAM of ROC285A up to 64GB and providing the best operating performance in such a compact size. These features make the ROC285A an ideal rack-mount server for mobile vehicles, e.g. railway, trucks, and military land vehicles.

Wide Range DC-DC Power Input

ROC285A features wide range DC to DC power input. Ranging from 9V to 36V, ROC285A can operate normally despite sudden drop or surge of power. Thus, with this outstanding system, our customers don’t need to worry about the possible lightning strike while planning an outdoor deployment.

NEW_STYLE_products_ROC285A_06



Extended Temperature Range

With STACKRACK’s extraordinary research and perfect design, ROC285A can successfully operate from -20°C to 60°C degrees, and with our special industrial extended range of temperature layout, it can also reduce the potential computer glitches caused by hardware incompatibility and losses of connectivity caused by shock and vibration.

NEW_STYLE_products_ROC285A_07_01

Operating Temp

-20°C to 60°C

System

CPU

Socket LGA 1151 for Intel® Core i7/i5/i3/Celeron® (Supports up to 65W)

Intel® Core™ i7-9700TE (8C x 3.8 GHz), 12MB Cache

Memory Type

2 x SO-DIMM DDR4 2400/2666 MHz up to 64GB

Chipset

Intel® Q370 Chipset

Expansion Slot

1 x PCIe x16 (Graphics card dimension should not be large than 170x110mm) 1x M.2 (Key M, 2242/2260/2280) with PCIe x4 and SATA3

Storage

HDD/SDD

2 x 2.5” SATA HDD/SSD easy swap tray

Ethernet

Ethernet

Intel® I210 & I219LM GbE LAN (support 10/100/1000 Mbps for x2 RJ45 ports)

Rear I/O

DisplayPort

3 x DP, resolution up to 4096 x 2304

Ethernet

2 x RJ45 Intel® I210 & I219LM GbE LAN (support 10/100/1000 Mbps)

Audio

2 x 3.5mm Audio Jacks (1 x MIC, 1 x Line-Out)

COM

1 x RS232/422/485

USB Port

4 x USB 3.1(10Gb/s)

DC-IN

1 x 4P Terminal Block

Front I/O

Power Button

1 x Power Button w/Indicator LED

USB

2 x USB 2.0

Indicator LED

HDD

Easy Swap SSD Tray

2

Power Requirement

Power Input

9~36v DC-in

Applications, Operating System

Applications

Commercial and Industrial Platforms, Embedded Computing, Process Control, Intelligent Automation and manufacturing applications

Operating System

Windows 10 64Bit Ubuntu13.04, Ubuntu13.10, Ubuntu14.04, Fedora 20

Physical

Dimension(WxDxH)

450 x430 x 44 mm

Weight

8.92Kg

Classis

SECC

Heatsink

Aluminum Alloy, Corrosion Resistant

Finish

Anodic aluminum oxide

Environmental

MIL-STD-810G Test

Method 507.5, Procedure II (Temperature & Humidity)

Method 501.5, Procedure I (Storage/High Temperature)

Method 501.5, Procedure II (Operation/High Temperature)

Method 502.5, Procedure I (Storage/Low Temperature)

Method 502.5, Procedure II (Operation/Low Temperature)

Method 503.5, Procedure I (Temperature shock)

EMC

CE and FCC compliance

Green Product

RoHS compliance

Operating Temp.

w/o Graphic Card (ET: -20 to 60°C; UT: -40 to 70°C) ; w/Graphic Card (0 to 50°C)

Storage Temp.

-40°C to 85°C

Relative Humidity

5% to 95%, non-condensing
