AV710
MIL-STD Fanless Rugged System with Intel® Core™i7-6822EQ Processor, IP65 protection, MIL-STD D38999 Connectors, 9V to 36V DC-in, Wide Temp. -40°C to 70°C
- Design for reliability under demanding MIL-STD-810G Thermal, Shock, Vibration, Humidity/EMI/EMC conditions
- Intel®Core™ i7-6822EQ Processor (2.8GHz, 4 cores, 8 threads)
- Up To 32GB DDR4 Memory
- 1 x VGA, 2 x Gigabit Ethernet,2 x USB, 2 x COM
- Rugged MIL-DTL-38999 connectors
- 9V~36V DC-in
- Optional military-grade DC/DC 12-40V DC-In
- Extended Temperature -40°C to 70°C
Download
- 製品概要
- Specifications

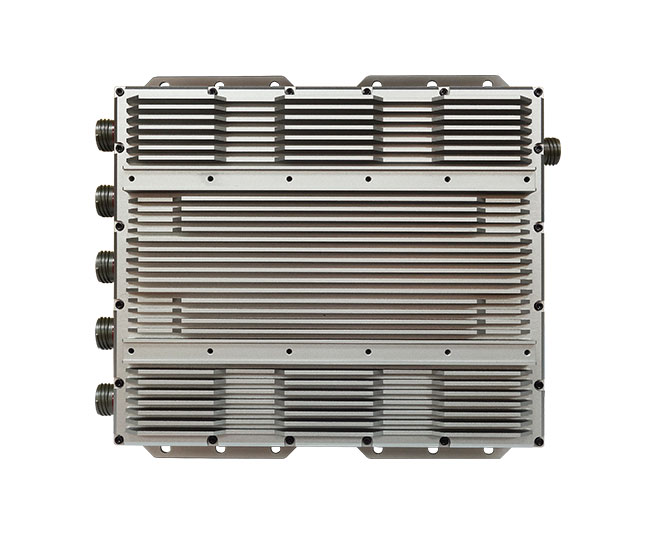

AV710 is driven by Intel 6th generation Skylake-H i7-6822EQ Processor soldering onboard which is an extremely compact Core I-based fanless rugged system. Skylake-H processor supports outstanding CPU and graphics performance, providing 4 cores 2.8GHz clock speed while consuming low power consumption 25W. AV710 highlight on its rugged design and high functionality, the system especially installed MIL-STD Amphenol type connector and full IP65 protection allow system withstand in any kind of harsh environment. AV710 supports extended temperature from -40°C to 70°C and wide range 9V~36V DC input (optional MIL-STD-1275/704/461 Power supply) can protect system from damages caused by sudden surge of voltage, thus further secure the reliability of its critical components and the system itself.
Operating Temp. |
|
|---|---|
| -40°C ~ 70°C | |
System |
|
| CPU | Intel® Core™ Skylake-H Processor Intel® Core™i7-6822EQ Processor (2.8GHz, 4 cores, 8 threads) |
| Memory Type | 2 x SODIMMs up to 32GB DDR4 2133MHz SDRAM |
| Expansion Slot | 1 x mPCIe (1 with mSATA supported) |
| Storage Device | 1 x 2.5" SATAIII up to 4TB |
| Ethernet Chipset | 1 x Intel® I210-IT 1 x Intel® I219-LM |
Front I/O |
|
| Power Button | Water Resistive Power Button with LED Backlight |
| DC-IN | 1 (Amphenol TV07RW-11-54P) |
| Ground Screw | 1 x M4 Screw |
Rear I/O |
|
| X1 | 1 x LAN (Amphenol TV07RW-13-98S) |
| X2 | 1 x LAN (Amphenol TV07RW-13-98S) |
| X3 | 2 x USB (Amphenol TV07RW-13-98S) |
| X4 | 2 x COM (Amphenol TV07RW-13-35S) |
| X5 | 1 x VGA (Amphenol TV07RW-13-98S) |
Display |
|
| Graphics Processor | Intel® HD Graphics 530 |
| Resolution | Up to 1920x1080@60Hz 32bpp |
OS support list |
|
| Windows | Windows 10 64bit |
| Linux | Ubuntu14.04, Fedora 20/23, RedHat Linux EL 7.1/7.2 |
Mechanical and Environment |
|
| Power Requirement | Standard: 9V to 36V DC-in Optional: MIL-STD-1275, MIL-STD 704 and DO-160 power supply , 12 to 40V (150W max) |
| Dimension | 230 x 83 x 280mm (9.06" x 3.27" x 11.02") |
| Ingress Protection | IP65 |
| Weight | 6.0 kg |
| Operating Temp. | -40°C to 70°C (ambient with air flow) |
| Storage Temp. | -40°C to 85°C |
| Relative Humidity | 5% to 95%, non-condensing |
Test Standard |
|
| MIL-STD-810G Test | Method 507.5, Procedure II (Temperature & Humidity) Method 516.6 Shock-Procedure V Non-Operating (Mechanical Shock) Method 516.6 Shock-Procedure I Operating (Mechanical Shock) Method 514.6 Vibration Category 24/Non-Operating (Category 20 & 24, Vibration) Method 514.6 Vibration Category 20/Operating (Category 20 & 24, Vibration) Method 501.5, Procedure I (Storage/High Temperature) Method 501.5, Procedure II (Operation/High Temperature) Method 502.5, Procedure I (Storage/Low Temperature) Method 502.5, Procedure II (Operation/Low Temperature) Method 503.5, Procedure I (Temperature shock) |
| EMC compliance | MIL-STD-461E : CE102 basic curve, 10kHz - 30 MHz RE102-4, (1.5 MHz) -30 MHz - 5 GHz RS103, 1.5 MHz - 5 GHz, 50 V/m equal for all frequencies EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV EN 61000-4-4: Signal and DC-Net: 1 kV EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV EN 61000-4-4: Signal and DC-Net: 1 kV EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV EN 61000-4-4: Signal and DC-Net: 1 kV EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV EN 55022, class A EN 61000-4-3: 10V/m CE and FCC |
| Green Product | RoHS, WEEE compliance |
