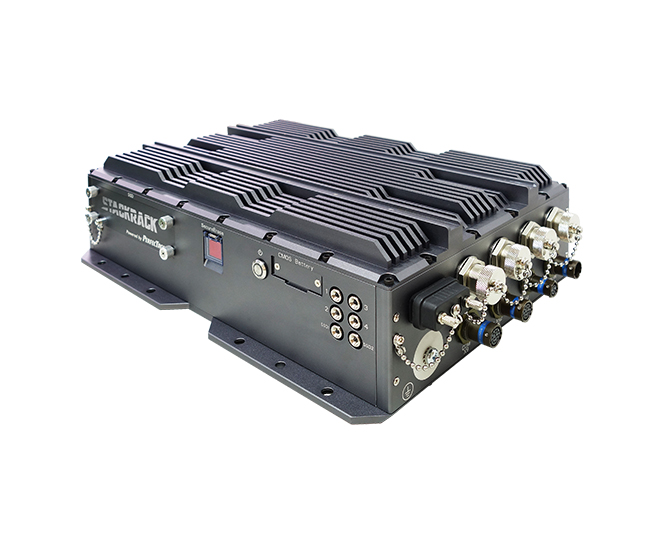

SR800

Fanless Rugged Computer with Intel® Xeon® D-1587 Processor ( 16 cores, 32 threads and a 24 MB Cache ), 128GB DDR4 ECC RDIM, MIL-DTL-38999 connectors



  • Design for reliability under demanding MIL-STD-810G Thermal, Shock, Vibration, Humidity/EMI/EMC conditions
  • Ultra-High Performance Intel® Xeon® D-1587 (2.3GHz, 16 cores, 32 threads)
  • Up To 128GB DDR4 ECC RDIMM
  • Rugged MIL-DTL-38999 Souriau Connector
  • Dual Removable Solid-State Disk
  • Hardware Secure Erase
  • Windows 10/Server, Linux, VMware Compatible
  • 12-40V DC MIL-1275/704 Power Supply
  • MIL-461E EMI/EMC Compliance
  • 製品概要
  • Specifications
  • CPU Performance
  • SSD Performance

 Introduction

The SR800 equipped Ultra-High Performance Intel® Xeon® D-1587 is fully qualified IP65 with D38999 connectors which can offer the highest performance capabilities and ready to handle multiple applications in harsh environments. It meets the needs of a wide range of deployable systems and serves as the ideal mission computer.

SR800 was designed to meet MIL-461E/1275/705 EMI/EMC Environmental Conditions for Airborne Equipment. It passes numerous environmental tests including Temperature, Altitude, Shock, Vibration, Voltage Spikes, Electrostatic Discharge and more. The sealed compact chassis shields circuit cards from external environmental conditions such as sand, dust, and humidity.

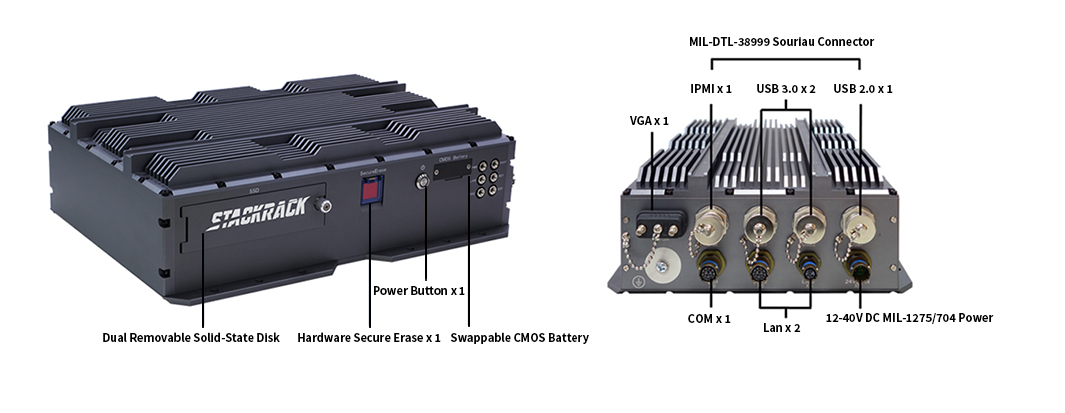

NEW_STYLE_products_SR800_02

Ultra-High Intel® Xeon® D Processor ( 16 Cores, 32 Threads, 24MB Cache )

HORUS200_03

Broadwell DE:

Intel® Xeon® processor D-1500 product family offers hardware and software scalability from two up to sixteen cores, making it the perfect choice for a broad range of high-performing, low-power solutions that will bring intelligence and Intel® Xeon® reliability, availability, and serviceability (RAS) to the edge.



Enhanced performance per watt:

Intel® Xeon® processor D-1500 product family delivers exceptional value and unmatched performance density per watt. Its TDP of 19W to 65W, industry-leading 14 nm process technology and a compute-only design make it ideal for meeting the diverse needs of customers seeking mid-range low-power, high-density solutions.



Enabling more IoT Use Cases:

The Intel® Xeon® processor D-1500 product Family drives a host of new IoT opportunities for a wide range of environments, while addressing real-time optimization, and workload consolidation. Its temperature rating spans from -40°C to 85°C operating ambient conditions, which establishes new possibilities for Intel® architecture in markets that require robust products, like aerospace and industrial.

Unique Features

HORUS200_05

MIL-STD-1275/704 Power Supply with Voltage Transient Protections

SR800 is designed with MIL-STD-1275/704, protecting against vehicle/aircrafts voltage surges, spikes and transients, and even electromagnetic interference. This characteristic is well suited for the strictest military requirement and deliver optimal performance in harsh conditions.

The GAIA Hi-Rel DC/DC CONVERTER it also provides under voltage Lockout (UVLO), Output over Current Protection (OCP), Output Overvoltage Protection (OVP) and Over Temperature Protection (OTP) to made stability and safety.

Swappable CMOS Battery

Generally, to exchange the battery from a rugged solution is complicated and has the possibility to affect the original function of water and dust resistance. SR800 has an easy swappable battery tray allowing users to directly replace. A coin-cell battery can be seen when pulling the tray fully out of the computer; users just need to change with CR2032 battery and push the tray back and lock screw, then the replacement is completed.t

SR800_06

SR800_07

Dual Removable SSD ( Solid-state Disk )

The dual Removable SSD (Solid-state Disk) provide a compact self-contained system to store and retrieve data from ruggedized and removable 2.5” Flash Disks and have been qualified to meet the most demanding MIL-STD-810 environments. The dual Removable SSD Disk System is the perfect DTU for military, aerospace, avionics and ground vehicle systems. These systems include flight management, cockpit instrument display, terrain awareness and warning, map systems, radar systems, cockpit/ground communications, navigation positioning, and satellite communications.

NEW_STYLE_products_HIRUS200_03

NEW_STYLE_products_HORUS200_04

Hardware Secure Erase

Under emergency situation, when written data is required to be erased immediately, a Secure Erase Button is extremely indispensable. Instant Erase is a particular feature for SED ( Self Encryption Drive ) drive. It's faster than Quick Erase to make all written data invalid. The encryption and decryption is controlled by an AES key on the path; once the AES key is replaced by a new one, the data becomes unrecognizable.



NEW_STYLE_products_SR800_04

Rugged D38999 Series connectors

D38999 connectors offer the highest performance capabilities and reliability for both general duty and severe environment applications. This cylindrical connector family designed for cable-to-panel I/O applications in military, aerospace and other demanding hazardous situations. D38999 connectors are capable of operation within a temperature range -65 to 200°C. They are lightweight and can stand up to environmental challenges. Made with removable crimp or fixed hermetic solder contacts, these connectors provide high-vibration characteristics and are suitable for severe wind and moisture problem areas.

NEW_STYLE_products_SR800_05

Patented Thermal Solution

STACKRACK designs a unique enclosure that is able to stack together both horizontally and vertically. The aluminum heat sink enclosure of SR800 allows top heat dissipation. STACKRACK exclusively adopts special heat radiating material and combining with special CNC cutting, further forged into a lavish sophisticated metal.



Operating Temp.
0°C~50°C
System
Model SR800
CPU Intel® Xeon® Processor D-1587 (Frequency 1.7GHz, Turbo Boost Frequency up to 2.3GHz), 16-Core,
32 Thread Support, 24MB Smart Cache.
Build-in Turbo Boost Technology 2.0, VPro and Hyper-Threading
Memory support. 4 x DIMMs Up to 128GB ECC RDIMM DDR4 2133MHz
Chipset SoC, integrated with CPU
Display
Graphics Processor ASPEED AST2400
Display Port Resolution up to 1920x1200@60Hz 32bpp
Storage
SSD/HDD 2 x 2.5" SSD
Ethernet
1 x Intel I350-AM2 Gigabit LAN Interfaces ( 10/100/1000Mbps )
Rear I/O
VGA 1 ( M20 connector )
IPMI 1 ( M20 connector )
USB3.0 2 ( M20 connector )
USB2.0 1 ( M20 connector )
X1 ( DC-IN ) 1 ( Souriau 8ST7-10G05PN )
X5 ( Gigabit Ethernet ) 1 ( Souriau 8ST7-10G35SA )
X6 ( 100M Ethernet ) 1 ( Souriau 8ST7-08G35SN )
X9 ( RS232 ) 1 ( Souriau 8ST7-10G35SB )
Side I/O
Button 1 x Secure Erase Button ( SSD2 support AES Secure Erase )
1 x Power Switch with Dedicated LED
HDD Tray 1 x Dual 2.5" HDD/SSD Easy Swap Tray
CMOS Battery Tray 1 x Removable CR2032 CMOS Battery Tray
Dedicated LED 3 x SDD LED ( Leftside x 2, Rightside x 1 )
4 x Dual Color LED for 8bit GPIO ( Reserved )
Power Requirement
Power Input MIL-STD-1275, MIL-STD 704 and DO-160 power supply ,12 to 40V ( 150W max )
Applications, Operating System
Applications Commercial and Military Platforms Requiring Compliance to MIL-STD-810G
Embedded Computing, Process Control, Intelligent Automation and
manufacturing applications where Harsh Temperature, Shock, Vibration, Altitude,
Dust and EMI Conditions. Used in all aspects of the military
Operating System Windows 10 64Bit, Windows Server 2008 R2,
Windows Server 2012 R2 Ubuntu14.04,
Fedora 20/23, RedHat Linux EL 7.1/7.2,
Vmware ESXi 6.0, ESXi 6.5
Physical
Dimension ( W x D x H ) 260 x 350 x 102 mm
Weight 7.5Kg ( 16.5lbs )
Chassis Aluminum Alloy, Corrosion Resistant.
Finish Anodic aluminum oxide ( Color Iron gray )
Cooling Natural Passive Convection / Conduction. No Moving Parts
Ingress Protection IP50
Environmental
MIL-STD-810G Test Method 507.5, Procedure II ( Temperature & Humidity )
Method 516.6 Shock-Procedure V Non-Operating ( Mechanical Shock )
Method 516.6 Shock-Procedure I Operating ( Mechanical Shock )
Method 514.6 Vibration Category 24/Non-Operating ( Category 20 & 24, Vibration )
Method 514.6 Vibration Category 20/Operating ( Category 20 & 24, Vibration )
Method 501.5, Procedure I ( Storage/High Temperature )
Method 501.5, Procedure II ( Operation/High Temperature )
Method 502.5, Procedure I ( Storage/Low Temperature )
Method 502.5, Procedure II ( Operation/Low Temperature )
Method 503.5, Procedure I ( Temperature shock )
Reliability No Moving Parts; Passive Cooling.
Designed & Manufactured using ISO 9001 / 2000 Certified Quality Program.
Operating
Temperature
0°C to 50°C
Storage
Temperature
-40°C to 85°C
EMC MIL-STD-461E :
CE102 basic curve, 10kHz - 30 MHz
RE102-4, (1.5 MHz) -30 MHz - 5 GHz
RS103, 1.5 MHz - 5 GHz, 50 V/m equal for all frequencies EN 61000-4-2: Air discharge: 8 kV,
Contact discharge: 6kV EN 61000-4-4: Signal and DC-Net: 1 kV
EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV
EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV
EN 61000-4-4: Signal and DC-Net: 1 kV
EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV
EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV
EN 61000-4-4: Signal and DC-Net: 1 kV
EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV
EN 55022, class A
EN 61000-4-3: 10V/m
CE and FCC

 The rugged MIL-STD compliant system, SR800 is equipped with highly effectively heat conductive and heat convective thermal solutions to meet extended temperature requirements. The heat conductive solutions uses an aluminum flat mass to place in direct contact with the processor and chipset, the heat from chips then transfers it to the case of the system via 8.0 mm copper heat pipes. In addition, the convective thermal solutions introduce airflow directed to move across the surface of a fin style heatsink placed on top of the processor and chipset. This can be done with the aid of an appropriately sized fan placed in top of the fin style heatsink. Alternately, enclosure airflow can be routed to flow across a fin style heatsink.

NEW_STYLE_products_SR800_CPU01

Device Model SR800
Tester Robin Chang
Test Result Pass
Test Temperature High 0°C~55°C / Low -5°C~0°C
Test Time 5 Hours / 1 Hour
Test Standard Reference IEC60068-2
Test Software Burnin test v8.1
Criteria After testing, system can't halt.





Test Configuration
Device Configuration Manufacturer Part Number
CPU Intel® Xeon® Processor D-1587 Intel D-1587
PCH SoC
Memory 64GB ECC RDIMM DDR4 2133MHz in 2 sockets Innodisk
SATAIII 64GB SSD Apacer
SATAIII 2TB SSD Innodisk
LAN1 Intel® i350 100M Ethernet Intel i350 100M
LAN2 Intel® i350 1G Ethernet Intel i350 1G
Test Software Burnin test v8.1, CPU Z-1.86, iperf, Passmark USB3.0

AS SSD Benchmark 2.0.6694, Hard Disk Sentinel 5.01

Chamber KSON THS-b4t-150

Chipeng SMO-3
KSON Chipeng THS-b4t-150 SMO-3
Thermal Measurement

STACKRACK provides real lab testing figures to show how CPU performance is with each tailor made thermal kits as important references and design guide for system engineers. For system integration, the crucial challenge is the operation performance under high temperature, thus STACKRACK conducts long time experiments to make sure the superior testing result for all critical missions. By revealing temperature at processor T junction, processor die and heat sink, STACKRACK is able to analyse the thermal solution we designed achieves maximum efficacy and observe CPU performance. The high temperature testing takes 5 hours which at each temperature point we burn in SR800 for one hour, from 50°C to 85°C.

NEW_STYLE_products_SR800_CPU02

SR800 CPU Performance

Point -5°C 10°C 25°C 40°C 55°C
CPU T-J 35 60.2 85.4 85.7 86
CPU Die 22.1 51.1 80.1 85.8 91.4
CPU Heatsink 19.5 46.3 73.1 79.5 85.8
CPU Frenquency (GHz) 2.1 2.1 2.1 2.1 2.1



NEW_STYLE_products_SR800_SSD01

Test Result

NEW_STYLE_products_SR100_SSD08 64GB SSD

NEW_STYLE_products_SR100_SSD092TB SSD

NEW_STYLE_products_SR100_SSD04Apacer 64GB SSD (Read) MB/s

NEW_STYLE_products_SR100_SSD05Apacer 64GB SSD (Write) MB/s

SR800Innodisk 2TB (Read) MB/s

SR800-lineInnodisk 2TB (Write) MB/s

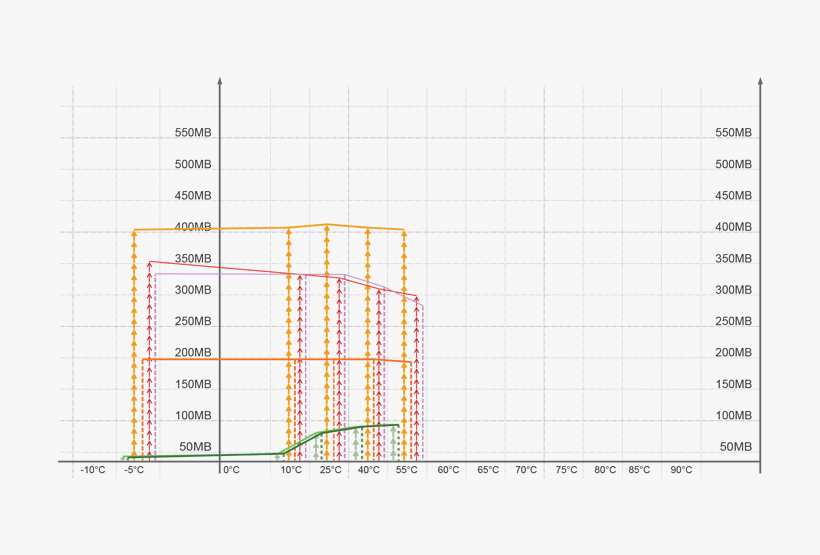

SR800 System - IO Performance

Point -5°C 10°C 25℃ Room temperature 40°C 55°C
64GB SSD 15.9 42.2 68.5 72.8 77.1
2TB SSD 17.6 44.3 70.9 75.0 79.1
Apacer 64GB (Read) MB/s 402.7 406.1 409.5 406.1 402.6
Apacer 64GB (Write) MB/s 191.3 192.6 193.8 192.1 190.4
Innodisk 2TB (Read) MB/s 352.9 339.2 325.5 312.3 299.1
Innodisk 2TB (Write) MB/s 331.9 332.2 332.5 310.4 288.2
