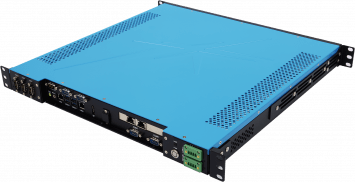

SCH200-X1 1U Fanless IEC 61850-3 Power Automation Computer

IEC-61850-3, IEEE-1613 1U Fanless Power Automation Computer, Intel i7-9700TE Processor, 4 x LAN ( 2 x 100Base-FX, 2x 100/1000 TX), 12V DC Input ( 2x 200W Redundant PSU), 8 x COM (8 x RS232/422/485 variable)

  • IEC-61850-3 , IEEE-1613 compliance
  • Intel 9th Gen. Core i7-9700TE Processor
  • 4 x LAN ( 2 x 100Base-FX, 2x 100/1000 TX)
  • 125V DC-DC Input
  • Redundant PSU (2x 200W )
  • 8 x COM (8 x RS232/422/485 variable)
  • Technical Profile
  • Specifications
  • Certification
 Introduction

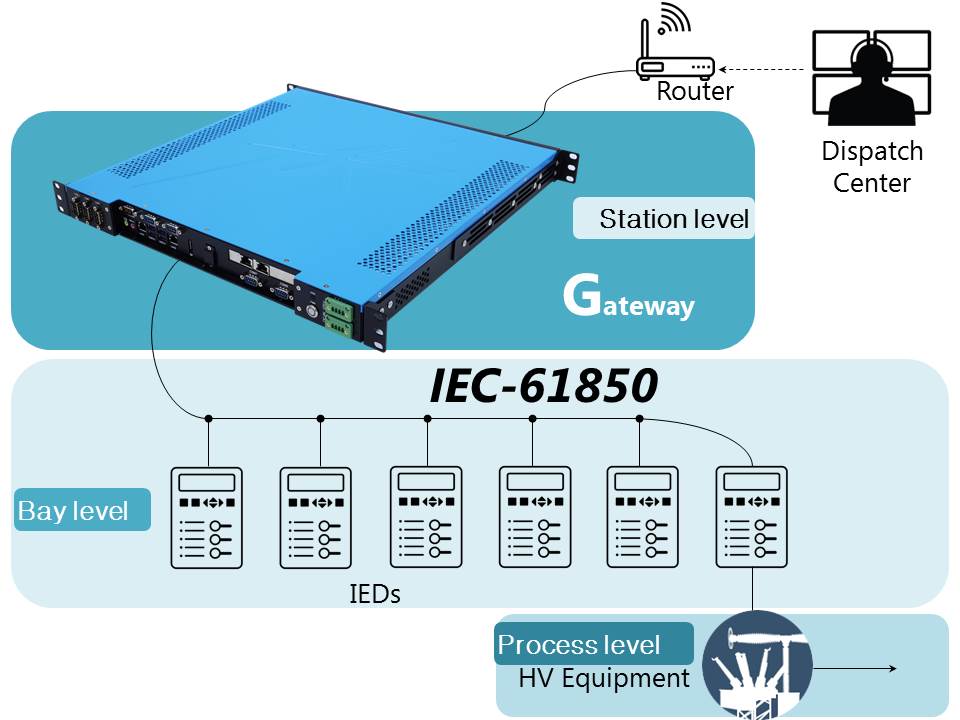

Gateways are rugged communication devices collecting numerous data, such as metering, status, events and fault report from any protection device while sending this information upstream to a control center, transfering commands issued from the control center to other devices. One example of a particular need for gateways is in the energy industry. The energy industry requires specific types of devices using specific protocols. With PLCs/PACs becoming popular in these applications, gateways has grown into a necessary part of Substation Automation Systems, and its reliability may affect the safety of whole system at a station level.​​​​​

SCH200-X1



SCH200-X1_Power Automation Computer



As a leading company specialized in energy related application, 7Starlake’s experienced team designed an extremely reliable Gateway system SCH200, which is equipped with 125V DC-in Redundant Power supply preventing the whole system from unexpected shutdown. Powered by Intel 9th Gen. Core i7-9700TE processor, SCH200 owns highly efficient processing capability to deal with a large amount of data delivering between IEC-61850 devices and the Control Center. In advantage of other outstanding features, such as 2 x 100Base-FX LAN port and 8 x COM (6 x RS232/422/485 variable, 2 x RS232), SCH200 is an undoubtedly best choice for Gateway application in Substation.



Key Features

(1)Security Redundancy

Integrating TPM module, operating systems can require an authentication to protect keys, data or systems.

(3)Rich communication Interface

In advantage of SCH200 diverse I/O, 4 x LAN, 12V DC Input ( 2 x 200W Redundant PSU ), 8 x COM, the SCH200 system can satisfy all our clients.

(5)IEC-61850-3

The standardization of IEC-61850 enables the integration of the equipment and systems from different suppliers, reducing the burden on the configuration and maintenance of these systems. The protocol also meets utilities’ requirements for long-term system expandability. Thus, there are more and more electric companies perform power-system automation by using IEC-61850 protocol with Intelligent electronic devices (IED)

(7)Network Redundancy

PRP/HSR network will be required as an efficient and cost effective solution in order to construct a seamless/bumpless communication infrastructure to ensure maximum system availability.

(2)Power Redundancy

The design of wide power range keeps the system’s reliability and you can expect longer life-span as well. Sudden drop or surge of power posts absolutely no threat to this smart system.

(4)IEEE-1613

The widespread use of multifunctional intelligent electronic devices with advanced communications capabilities has resulted in a new trend in substation automation systems. The intelligent electronic devices exchange messages over the substation local area network. Detail environment and testing requirements for communications networking devices in electric power substations.

(6)Data Redundancy

RAID function supports an assortment to help protect or speed up the performance of a computer's disk storage. RAID 0/1 function makes SCH200 to archive it.

(8)Extreme Temperature

Copper heat spreader, pure copper heat pipe and aluminum heat sink, with all these benefits of fanless design. To ensure high reliability and stability while SCH200 working under wide range temperature from -20°C up to +60°C.  And, with SCH200 special industrial extended range of temperature layout, it can also reduce the potential computer glitches caused by hardware incompatibility and losses of connectivity caused by shock and vibration.



Why IEC-61850 Is Necessary

Although there are lots of protocols worldwide for substation automation, IEC-61850 is the only one that supports systems networked together to perform intelligent transmission and distribution protection, monitoring, automation, metering, and control. The standardization of IEC-61850 enables the integration of the equipment and systems from different suppliers, reducing the burden on the configuration and maintenance of these systems. The protocol also meets utilities’ requirements for long-term system expandability. Thus, there are more and more electric companies perform power-system automation by using IEC-61850 protocol with Intelligent electronic devices (IED).

SCH200-X1_Power Automation Computer

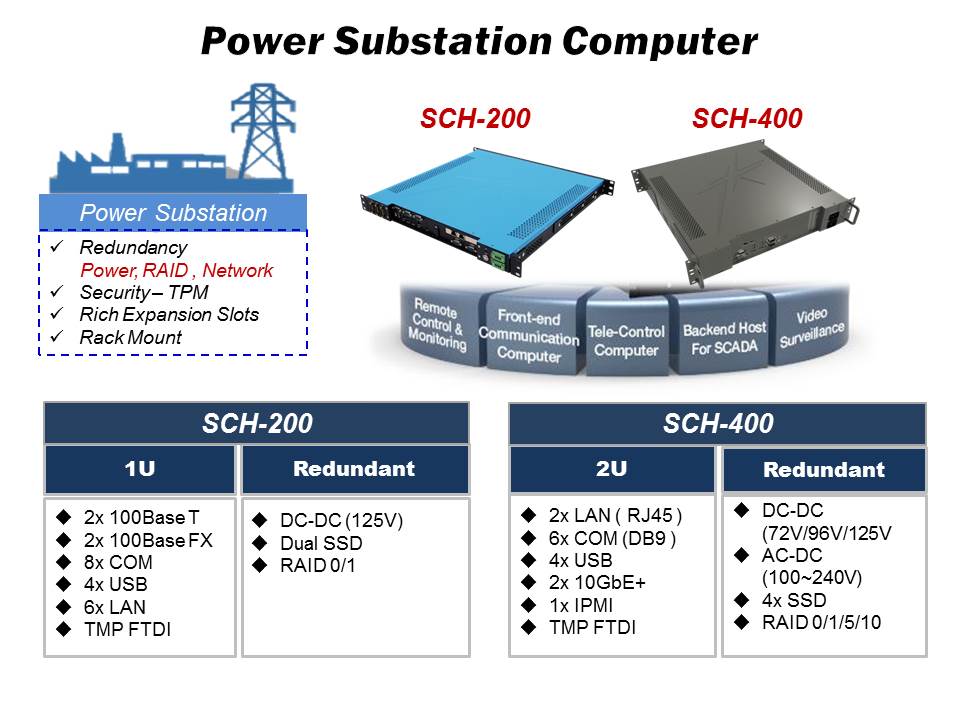

Main Feature
SCH200-X1_Power Automation Computer



Drawing
SCH200-X1_Power Automation Computer





System

CPU

Socket LGA 1151 for Intel® Core i7/i5/i3/Celeron® (Supports up to 65W) Intel® Core™i7-9700TE (8C x 3.8 GHz), 12MB Cache

Memory type

2 x SO-DIMM DDR4 2400/2666 MHz up to 64GB

Chipset

Intel® Q370 Chipset

Display

Display Port

Resolution up to 4096 x 2304@60Hz

Storage

M.2

Up to 1TB

Ethernet

Ethernet

Intel® I210 & I219LM GbE LAN (10/100/1000 Mbps supported )

2 x 100Base-FX port supported

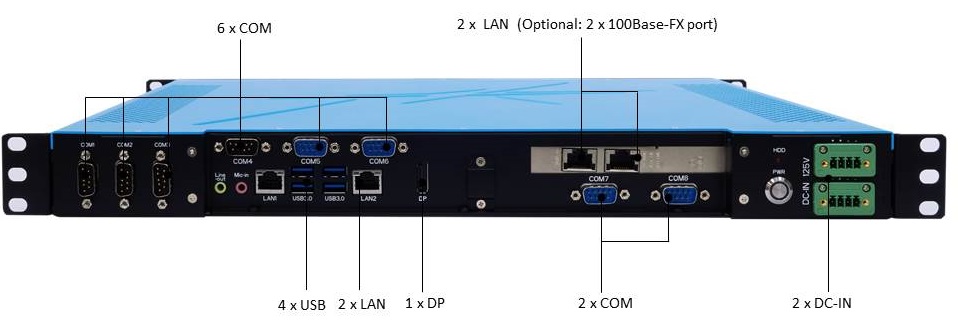

Rear I/O

DisplayPort

1 x DP, resolution up to 4096 x 2304

Ethernet

2 x RJ45, 2 x 100Base-FX port

Audio

2 x 3.5mm Audio Jacks (1 x MIC, 1 x Line-Out)

USB

4 x USB 3.0

DC-IN

2

Button

1 x Power Button w/Indicator LED

COM

8 x COM (6 x RS232/422/485 variable, 2 x RS232)

Power Requirement

Power Input

AC-DC (100~240V) 2 x 200W PSU

Applications, Operating System

Applications

Energy/Smart Grid/Power Plant Management, Intelligent Automation and

manufacturing applications

Operating System

Windows 10 64Bit ,Windows server 2012 r2, Windows server 2016

Ubuntu13.04, Ubuntu13.10, Ubuntu14.04, Fedora20

Physical

Dimension

450 x 482 x 44 mm (W x D x H)

Weight

TBC

Chassis SECC
Heatsink Aluminum Alloy, Corrosion Resistant
Finish Anodic aluminum oxide



Environmental

Compliance

MIL-STD-810G, IEC-61850-3, IEEE-1613, CE and FCC, RoHS

Operating Temp.

-25 to 60°C

Storage Temp.

-40 to 85°C

Relative Humidity

5% to 95%, non-condensing
