HORUS330 - Intel® Core i7 MXM GPUCPU server
1.5 U Fanless Rugged GPU Server Intel® 6th Gen. Core i7-6820EQ processor, NVIDIA® GTX950M GPU, 9V to 36V DC-in, Operating Temp -20°C to 60°C.
NVIDIA® GTX950M (CUDA Cores: 640)/GTX 1050 Ti(CUDA Cores: 768)/GTX1050(CUDA Cores: 640)/GTX1060 (CUDA Cores: 1280) GPU
- Intel® Skylake-H Core i7-6820EQ (4C x 2.8/3.5GHz, 45W)
- Integrated NVIDIA® GTX950M GPU (CUDA 640, Clock speed 914MHz)
- 2 x DDR4 SO-DIMM up to 32GB memory
- 2 x 2.5" Easy Swap SSD/HDD tray
- 2 x RJ45 LAN, 4 x USB 3.0
- 2 x mPCIe expansion slot (one supported with mSATA)
- 9V to 36V DC-in, 12V DC-in for MXM graphics card (optional)
- 2 x I/O expansion (could be customized with 2 x CAN bus/GbE LAN/ DisplayPort/ COM port)
- Extended operating temperature -20°C to 60°C
- NVIDIA® GTX950M (CUDA Cores: 640)/GTX 1050 Ti(CUDA Cores: 768)/GTX1050(CUDA Cores: 640)/GTX1060 (CUDA Cores: 1280) GPU
Download
- Technical Profile
- Specifications
- CPU Performance
- SSD Performance
- Thermal Solution
Introduction

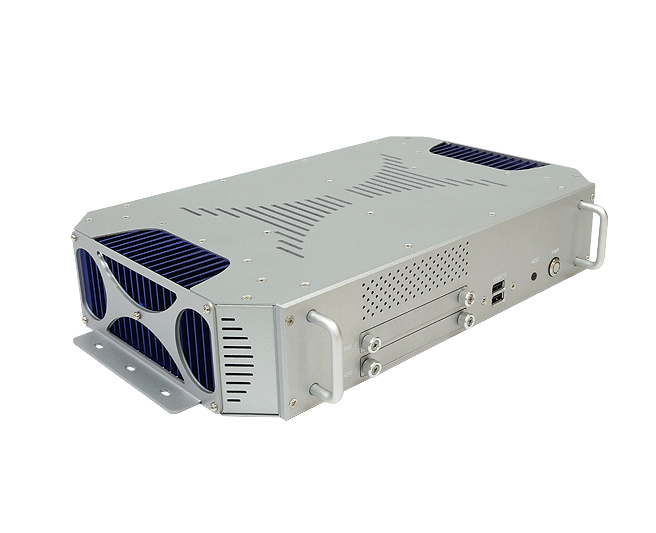

HORUS330, 1.5 U Fanless Rugged GPU Server is a powerful system driven by Intel® 6th generation Skylake-H Mobile CPU. Processor i7-6820EQ, the quad-core CPU, supports 2.8GHz, up to 3.5GHz clock speed for high-end computing performance. Not only with outstanding CPU performance, HORUS330 has integrated graphics card NVIDIA® GTX950M to apply all sort of applications. HORUS330 has provided rich I/O such as 4 x USB 3.0, 1 x COM port, 2 x DisplayPort and 2 x LAN ports. HORUS330 is highlighting on rugged design and high functionality, the special dual thermal solution allows powerful system to present supreme performance under harsh environment. With rugged design, the system is suitable for the use in high-end automation and passenger information system in the field of military, transportation and so on.
- Dual thermal solution ensures supreme system performance
-
With combination of high end CPU computing and graphic GPU power generate numerous heat, STACKRACK emphasizes on providing exceeding thermal design guarantee superior system performance under critical environment. HORUS330 innovatively adopts dual sided thermal solution, with copper heat spreader directly touches the heat source components processor and graphic GPU to absorb the heat rapidly, heat then transfer to heat pipe; heat pipe is two-phase heat transfer involves the liquid-vapor phase change of a working fluid which can provide high efficiency heat transmission. The aluminum heat sink dissipates the heat into surrounding air promptly. One side thermal solution is mainly for Core i7-6820 45W processor and the other side is to dissipate the heat for graphic GTX950M GPU. With unique thermal design, HORUS330 can ensure high performance and reliability while working under extended range temperature from -20 up to 60°C.
- NVIDIA GTX950M GPU, Stunning Graphics
-
Performance
HORUS330 is installed with graphics card NVIDIA GTX950M GPU (CUDA 640, Clock speed 914MHz), allowing generate excellent resolution and supports high efficiency and fluency of image processing with competitive G3D Mark and low power consumption. The system possess great superiority for image computing utilization, including 2D/3D mapping and real-time image process for autonomous vehicle, surveillance system for control room, other navigation, radar, detection, sensor and laser systems on all maritime, ground, and aerial applications in both defense and industrial fields.
I/O Expansions
HORUS330 is designed to fulfill demands of different application. Apart from standard I/O interface, HORUS330 equipped with two I/O expansions at the back panel in order to have more flexibility and be more use-friendly. Which that offers user to customize additional function such as optional quad LAN port from MT321 Ethernet module, CAN Bus/GPS and 4 display output from GTX950M. With these expansions, HORUS330 can be easily applied to control room or driverless vehicles application.

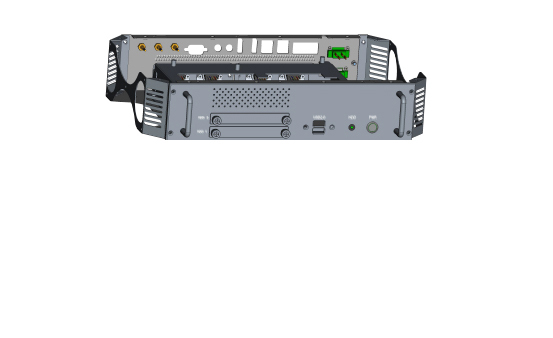

19"rackmount bracket
The ability of keep HORUS330 inside cabinet is also an enhanced ways to keeping your server secure. Which STACKRACK has designed a 19”rackmount bracket allows HORUS330 place inside a cabinet in order to protect from climate issue, dust and pests attack.
Operating Temp. |
|
---|---|
-20°C~+60°C |
|
System |
|
CPU |
Intel® Skylake-H Processor |
Memory Type |
2 x DDR4 SO-DIMM support up to 32 GB |
Expansion Slot |
2 x mPCIe (1 supported with mSATA) |
Storage Device |
1 x mSATA |

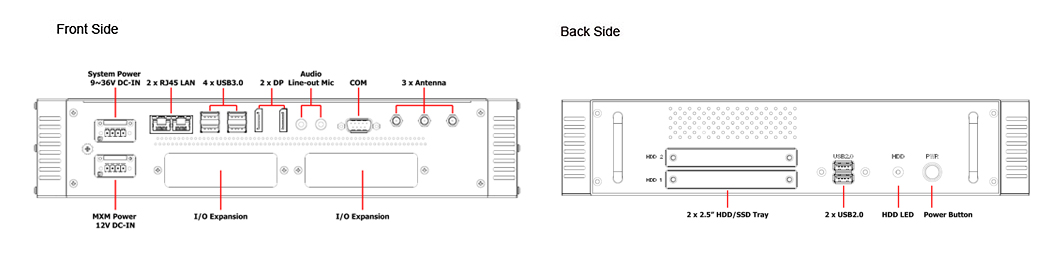

Front I/O |
|
Power Button |
1 with LED backlight |
USB |
2 x USB 2.0 |
2.5" HDD/SSD Tray |
2 |
Handle |
2 |

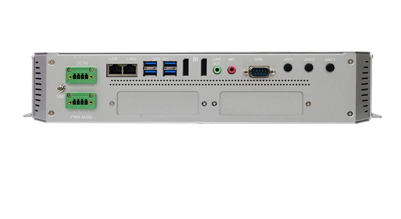

Rear I/O |
|
USB |
4 x USB 3.0 |
Ethernet |
2 x RJ45 GbE LAN |
Display |
2 x DisplayPort |
Audio |
Min-in, Line-out |
Antenna |
Reserved three antenna holes |
I/O Expansion |
2 x I/O Expansion |
Power Input |
9V to 36V DC-in (4-pin terminal block) |
OS support list |
|
Windows |
Windows 8 x32/x64、Windows 8.1 x32/x64、Windows 10 x32/x64 |
Linux |
Fedora 20、Ubuntu 13.04、Ubuntu 13.10、Ubuntu 14.04、Open SUSE 12.2 |
Mechanical and Environment |
|
Power Requirement |
9V to 36V DC-in |
Dimension |
342.0 x 228.4 x 69.8 mm (13.5" x 9.0" x 2.8") |
Operating Temp. |
-20°C to 60°C (ambient with air flow) |
Storage Temp. |
-40°C to 85°C |
Relative Humidity |
5% to 95%, non-condensing |
Certifications |
|
EMC |
CE, FCC |
The HORUS330 offers highly effectively heat conductive and heat convective thermal solutions to meet the demands of customers' extended temperature requirements. The heat conductive solutions uses an aluminum flat mass to place in direct contact with the processor and chipset, the heat from chips then transfers it to the case of the system. In addition, the convective thermal solutions introduce airflow directed to move across the surface of a fin style heatsink placed on top of the processor and chipset. This can be done with the aid of an appropriately sized fan placed in top of the fin style heatsink. Alternately, enclosure airflow can be routed to flow across a fin style heatsink.
Device Model | HORUS330 |
Tester | Robin Chang |
Test Result | Pass |
Test Temperature | High 0°C~60°C / Low -20°C~0°C |
Test Time | 8 Hours / 1.5 Hours |
Test Standard | Reference IEC60068-2 |
Test Software | Burnin test v6.0 |
Criteria | After testing, system can’t halt. |
- Test Configuration
-
Device
Configuration
CPU
Intel® Core™ i7- 6820EQ Processor 3.50 GHz
Memory DIMM
Innodisk 8GB DDR4 SODIMM
SATA Port1
Innodisk 3ME4 2.5" SATA SSD 64GB
SATA Port2
Innodisk 3MG2 2.5" SATA SSD 512GB
LAN1
Intel® I219 Gigabit Network
LAN2
Intel® I210 Gigabit Network
Test Software
Burnin test v7.1、AS SSD、
Intel Extreme Tuning Utility、iperfChamber
KSON THS-b4t-150
- Thermal Measurement
-

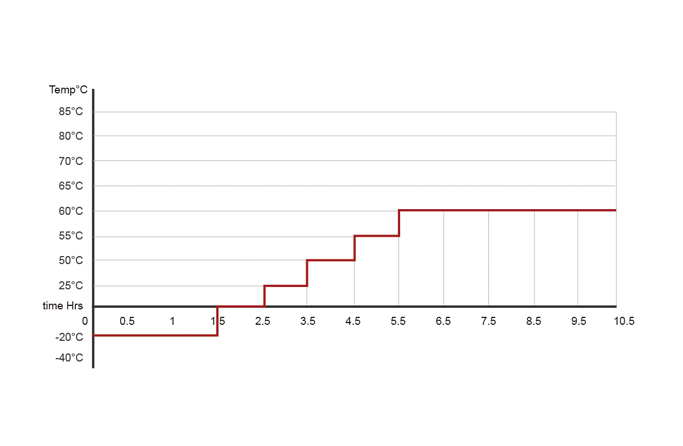

STACKRACK provides real lab testing figures to show how CPU performance is with each tailor made thermal kits as important references and design guide for system engineers. For system integration, the crucial challenge is the operation performance under high temperature, thus STACKRACK conducts long time experiments to make sure the superior testing result for all critical missions. By revealing temperature at processor T junction, processor die and heat sink, STACKRACK is able to analyses the thermal solution we designed achieves maximum efficacy and observe CPU performance. The high temperature testing takes 5.5 hours which at each temperature point we burn in HORUS330 for two hour, from 50°C to 60°C.

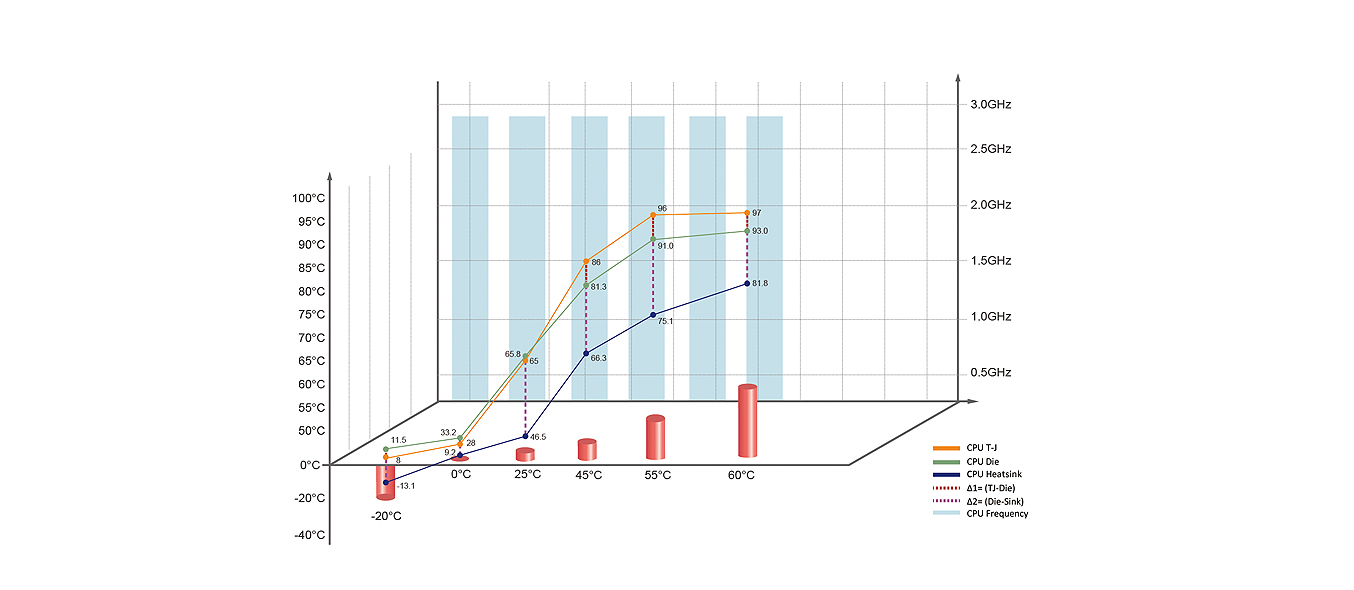

HORUS330 CPU Performance
Point
-20°C
0°C
25°C
45°C
55°C
60°C
CPU T-J 8 28 65 86 96 97 CPU Die 11.5 33.2 65.8 81.3 91.0 93.0 CPU Heatsink -13.1 9.2 46.5 66.3 75.1 81.8 CPU Frenquency (GHz) 2.8 2.8 2.8 2.8 2.8 2.8

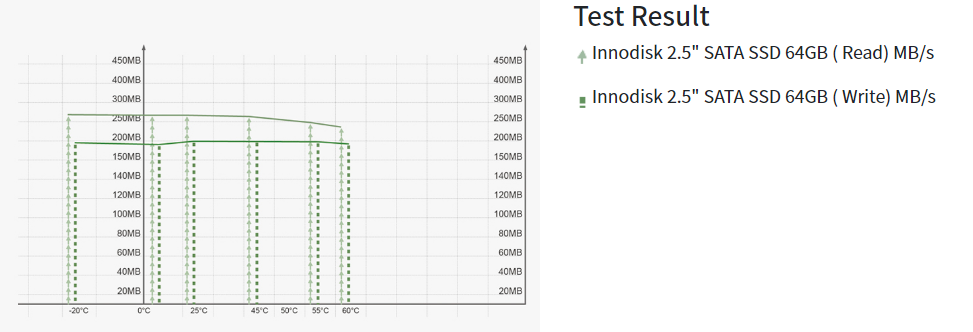

HORUS330 System - IO Performance
Point |
-20°C |
0°C |
25℃ Room temperature |
45°C |
55°C |
60°C |
Innodisk 2.5" SATA SSD 64GB ( Read MB/s) | 265.5 | 266.1 | 265.6 | 265.1 | 264.9 | 263.1 |
Innodisk 2.5" SATA SSD 64GB ( Write MB/s) | 198.3 | 197.2 | 199.1 | 198.7 | 198.5 | 197.6 |
Effective cooling solution for maximum heat dissipation:

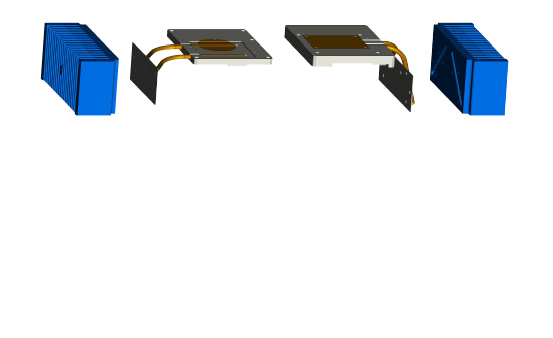

STACKRACK implements unique cooling solution with copper heat spreader, pure copper heat pipe and aluminum heat sink for maximum heat dissipation. With the aluminum heat sink enclosure allows dual-sided heat dissipation. We especially adopt the physical property of copper and aluminum, the heat spreader touches the heat source - processor and chipset and absorbs the heat rapidly, the heat then transfer to heat pipe; heat pipe is two-phase heat transfer involves the liquid-vapor phase change of a working fluid, the aluminum heat sink dissipates the heat into surrounding air promptly. With the benefits of fanless design, HORUS330 can ensure high reliability and stability while working under wide range temperature from -20°C up to 60°C.

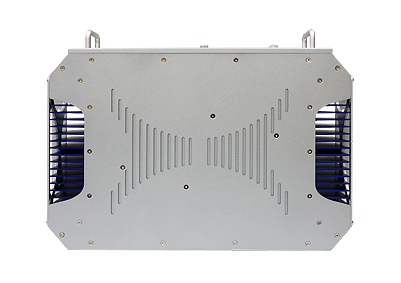

Patent Designed Aluminum Heat Sink
The heat sink is made by heat radiating material, which is aim to lowering the temperature by dissipating heat into the surrounding air. 96 % of aluminum.
Heat spreader
Heat spreader directly touches the power source area, which can absorb heat rapidly and transfer to heat pipe and allow the high efficiency heat pipe further bring out heat to upper heat sink enclosure.
Pure Copper Heat Pipe
The heat pipes are embedded in the heat sink to ensure 100% tight integration for superior heat dissipation. Especially adopts U shape copper heat pipe to fulfill utmost thermal conductivity, copper heat pipe transfers heat from the heat sources (e.g. CPU, chipset) to the heat sink over relatively long distance. Two-phase heat transfer involves the liquid-vapor phase change of a working fluid.

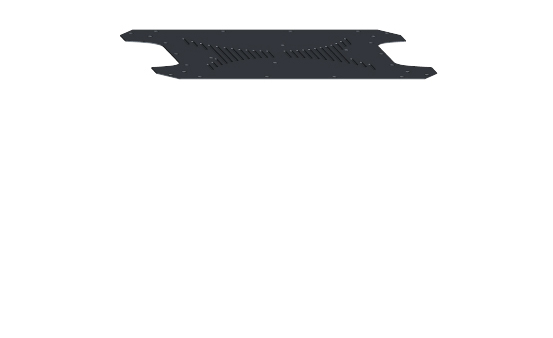

SK513

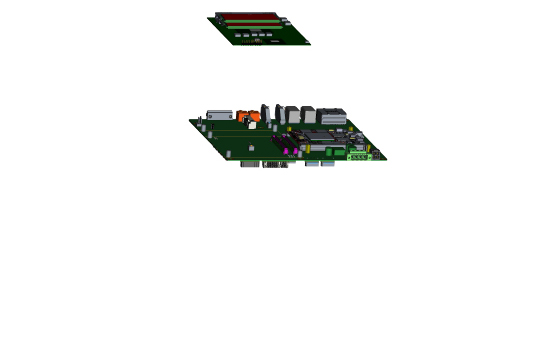

COM Express carrier + CPU Module is in the middle of the system as a cutoff point, dividing segmentation type thermal design into upper and lower module.
Upper thermal module is applied to cool down the heat generated from graphic card and processor.
