SR200, Rugged Fanless Computer with NVIDIA 4 Independent Displays

STACKRACK, an innovative industrial computing and embedded system solution provider has launched a new MIL-STD Fanless Rugged System –SR200. As it has become a competitive trend to share instant and accurate information on huge screen than ever, STACKRACK, has been providing multi video/data control solutions long before the trend, and has pioneered in the area of professional-grade digital solutions. Years of experiences infused with strong sense of design, STACKRACK now releases remarkably advanced video/data display wall controller that break conventionality— SR200, Intel® 4th gen. Core i7-4700EQ EBX compact rugged system with 4 independent DisplayPort by NVIDIA GPU GT730M.

SR200, EBX rugged system delivers several sparkles that outstand from others. Never look down on its compact size of 308 x 149 x 76 mm (W x H x D) but enables to visualize enormous data (figures or graphics) for real-time response, and provides extreme quad core computing power without making loud noises. The patented thermal design brings high efficiency of heat dissipation which achieves wide range operating temperature from -40 to 75°C; And ruggedness for vibration and shock is proven to pass MIL-810G standard. In short, SR200 is undoubtedly described as Bugatti in the outstanding automotive industry, revealing harmony between performance and elegance.

"The one" for Critical Mission – fanless design with optimized computing power

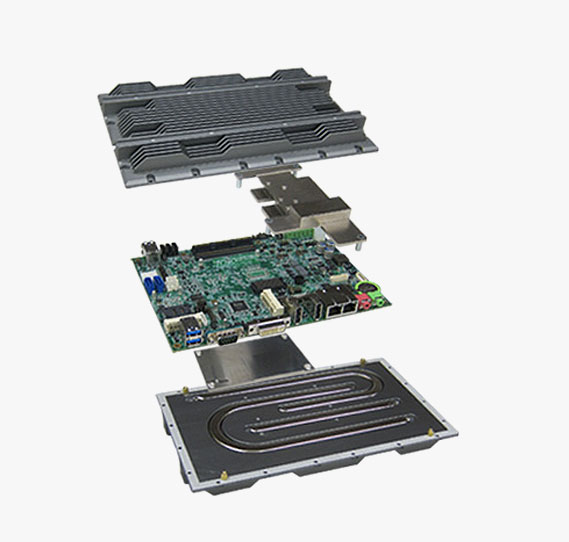

SR200 fanless EBX rugged system is built to fulfill multi-screen video/data display wall and multiple video overlay windowing applications in industrial markets which require high processing capability, but at the same time translate the solution with more energy saving. SR200 uses EBX board driven by Intel® Haswell Core i7-4700EQ supports clock speed 2.4 GHz, up to 3.4 GHz. Quad cores, turbo up to 8 cores to cope with enormous data computing. Intel® i7-4700EQ consumes 47W power integrated with NVIDIA GPU GT730M ensures remarkable efficacy as well as low power consumption. Additionally, STACKRACK exclusively adopts special heat radiating material, and forged into a lavish sophisticated metal. The one and only motive behind all these complicated procedures is to bring out the best heat dissipation to replace fan. Fanless computer delivers silent operation that enhances the flexibility of location and eliminates the possibility of external debris inflow which may cause system failure over time. With the benefits of fanless design, SR200 can ensure high reliability and stability while working under wide range temperature from -40 up to 75°C.

Undefeatable Transformer – Stunning resistance of vibration & shock

To stand out from sterile IPC market, STACKRACK designs a unique enclosure that is able to stack together both horizontally and vertically. The aluminum heat sink enclosure allows dual-sided heat dissipation. SR200 stands for Stack & Rack which represents that SR200 can be stackable and be racked in cabinet. Moreover, SR200 has key components soldered onboard to eliminate risk of harm caused by vibration. It not only supports Intel CPU onboard but also memory and storage onboard which drastically enhance the resistance of vibration and shock.

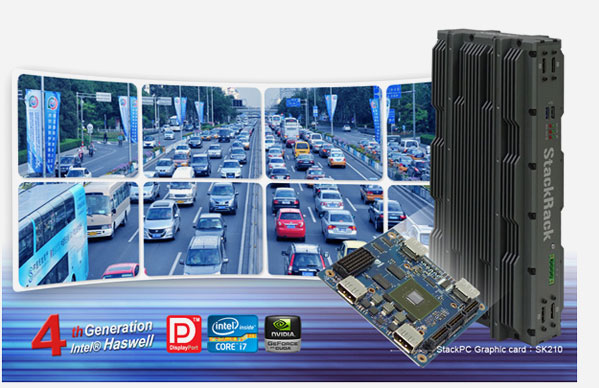

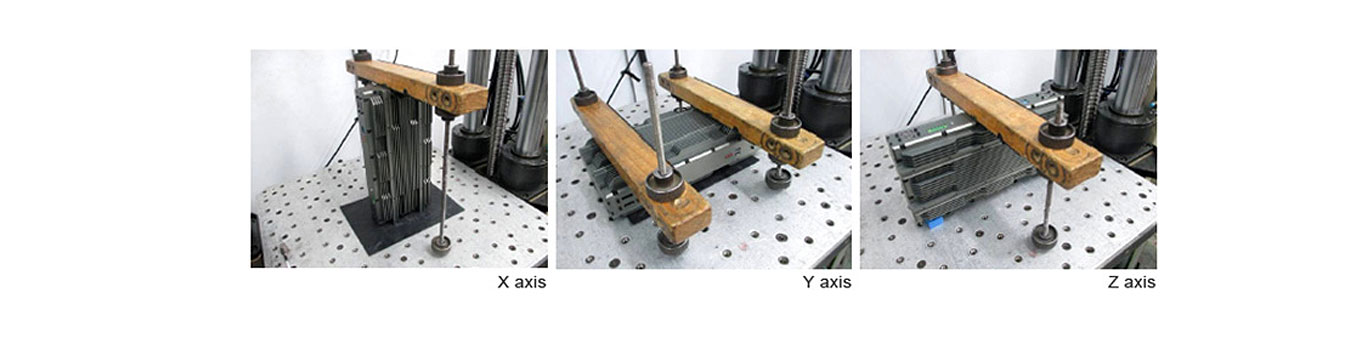

It is worth noting that NVIDIA graphic module is connected by PCIe/104 connector, instead of using PCIe x16. When stacking together, the PCIe/104 connector delivers exceeding solidity due to the four corner mounting holes and the three bank (156-pin). It removes the concern about loosen connection caused by shock & vibration. Combining critical components soldering onboard and solid PCIe/104 connection, it is also compliant to MIL-STD 810G standard, can withstand 5g vibration, 100g single shocks and 50g multiple shocks. SR200 is a perfect portable solution for rugged consoles & workstations, transportation, defense control room applications.

Less Is More – design flexibility beats up conventionality

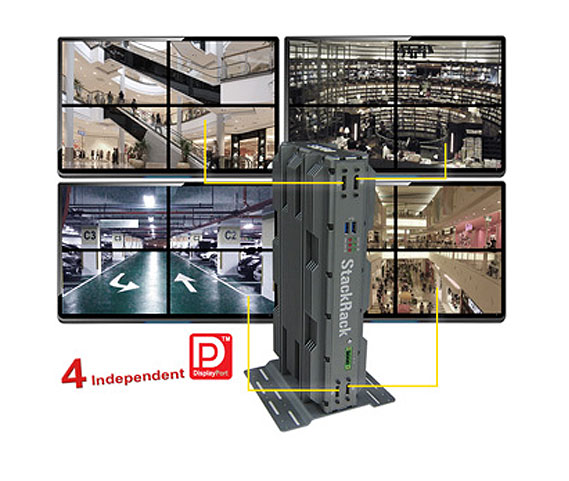

The unique layout always creates eye-catching focal points in public. SR200 itself supports 4 independent DisplayPort, including up to three Full HD 1080P resolutions which allow a single desktop to scale the wall and multiple screens to be displayed and configured on the wall. STACKRACK is now advocating a fascinating new aesthetic perception "Less is more". With PCIe/104 connector, SR200 is able to achieve slim size despite of the add-on graphic module. he crucial point of slim size lies in PCIe/104 connector is specifically designed with a 15.24 mm stack height for top and bottom board stacking that allows nearly seamless connecting. It breaks the stereotype that can only apply cumbersome 4U rackmount with expansion slots in large-scale video wall application.

With the feature of 4 independent DisplayPort, can add to the ease of installation of video walls and expand the range of applications. The appeal of SR200 lies in its ability to provide creativity, scalability and logistics. It can flexibly match up different space allocation, no matter put in cabinet, machine room or even retailing window display. Combining above synergies, SR200 is suitable for hospitality industry, educational institution, dynamic architectural design and broadcast vehicle.

Navigation Through Big Data – Visualize massive data on big screen

Leading corporations, large-scale companies, government and official authorities highly rely on control room solutions to investigate the entire networking, identify the issues and come out an in-time solution to the problems. Real-time information system has no doubt a critical component to win a foothold in this fast-moving society. Now, STACKRACK offers a new industry standard for control rooms and operations centers, allowing those in areas such as public utilities, public services, security and surveillance, transportation and telecommunications to confidently make faster and more accurate decisions through a single robust system, even in the most challenging of environments.

Main Features:

• Intel® 4th Gen. Haswell Core™ i7-4700EQ on board (4Cores x 2.4 GHz- 47W )
• NVIDIA GT730M GPU (CUDA 384) independent displays by 4 x DP
• DDR3 XR-DIMM up to 8 GB RAM
• Onboard SATAIII NAND Drive 64 GB
• 2 x Intel® Gigabit Ethernet
• 4 x USB 3.0, 1 x RS232/422/485 COM
• Extended temperature -40~75°C
• +9V~36V DC-in with power delay on/off
