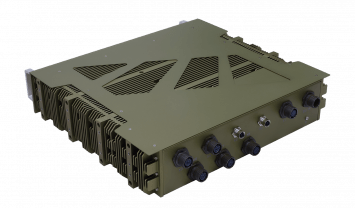

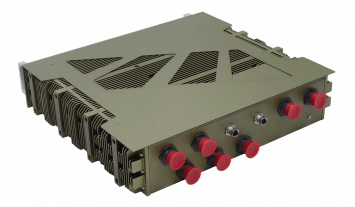

HORUS430

Environment

-MIL-STD- 461 /1275 wide range 18-36V DC power module

-MIL-STD-810, 461, 1275 compliant

-Operates up to extended temp -20°C to +55°C

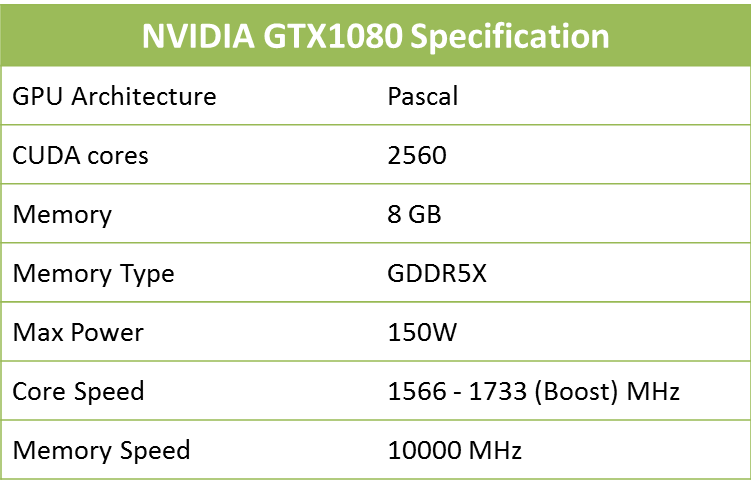

HORUS430 is installed with graphics card NVIDIA GTX1080 (CUDA 2560,8 GB GDDR5X) , allowing generate excellent resolution and supports high efficiency and fluency of image processing with competitive G3D Mark and low power consumption. The GPGPU provides a simple and easily implementable parallel software architecture paradigm using general purpose programming languages like C / C++. The entire data / signal processing task can be realized as a sequence of software activities taking the advantage of very high throughput possible with the GPUs. The system possess great superiority for image computing utilization, including 2D/3D mapping and real-time image process for autonomous vehicle, surveillance system for control room, other navigation, radar, detection, sensor and laser systems on all maritime, ground, and aerial applications in both defense and industrial fields.

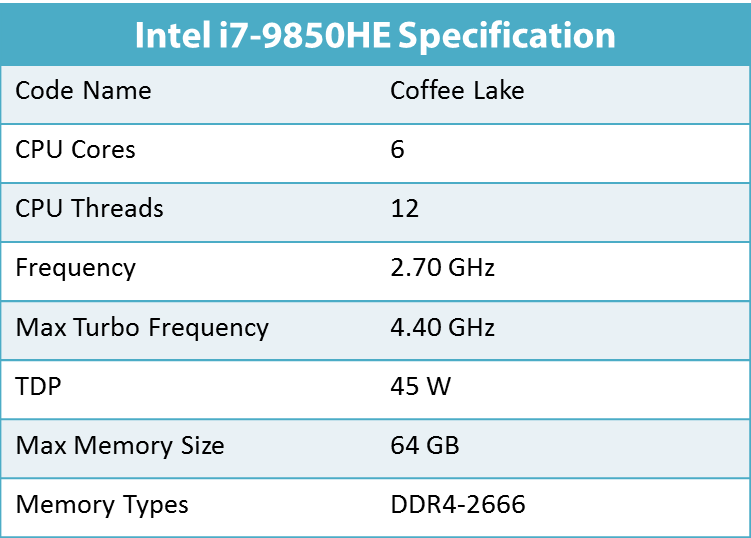

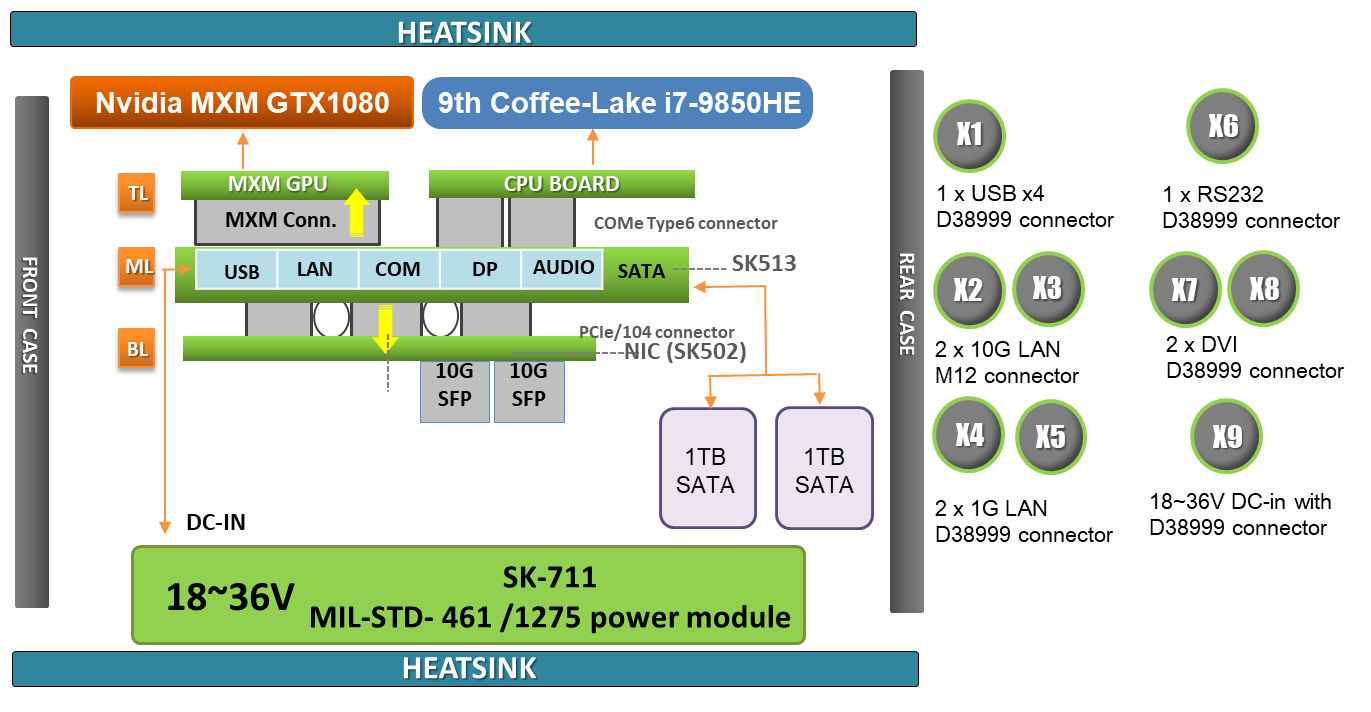

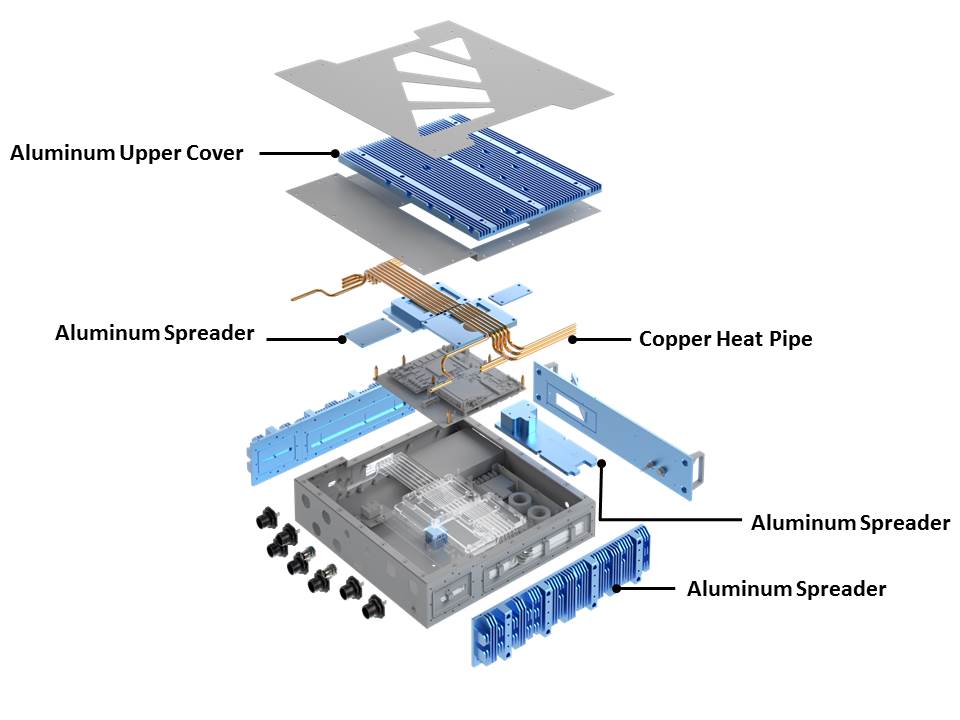

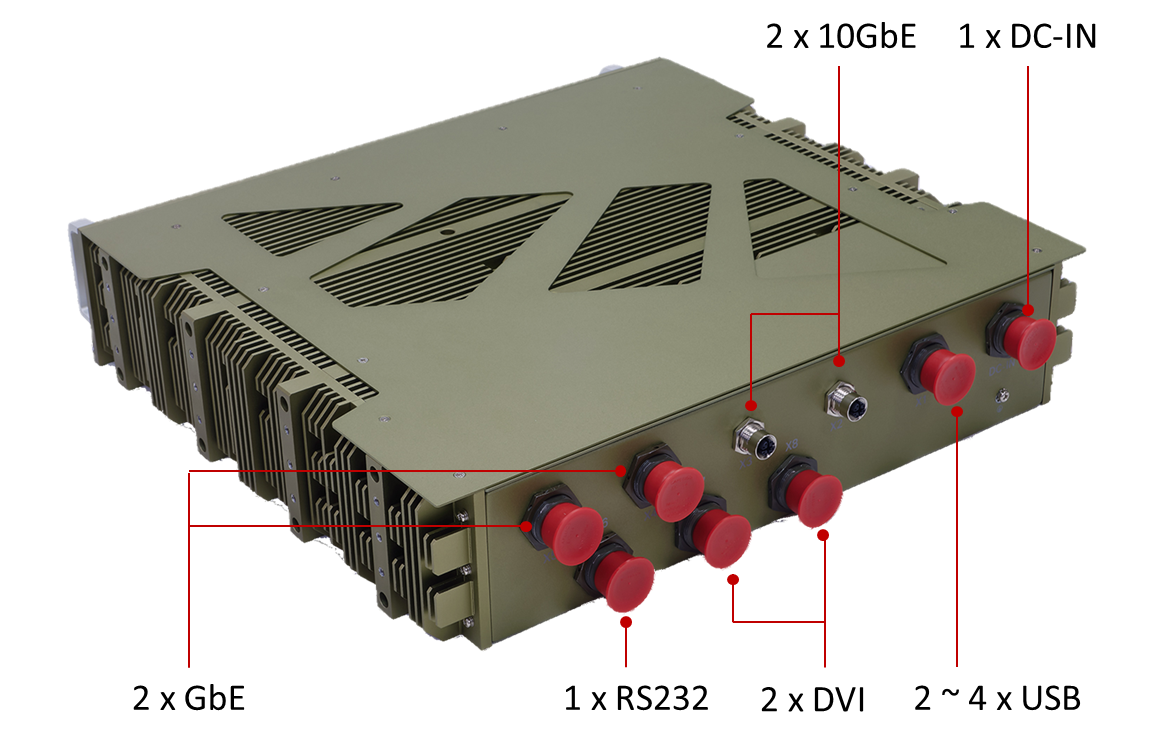

HORUS430, Intel® Core™ i7-9850HE Processor, the 8-Core CPU, supports 1.8 GHz, up to 3.8 GHz clock speed for high-end computing performance. Not only with outstanding CPU performance, HORUS430 has integrated graphics card NVIDIA®Quadro P5000 (CUDA2560,16GB-GDDR5X)to apply all sort of applications. HORUS430 has provided rich I/O such as 4 x LAN, 4 x USB, 2 x DVI. HORUS430 is highlighting on rugged design and high functionality, the special dual thermal solution allows powerful system to present supreme performance under harsh environment. HORUS430 is design to withstand the most challenging combat requirements with many being MIL-STD 810G certified for extreme environmental conditions. HORUS430 GPGPU platform are used by the most demanding customers including the US Military, NATO forces and among many others.

HORUS430 meets MIL-STD-810G for mechanical shock and vibration, it is designed and tested to withstand extended extended temperature (-20° to +55°C). Combining critical components soldering on board and solid connection, HORUS430 is compliant to MIL-STD 810G standard, can withstand 5g vibration, 100g single shocks and 50g multiple shocks.

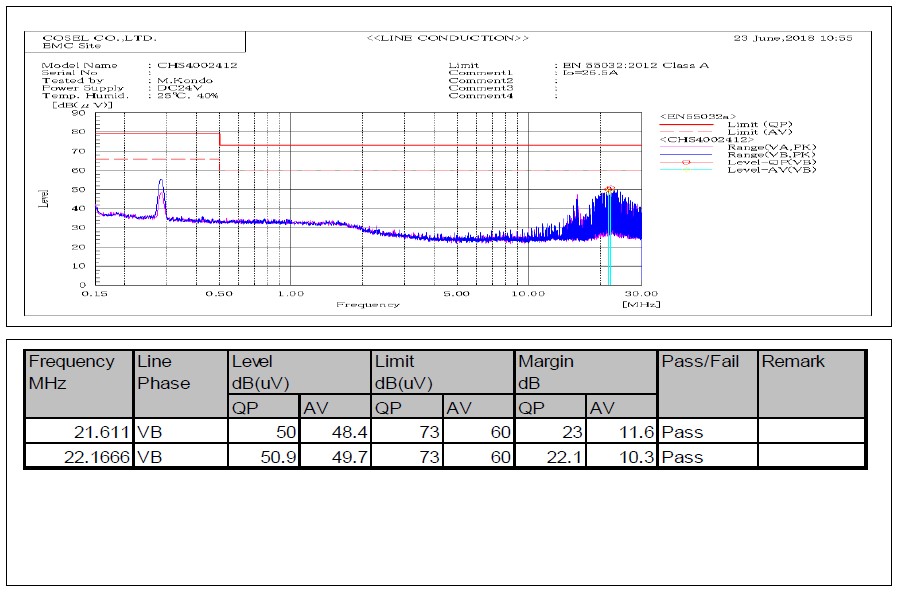

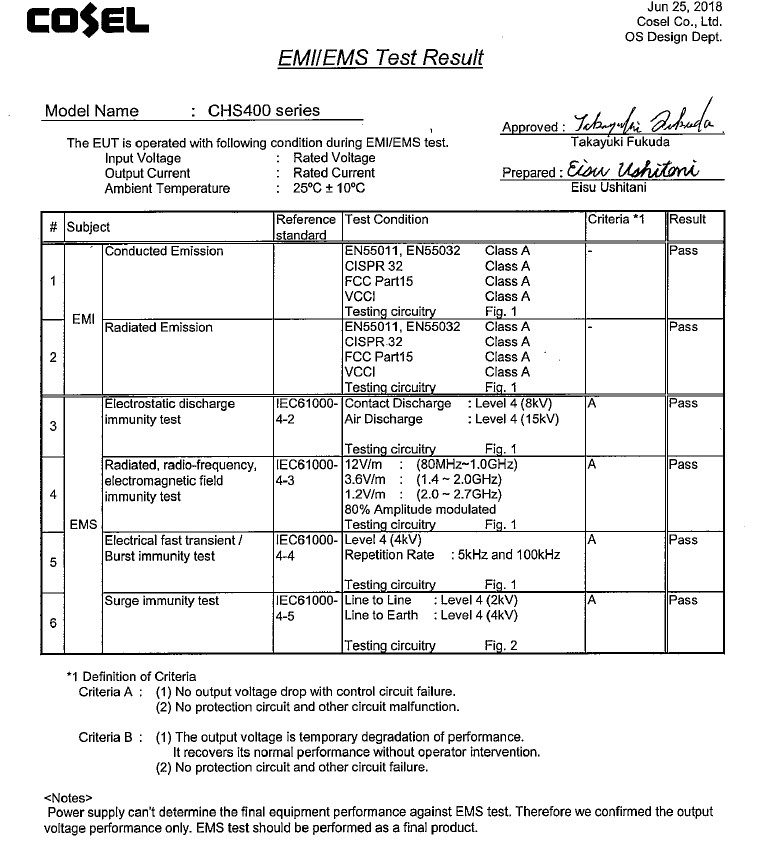

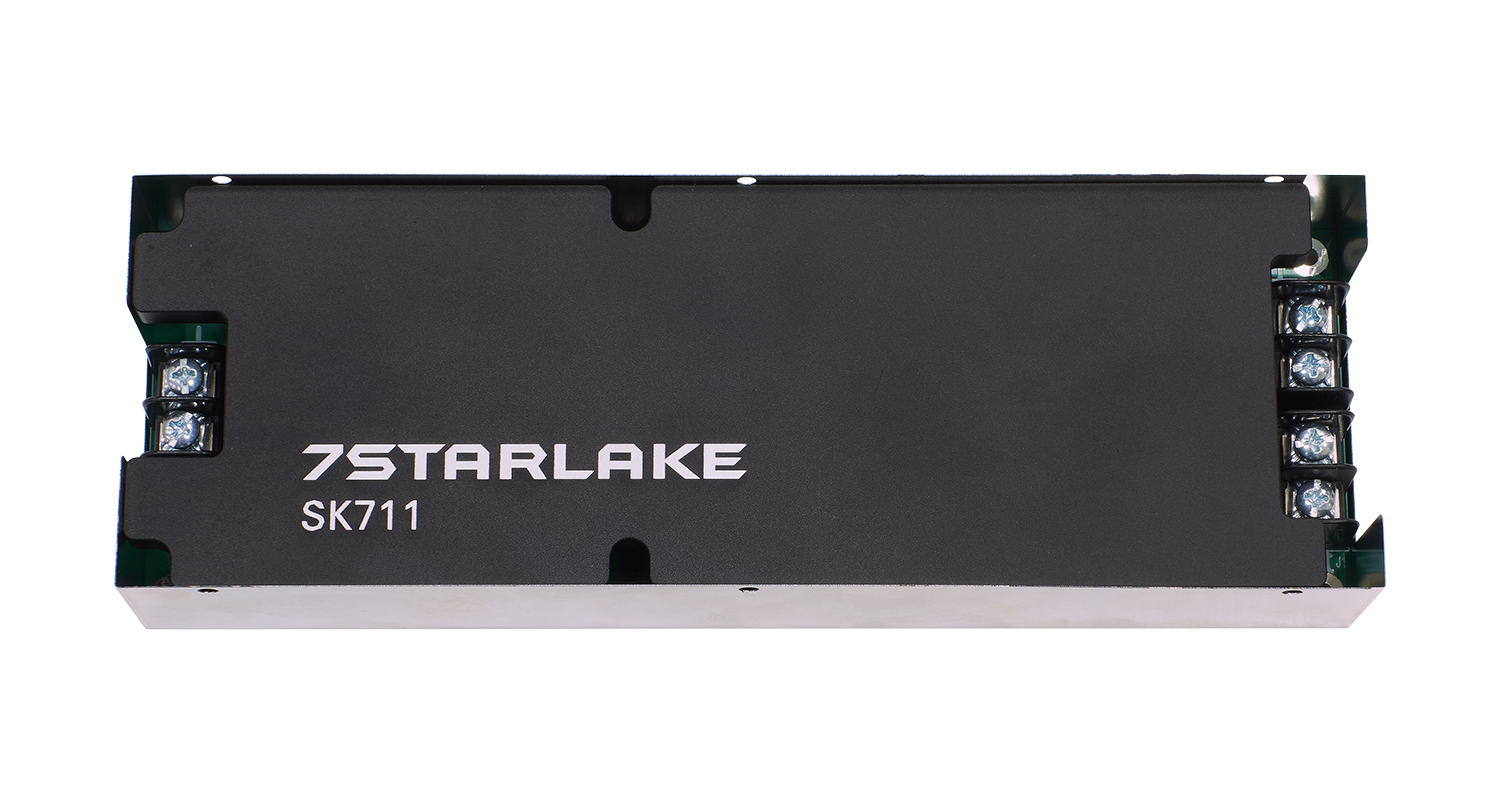

SK711 is a wide input board type converter supporting input range from 18V to 36V. Possessing military standard filter for EMI avoidance, SK711 guarantees the stability of voltage and electric current for system operation, especially suitable for application in military or other harsh environment. Furthermore, with parallel design, two SK711 can be combined for double power of 300W, supporting prominent system performance. Compliant with MIL-STD 1275/461,  extended operating temperature from -40 to 85°C, SK711 performs as an ideal converter module for severe environmental usage. The Cosel Hi-Rel DC/DC CONVERTER it also provides , Output Over Current Protection (OCP), Output Overvoltage Protection (OVP) and Over Temperature Protection (OTP) to made stability and safety.
