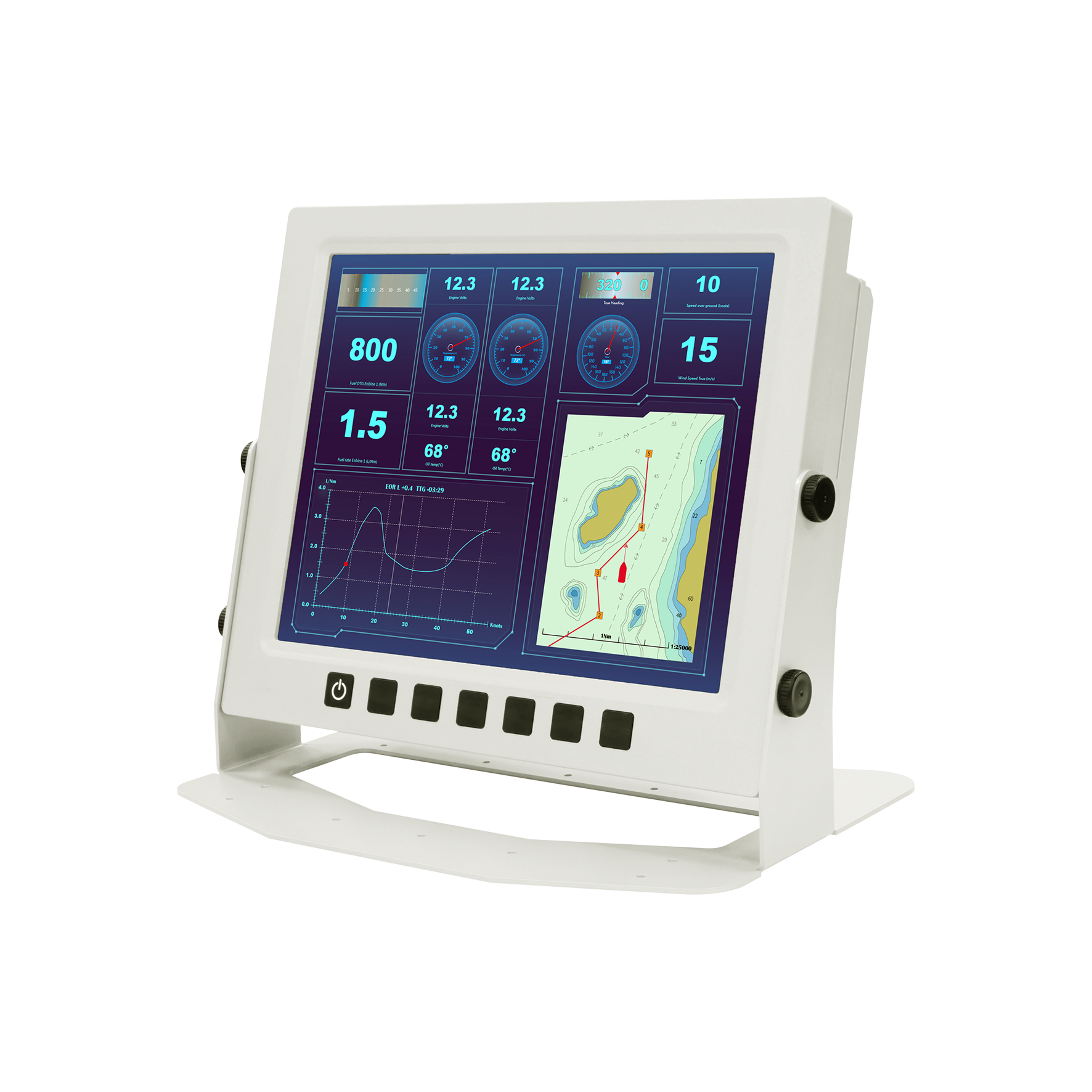

CLOUD12-P04 Rugged Panel Computer with 4 Function Keys

Introduction

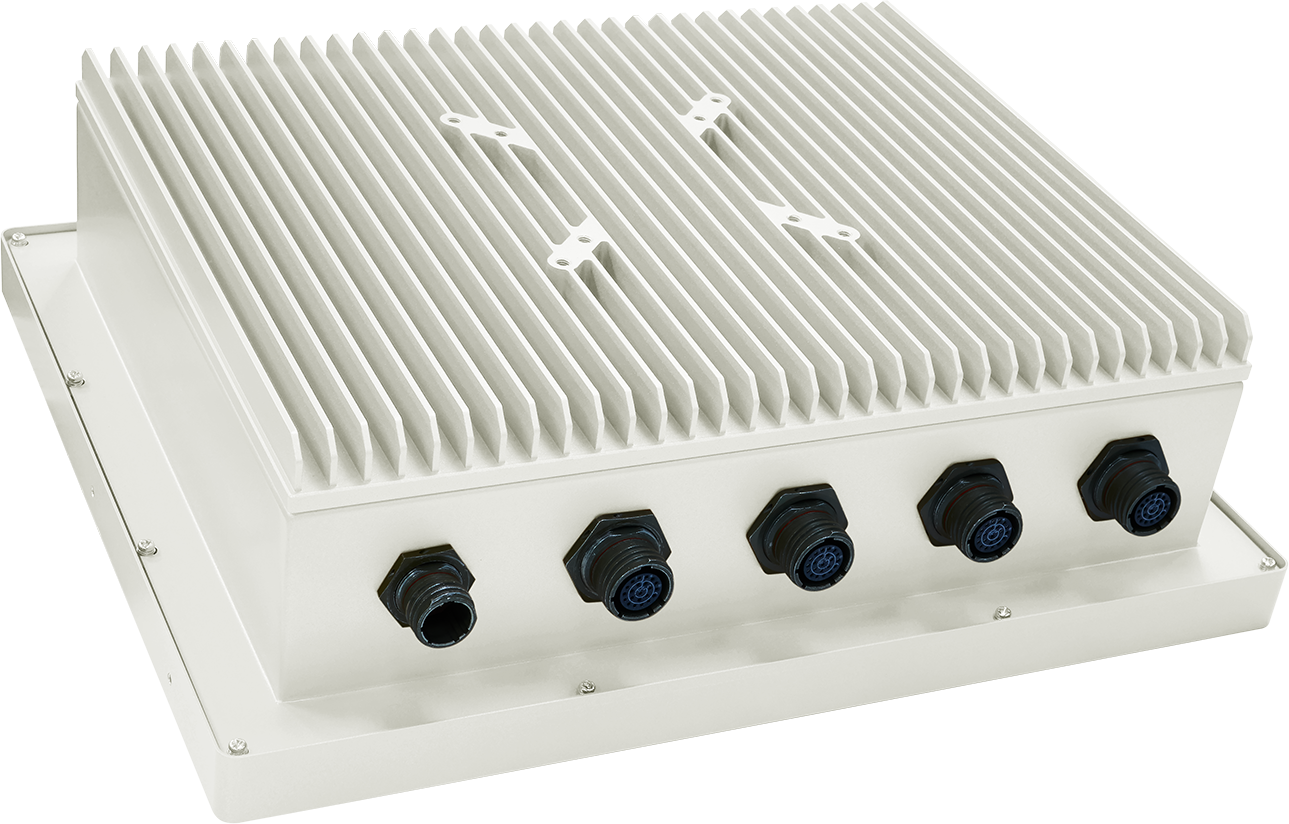

7STARLAKE Cloud12-P06 rugged mission-critical panel computer, retaining exceptional features of SKY12-P20, with LCD super brightness up to 1000 nits and night vision (NVIS) under 1.7 nits, optical bonding of protective glass (GFG) touch screens, EMI filtering / EMI mesh shielding, and anti-reflection/anti-glare (AR/AG) coatings, possess also built-in CPU module OXY5362A. The rugged panel computer is designed with IP-65 waterproof and dust proof all-aluminum housings, supporting extended operating temperature range from -30 to 65°C and flexibly support extended DC power input range from 16V to 50V.

Compact Core I-based C4ISR rugged system

Driven by Intel® Kabylake-U SoC 14nm Core™ i7/i5/i3 BGA Type processor soldering onboard, providing dual cores 3.2GHz clock speed while consuming low power consumption 9.5W. With outstanding CPU and graphic performance supported by Kabylake-U processor, plus OXY5362A's possible extra function installation such as CAN BUS module and video capture card, Cloud12-P06 is launched as a competitive panel computer for C4ISR application. 7STARLAKE CLOUD12 is an ideal solution for both land and naval battle. Through multi-connection with calculate computer, sensor, and control system, receiving information from image processing computer connecting with surveillance devices, Cloud12-P06 brings its superiority into full play on surveillance and critical mission assistance.

Unique Features

Super Brightness 1000 nits & Night Vision under 1.7 nits

7STARLAKE Cloud12-P06 ruggedized panel computer equipped dual LED backlight control systems, can support sunlight readable high bright and exceptional low nits readable with night vision goggles. By switching the hardware key, the operator can select standard mode or night vision mode in case of misuse and damage night vision optical devices.

MIL-STD 810G, MIL-STD 461F and Full IP65 level protection

Cloud12-P06 as a military rugged display has the following compliance of MIL-STD-810 standard for shocks, vibration, humidity, high / low temperature and temperature shock; and MIL-STD-461 standard for EMI and EMC, for size, weight, and power.



MIL-STD-810 standard is a Military Standard established by United States Department of Defense considered the utmost principle for military ruggedness request. It provides a series of testing procedures for resistance to water proof, shock, vibration, dust, humidity, and extreme temperatures and Cloud12-P06 is designed to comply to the series of tests concerning on sustainable in such harsh environment.



Since Cloud12-P06 is designed and tested to be used in Military applications requiring, 7STARLAKE's mechanical design not only provides enhanced shock and vibration resistance for optimum operability in harsh military conditions, the ability for configure with EMI mesh is also essential. MIL-STD-461F is a requirement for the control of electromagnetic interference characteristics of subsystems and equipment. The power solution of Cloud12-P06 input EMI filter that enables compliance with MIL-STD-461F for applications requiring MIL-STD-461F certification.



7STARLAKE offers rugged panel computer sealed to the IP65 level for water and dust protection. Cloud12-P06 is designed to ensure complete harsh environment protection, ideal for wet and dusty conditions. Based on the above points, Cloud12-P06 has complete resistance to dust and water; which is ruggedized and reliable for constrained military, ground army, defense, air traffic management and air traffic control applications.



6 ruggedized function keys design

7STARLAKE ruggedized mission displays equipped up to 6 ruggedized function keys by rubber-tooling made, each key pad dimension at 16 x 16 mm even the operator access function keys with wearing MOPP levels gloves.

Wide voltage power DC input 16-50V

Wide voltage power input design from 16-50V can protect the system from damages caused by sudden surge of voltage, so secure further reliability of its critical components. The Cloud12-P06 is a complete operating condition over an input voltage range of 16V to 50V. It possesses load dump and transient protected power input, allowing direct connection to external power.
