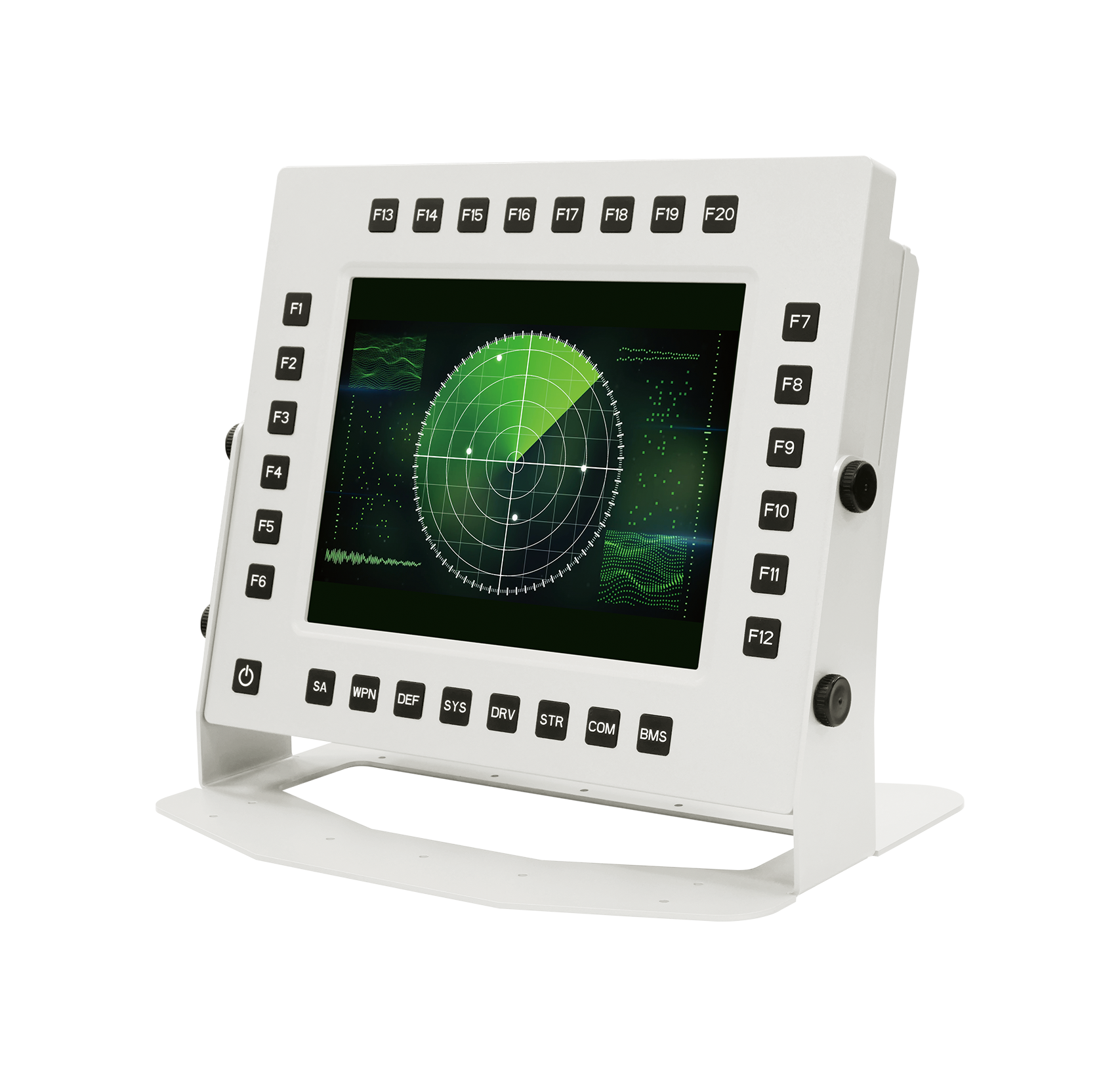

Cloud12 -P28 Rugged Panel Computer with 28 Programmable Function Keys

 Introduction

STACKRACK offers Cloud12, a ruggedized mission critical panel computer, which can be integrated with different types of sensors: High resolution Wide-angle video camera, Forward and Rear looking infrared camera, Crosswind sensor…etc. Despite camera and video distribution system running from day to night, 24hrs, Cloud12 is able to handle with heavy data transmission under high temperature environment while maintaining high-computing performance. For Intel® Xeon E3-1505L V5 processor, it can run full speed without throttling up to 40oC. Also, we adopt NVIDIA Geforce GTX1050 graphic card that performs remarkable image processing and visual displays. To simultaneously connect, receive, and process information efficiently, a computer with CPUGPU structure is needed. Cloud12 can be applied in both land vehicles and naval vessels. It supports soldiers and operators to take immediate and accurate action in every mission, meeting the requirement of situational awareness in real time.

Unique Features

MIL-STD-461

MIL-STD-461 is a military standard that establishes electromagnetic interference (EMI) limits and test procedures for military equipment. EMI consists of any undesired signals, “noise”, generated by electronic equipment. Keeping EMI under control is critical for military applications. It can cause interference with other equipment and be detected by the enemy.

Super Brightness 1000nits

Under direct, bright sunlight, it has a great chance that screen looks washed out or becomes invisible. Operators cannot read information easily, losing the capability of situational awareness. What’s worse is that commander will be misguided by wrong interpretation, resulting in harmful decision making. To avoid the risk, Cloud12 features a far greater number of LED backlights than standard monitors to increase the screen brightness to 1,000 nits (cd/m²).

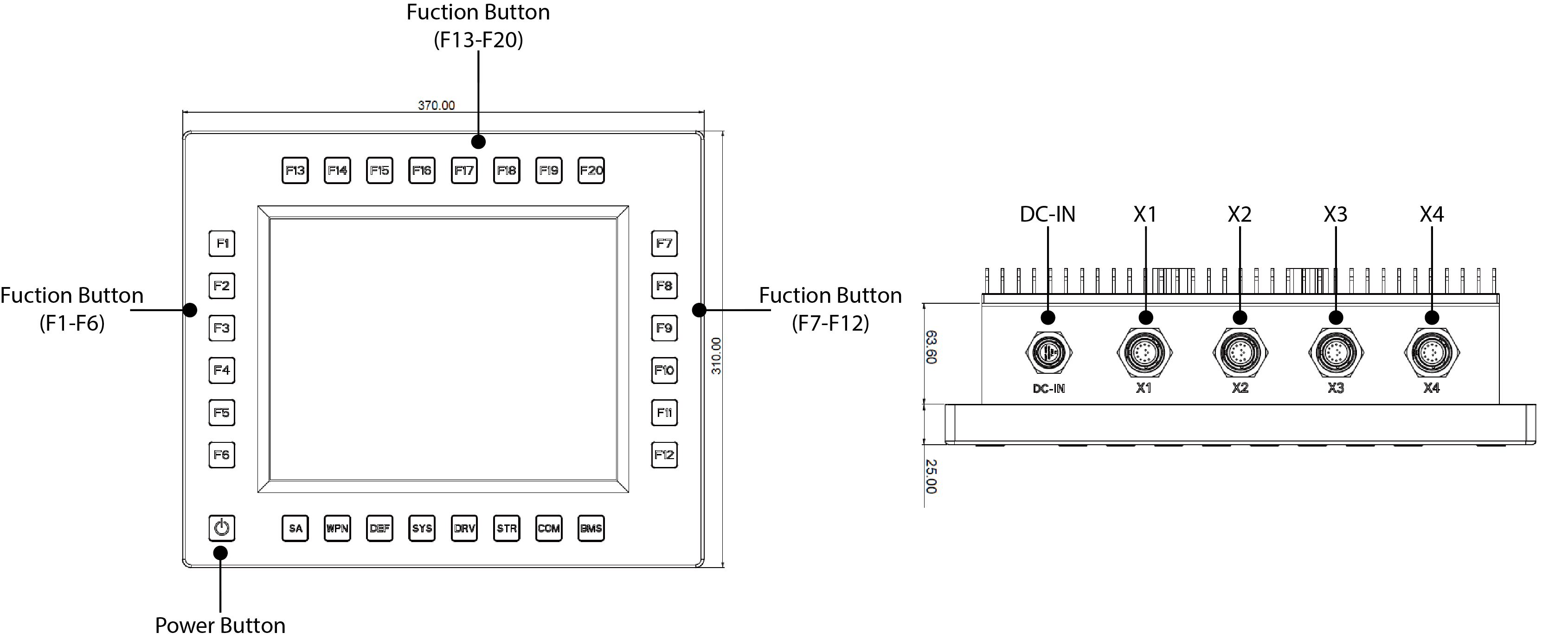

28 multi-function programmable keys

A programmable function key is capable of being programmed to perform a specific task. These specialty keyboards require extra software that enables these keys to be programmed. Cloud12 is equipped with up to 28 ruggedized function keys made by rubber-tooling and with dimension 16 x 16 mm for each key ad, allowing multiple and flexible utility for users. Regardless the application in navigation or surveillance of marine, aviation and military ground vehicle, the programmable function keys are believed to provide convenient and efficient user surface under quick pace of critical battle mission.
