CLOUD15-P20 GVA Compliance Rugged Panel Computer with Programmable Function Keys

GVA Compliance Rugged Panel Computer with Programmable Function Keys

GVA Compliance Rugged Panel Computer with Intel®Xeon E-2276ML , GTX1650, DTL-38999 , MIL-461/1275

  • Intel® Xeon E3-1505L/E-2276ML  ; Nvidia GTX1650
  • Up to DDR4-64GB
  • Sunlight Readable  1400 Nits
  • NVIS Mode Support Dimmable < 1%  Nits
  • 15" Colorful LCD XGA resolution
  • Optical Bonding G.F.G Resistive Touch
  • Conduction Cooled Technology
  • Extended Temperature -40~+65 Degree

Optional Features

  • IR Touch
  • EMI Mesh
  • Intelligent Heater
  • Waterproof Value
  • EMI Shielding Cable Kits
  • Technical Profile
  • Specifications
  • CPU Performance

 Introduction

 Cloud15-P20 rugged mission-critical panel computer, retaining exceptional features of SKY15-P20, with LCD super brightness up to 1400 nits and night vision (NVIS) under 1 nits, optical bonding of protective glass (GFG) touch screens, EMI filtering / EMI mesh shielding, and anti-reflection/anti-glare (AR/AG) coatings, possess also built-in CPU module w/ Intel Xeon E3-1505L v5 is a 64-bit quad-core x86 high-end quad-core processor and 20  programmable function keys. The rugged panel computer is designed with IP-65 waterproof and dust proof all-aluminum housings, supporting extended operating temperature range from -30 to 65°C and flexibly support extended DC power input range from 18V to 36V.

Compact Core I-based C4ISR rugged system

Driven by Intel® Xeon E3-1505L V5 Processor (4C x 2/2.8 GHz), 8M Cache (25W) soldering onboard,  with outstanding CPU and graphic performance supported by Xeon E3-1505L V5 processor, plus OXY5740A's possible extra function installation such as CAN BUS module and video capture card, Cloud15-P20 is launched as a competitive panel computer for C4ISR application. 7STARLAKE CLOUD15 is an ideal solution for both land and naval battle. Through multi-connection with calculate computer, sensor, and control system, receiving information from image processing computer connecting with surveillance devices, Cloud15-P20 brings its superiority into full play on surveillance and critical mission assistance.

Unique Features


Super Brightness 1400 nits & Night Vision under 1% nits

7STARLAKE Cloud15-P20 ruggedized panel computer equipped dual LED backlight control systems, can support sunlight readable high bright and exceptional low nits readable with night vision goggles. By switching the hardware key, the operator can select standard mode or night vision mode in case of misuse and damage night vision optical devices.

When system at standard mode, the operator can adjust brightness remotely by software or locally by hardware key to turn it to brighter or darker, but once the operator switch it to night vision mode, the display brightness down to default 1 %  nits or other customized night vision mode immediately, the brightness adjustment key functionality locked automatically, and the display gets ready at low brightness right away once its trigger and protect the usage of night vision devices at once.

MIL-STD 810G, MIL-STD 461F and Full IP65 level protection

Cloud15 -P20 as a military rugged display has the following compliance of MIL-STD-810 standard for shocks, vibration, humidity, high / low temperature and temperature shock; and MIL-STD-461 standard for EMI and EMC, for size, weight, and power.

MIL-STD-810 standard is a Military Standard established by United States Department of Defense considered the utmost principle for military ruggedness request. It provides a series of testing procedures for resistance to water proof, shock, vibration, dust, humidity, and extreme temperatures and Cloud15 -P20 is designed to comply to the series of tests concerning on sustainable in such harsh environment.

Since Cloud15 -P20 is designed and tested to be used in Military applications requiring, 7STARLAKE's mechanical design not only provides enhanced shock and vibration resistance for optimum operability in harsh military conditions, the ability for configure with EMI mesh is also essential. MIL-STD-461F is a requirement for the control of electromagnetic interference characteristics of subsystems and equipment. The power solution of Cloud15 -P20 input EMI filter that enables compliance with MIL-STD-461F for applications requiring MIL-STD-461F certification.

7STARLAKE offers rugged panel computer sealed to the IP65 level for water and dust protection. Cloud15-P20 is designed to ensure complete harsh environment protection, ideal for wet and dusty conditions. Based on the above points, Cloud15 -P20 has complete resistance to dust and water; which is ruggedized and reliable for constrained military, ground army, defense, air traffic management and air traffic control applications.

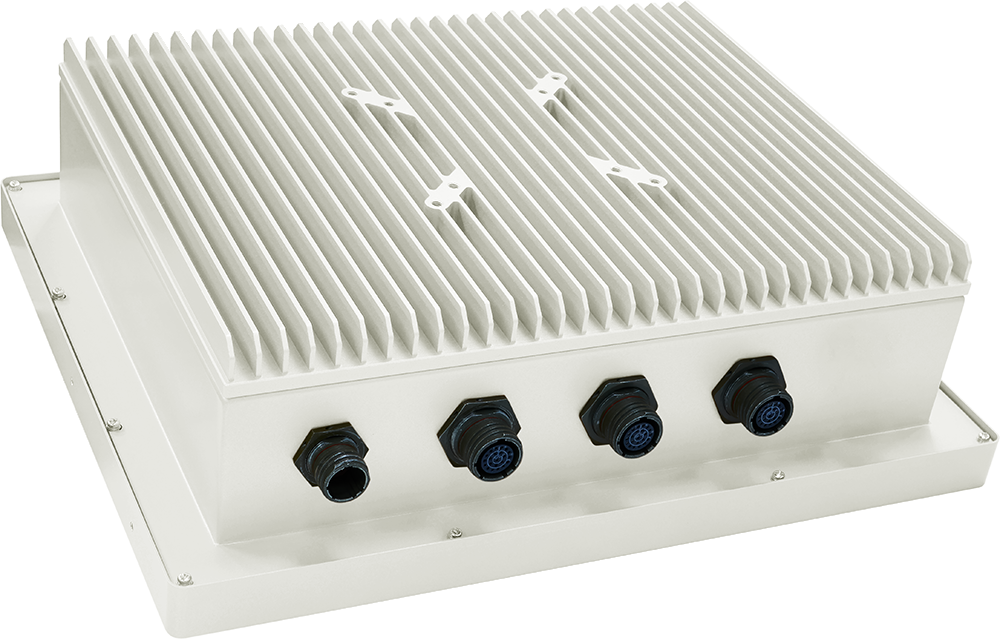

Sky Series_back_3.png

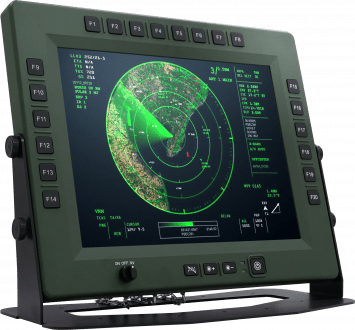

20 Programmable ruggedized function keys design

7STARLAKE ruggedized mission displays equipped up to 20 ruggedized function keys by rubber-tooling made, each key pad dimension at 16 x 16 mm even the operator access function keys with wearing MOPP levels gloves.

MIL-461/1275 EMI Filter

CLOUD15-P20 is designed with MIL-STD-1275/704, protecting against vehicle/aircrafts voltage surges, spikes and transients, and even electromagnetic interference. This characteristic is well suited for the strictest military requirement and deliver optimal performance in harsh conditions.



Intel Xeon E3-1505L v5

The Intel Xeon E3-1505L v5 is a 64-bit quad-core x86 high-end quad-core processor. It's part of the Skylake Xeon series. In addition to four CPU cores with Hyper-Threading clocked at 2.0 - 2.8 GHz, the chip also integrates an HD Graphics P530 GPU and a dual-channel DDR4-2133/DDR3L-1600 memory controller. The CPU is manufactured using a 14 nm process with FinFET transistors. The most important difference of the Xeon series compared to consumer models like the Core i7-6920HQ is the support for additional management and security features such as ECC memory.

NVIDIA GeForce GTX 1050:

The Nvidia GTX 1050 is a mainstream GPU based on the Pascal architecture. Contrary to the faster models, the GTX 1050 uses the GP107 chip, which is manufactured in a 14 nm process at Samsung. It is shipped with up to 4 GB GDDR5-VRAM attached via 128-bit interface and a 7 Gbps memory data rate (112 GB/s).






15” TFT LCD Display & Resistor Touch screen

Resolution

1024x768 XGA

Brightness

1000 nits (up to 1400 Nits)

Aspect Ratio

4:3

Contrast Ratio

900

Touch Panel

Glass-Film-Glass 5-Wire resistor touch panel (Optional)

System SPEC

CPU

Intel® Xeon E3-1505L V5 Processor (4C x 2/2.8 GHz), 8M Cache (25W)

Memory type

2 x DDR4 up to 32GB ECC memory

Storage

1 x mSATA Solid State Disk (SSD) - up to 512GB Capacity

1 x 2.5'' SSD up to 2TB

Rugged Industrial NAND Flash Storage -40 to 85oC High Capacity

Triple Mode

Day Mode: Ultra-Brightness 1000 nits;

Night Mode: NVIS (Down to 1.7 Nits)

Invisible Mode: Backlight off

OSD

Backlight+

Backlight-

Function key backlight On/Off

Function Keys

Programmable Function Keys (F1~F20)

DC-IN

18V ~ 36 V, 28Vdc

Optional: 12V~40V DC-IN (150W max) MIL-STD-461, MIL-STD-1275,

Connectors

DC-IN

Amphenol TV07RW-11-54P

IO Ports

X1:VGA+Audio (Amphenol TV07RW-13-35S);

X2:DVI (Amphenol TV07RW-13-35S);

X3:2xUSB (Amphenol TV07RW-13-98S)

Applications

Applications

Marine, Naval, Ground and Airborne environment.

Physical

Dimension

412 x 110 x 336mm

Finish

Anodic aluminum oxide

Chassis

Aluminum Alloy, Corrosion Resistant.

Ingress Protection

IP65 Dust /water Proof

MIL Compliance

MIL-STD-810G (Operation Test)

Low Temp.

Method 502.5 Procedure 2

Exposure(24h x 3 cycle) at -10℃ min.

High Temp.

Method 501.5 Procedure 2

60ºC for 2 hrs after temperature stabilization.

Humidity

Method 507.5 Procedure 2

RH -95%. Test cycles: ten 24-hrs , functional test after 5th and 10th cycles

Vibration

Method 514.6 Category 20

10-500Hz 1.04Grms Test duration: 1 hr x 3 axis (total 3 hrs)

Shock

Method 516.6 Procedure 1

20G, 11mSec, 3 per axis

MIL-STD-810G (Non-Operating Tests)

Low Temp.

Method 502.5

Exposure(24h x 7 cycle) at -20℃ min.

High Temp.

Method 501.5 Procedure 1

71ºC for 2 hrs after temperature stabilization.

Vibration

Method 514.6 Category 24

200 to 2000Hz Test duration: 1hr per axis; rms = 7.7 gs

Shock

Method 516.6 Procedure 1

20G, 11mSec, 3 per axis

MIL-STD-461E

CE102

Basic curve, 10kHz - 30 MHz

RE102-4, (1.5 MHz)

(1.5 MHz) -30 MHz - 5 GHz

RS103

1.5 MHz - 5 GHz, 50 V/m equal for all frequencies EN 61000-4-2: Air discharge: 8 kV,

Environmental Qualifications

Regulatory

CE , FCC Compliance

Operation Temp.

-40°C~65°C (ambient with air flow)

Storage Temp.

-40~+85 °C

Green Product

RoHS, WEEE compliance

NVIDIA GeForce GTX 1050:

The Nvidia GTX 1050 is a mainstream GPU based on the Pascal architecture. Contrary to the faster models, the GTX 1050 uses the GP107 chip, which is manufactured in a 14 nm process at Samsung. It is shipped with up to 4 GB GDDR5-VRAM attached via 128-bit interface and a 7 Gbps memory data rate (112 GB/s).

Highlight:

The GP107 chip is manufactured in a 14 nm FinFET process at Samsung and offers a number of new features, including support for DisplayPort 1.4 (ready), HDMI 2.0b, HDR, Simultaneous MultiProjection (SMP) as well as improved H.265 video de- and encoding (PlayReady 3.0). A full list of improvements and the new Pascal desktop GPUs is available in our dedicated Pascal architecture article.

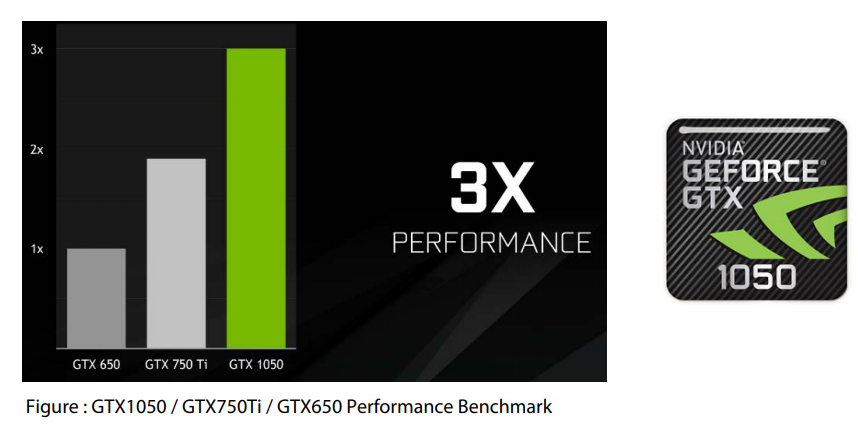

Performance:

The performance of the GeForce GTX 1050 can vary quite a lot depending on the cooling system. The GeForce GTX 960M is beaten by around 30%. It is therefore an upper mainstream GPU. Monitor can be displayed in high settings an the Full HD resolution.

Power Consumption:

The power consumption of the GeForce GTX 1050 is roughly on par with the old GTX 960M, which would mean around 40-50 Watts and (probably due to better selection and optimized parts) therefore much lower compared to the desktop counterpart.
