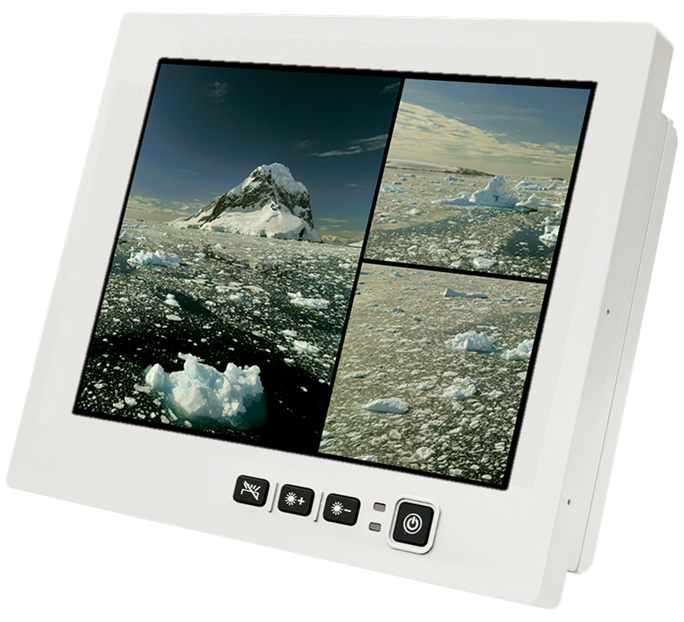

SKY12-P04- Defense Display with 4 Function keys

Sunlight Readable Defense Display with 4 Function Keys, MIL-461/1275 EMI Filter

  • IP65 Defense Display with DTL38999 Connectors
  • Sunlight Readable up to 1000 Nits
  • Dimmable Backlight down to 1% with Night Vision Mode Support
  • Optical Bounding with Anti-Scratch G.F.G. (Glass-Film-Glass)
  • 12.1” XGA TFT-LCD
  • DC 18V~36V, Options with 28 VDC MIL-461/1275 EMI Filter
  • -10 ~+70 Degree Extended Temperature
  • Technical Profile
  • Specifications
  • Thermal Solution

STACKRACK SKY12-P04 rugged mission panel displays which are featuring LCD super brightness up to 1000 nits and night vision (NVIS) under 1.7 nits, optical bonding of resistive touch screens, EMI filtering / EMI mesh shielding, anti-reflection/anti-glare (AR/AG) coatings, 4 function keys, the rugged panel displays also designed with IP-65 waterproof and dust proof all-aluminum housings, support extended operating temperature range from -10°C to 70°C and flexibly support extended DC power input range from 18V to 36V.

Unique Features

SKY12-P04

Super Brightness 1000 nits & Night Vision under 1.7 nits

STACKRACK SKY12-P04 ruggedized mission displays equipped dual LED backlight control systems can support sunlight readable high bright and exceptional low nits readable with night vision goggles. By switch the hardware key the operator can select standard mode or night vision mode in case of misuse and damage night vision optical devices.



When system at standard mode, the operator can adjust brightness remotely by software or locally by hardware key to turn it to brighter or darker, but once the operator switch it to night vision mode, the display brightness down to default 1.7 nits or other customized night vision mode immediately, the brightness adjustment key functionality locked automatically, and the display gets ready at low brightness right away once its trigger and protect the usage of night vision devices at once.



Anti-Scratch GFG (Glass Film Glass) Touch Screen

GFG touch screens are operable with fingers, pens and gloves. The glass surface makes the glass-film-glass

sensor very durable and scratch resistant. The same applies to aggressive fluids like blood, alkalis and acids.

This makes the GFG perfectly usable for rough military battlefield surroundings. Rough and dusty surroundings are no barriers for the GFG touch screen sensor. Dust and other hard particles can damage a plastic surface but the hard glass of the GFG is mostly resistant against scratches and even against flying sparks during welding operations.



MIL-STD 810G, MIL-STD 461F and Full IP65 level protection

SKY12-P04 as a military rugged display has the following compliance of MIL-STD-810 standard for shocks, vibration, humidity, high / low temperature and temperature shock; and MIL-STD-461 standard for EMI and EMC, for size, weight, and power.

MIL-STD-810 standard is a Military Standard established by United States Department of Defense considered the utmost principle for military ruggedness request. It provides a series of testing procedures for resistance to water proof, shock, vibration, dust, humidity, and extreme temperatures and Sky12-P04 is designed to comply to the series of tests concerning on sustainable in such harsh environment.

Since SKY12-P04 is designed and tested to be used in Military applications requiring, STACKRACK's mechanical design not only provides enhanced shock and vibration resistance for optimum operability in harsh military conditions, the ability for configure with EMI mesh is also essential. MIL-STD-461 is a requirement for the control of electromagnetic interference characteristics of subsystems and equipment. The power solution of SKY12-P04 input EMI filter that enables compliance with MIL-STD-461 for applications requiring MIL-STD-461 certification.

STACKRACK offers rugged display which sealed to the IP65 level for water and dust protection. SKY12-P04 is designed to ensure complete harsh environment protection, ideal for wet and dusty conditions. Based on the above points, SKY12-P04 has complete resistance to dust and water; which is ruggedized and reliable for constrained military, ground army, defense, air traffic management and air traffic control applications.

Sky Series_back



SKY12-P04

4 Function keys design

STACKRACK ruggedized mission displays equipped up to 4 ruggedized function keys by rubber-tooling made, each key pad dimension at 16 x 16 mm even the operator access function keys with wearing MOPP levels gloves.

4 function keys are capable to perform a specific task. Allowing multiple and flexible utility for users. Regardless the application in navigation or surveillance of marine, aviation and military ground vehicle, the programmable function keys are believed to provide convenient and efficient user surface under quick pace of critical battle mission.



Wide voltage power DC input 18V-36V

Wide voltage power input design from 18V-36V can protect the system from damages caused by sudden surge of voltage, so secure further reliability of its critical components. The SKY12-P04 display is a complete operating condition over an input voltage range of 18V to 36V. It have load dump and transient protected power input, allowing direct connection to external power.

Operating Temp.
-10°C~70°C (ambient with air flow)
System
Model SKY12-P04
LCD Panel 12.1" TFT LCD
Resolution 1024x768 XGA
Aspect Ratio 4:3
Brightness 1000 nits
Max. Colors 16.7M/262k
Viewing Angle 80° (H) /70° (V)
Response Time 11ms (TYP.)
Contrast Ratio 1000 (TYP.)
Touch Panel Glass-Film-Glass 5-Wire resistor touch panel
Function key 4 Function keys
Display Control Power On/Off
LCD Brightness +/-
Function key backlight On/Off
Display mode Select (On/Off/Night Vision)
Power
DC-In 18V to 36V
Rear I/O
VGA + Audio 1 x MIL-38999 22Pin connector (Amphenol TV07RW-13-35S)
USB 2 x MIL-38999 10Pin connector (Amphenol TV07RW-13-98S)
DC-IN 1 x MIL-38999 4Pin connector (Amphenol TV06RW-11-54S)
Mechanical and Environment
Power Requirement 18V to 36V DC-in
Dimension 370 x 80 x 310mm (w/o Stand)
Weight TBD
Operating Temp. -10°C~70°C (ambient with air flow)
Storage Temp. -40°C~85°C
Relative Humidity 10% to 95%, non-condensing
Certifications
EMC CE, FCC Class A
Military MIL-STD-810, MIL-STD-1275, MIL-SD-461 Compliant

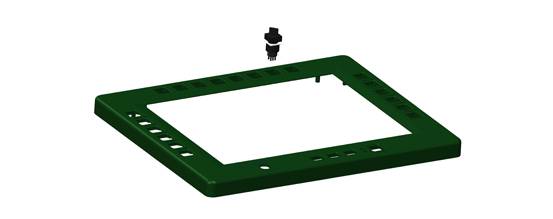

NEW_STYLE_products_Sky15_System01

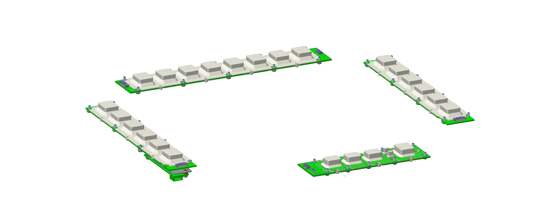

NEW_STYLE_products_Sky15_System02

6 Programmable function keys

STACKRACK ruggedized mission displays equipped up to 6 ruggedized function keys by rubber-tooling made, each key pad dimension at 16 x 16 mm even the operator access function keys with wearing MOPP levels gloves.

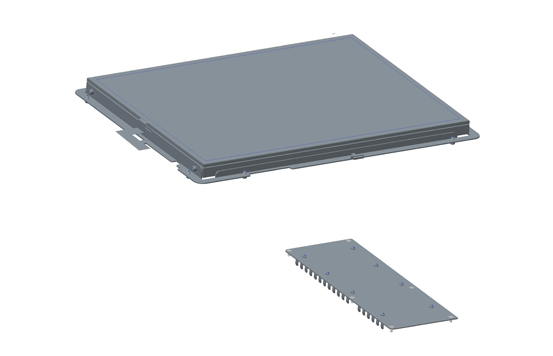

NEW_STYLE_products_Sky15_System03

Optical bonding

Sky12-X1 adopts optical bonding with protective glass (GFG), it can offer surface light reflection and panel reflection losses lower than 3% which enhance its readability where installed in high humidity outdoor environments.

Heater

Monitor usually challenges in extended temperature operation, Sky12-P06 especially implements heater in the system that allow Sky12-P06 can operate smoothly under temperature-20 degree for critical environment application.

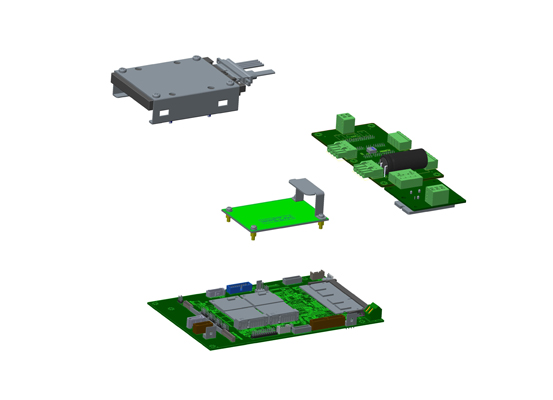

NEW_STYLE_products_Sky15_System04

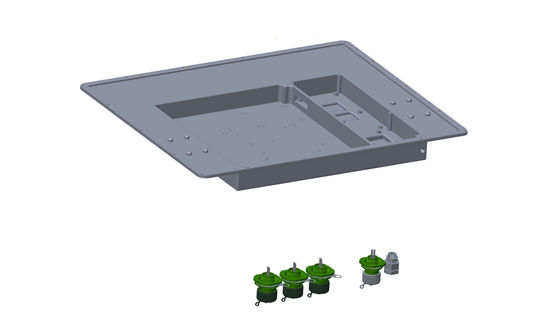

NEW_STYLE_products_Sky15_System05

MIL-461F power solution

In order to meet military grades, Sky12-P06 equips EMI filter power solution that enables to meet MIL-STD-461F standard for harsh environment demand.
