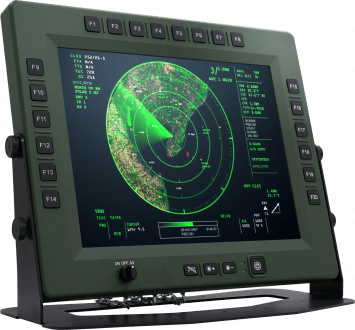

SKY15-P20 Military Display with 20 Programmable Function Keys

SKY15-P20 Military Display with 20 Programmable Function Keys

MIL-STD-810G Rugged Mission Display with MIL-DTL-38999 connectors

  • 20 Programmable function keys
  • Sunlight readable up to 1400 Nits
  • Dimmable Backlight to 1%
  • Night Vision Function Keys
  • Anti-Scratch GFG (Glass-Film-Glass) touch screen
  • 15” XGA TFT-LCD
  • 18V~36V DC-IN (Optional 12~40V ) , MIL-461/1275 compliance
  • All-aluminum housing & Convection Cooling
  • IR Touch (by option)
  • EMI Mesh (by option)
Download
Datasheet
Get A Quote
  • Technical Profile
  • Specifications
  • Thermal Solution

Introduction

7STARLAKE SKY15-P20 rugged mission panel displays which are featuring LCD super brightness up to 1400 nits and night vision (NVIS) under 1% nits, optical bonding of protective glass (GFG), touch screens, EMI filtering / EMI mesh shielding, anti-reflection/anti-glare (AR/AG) coatings, the rugged panel displays also designed with IP-65 waterproof and dust proof all-aluminum housings, support extended operating temperature range from -20°C to 60°C and flexibly support extended DC power input range from 18V to 36V.

2

Unique Features

2

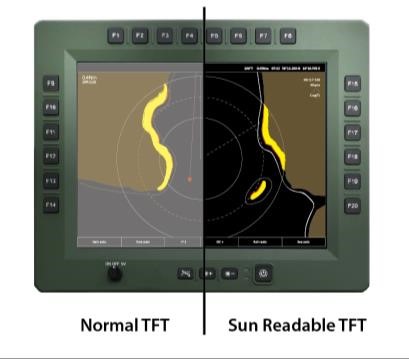

(1) Sunlight Readable up to 1400 Nits

SKY15-P20 ruggedized smart display can support sunlight-readable to meet high ambient light conditions such as direct sunlight, it also adopt our excellent optic bonding technical process, when bonded together the light passes through the bonded layers and is absorbed somewhat into the screen. Optical bonding is therefore important in making screens sunlight readable.

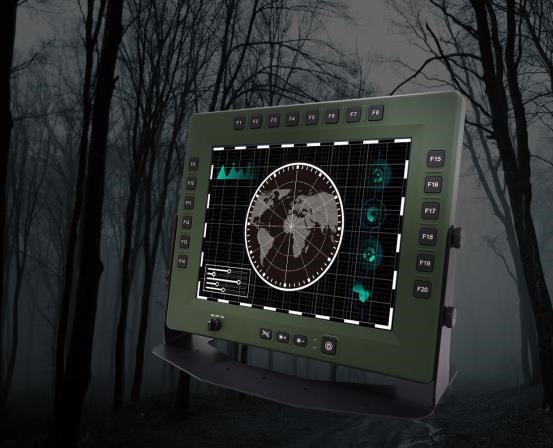

(2) Night Vision Mode Support

When system at night mode, the operator can adjust brightness by hard key to turn it to darker, the display brightness down to under 1% nits or other customized night vision mode immediately, and the display gets ready at low brightness right away once its trigger and protect the usage of night vision devices at once.

2



52

(3) MIL-DTL 38999

MIL-DTL-38999 is a high-performance cylindrical connector family designed to withstand the extreme shock, exposure and vibration that are commonplace in Defense and aerospace applications. Made with removable crimp or fixed hermetic solder contacts, these connectors provide high-vibration characteristics and are suitable for severe wind and moisture problem areas

(4) G.F.G Resistive Touch Screen

GFG touch screens are operable with fingers, pens and gloves. The glass surfaces makes the glass-film-glass sensor very durable and scratch resistant (7H).

2

2

(5) Soft Touch Button

SKY15-P20 equipped up to 20 programmable function keys, 3 OSD keys,1 triple knob, 1 power button by rubber-tooling made, each key pad dimension at 16 x 16 mm even the operator access function keys with wearing MOPP levels gloves.

(6) IP65 Certified

SKY15-P20 has complete resistance to dust and water; which is ruggedized and reliable for constrained military, ground army and defense.

9

2

(7) MIL-STD 810G Compliance

SKY15-P20 compliances of MIL-STD-810 for shocks, vibration etc; SKY15-P20 is rigorously field-tested to meet or exceed MIL-STD810G a for extremely high & low temp. humidity, shock, and vibration.

(8) MIL-461/1275 EMI Filter

SKY15-P20 is designed with MIL-STD-1275/704, protecting against vehicle/aircrafts voltage surges, spikes and transients, and even electromagnetic interference. This characteristic is well suited for the strictest military requirement and deliver optimal performance in harsh conditions.

2



9



(9) Intelligent Heater

Due to consider boot up in extreme cold environment, SKY15-P20  is designed /w intelligent heater to control temperature automatically.

(10) Waterproof Value

SKY15-P20 has completely waterproof to balance atmospheric pressure to meet different altitude environment.

2





15” TFT LCD Display & Resistor Touch screen

Resolution

1024x768 XGA

Brightness

1300 Nits

Aspect Ratio

4:3

Contrast Ratio

900

Touch Panel

Glass-Film-Glass 5-Wire resistor touch panel (Optional)

System SPEC

Triple Mode

Day Mode: Ultra-Brightness 1000 nits;

Night Mode: NVIS (Down to 1.7 Nits)

Invisible Mode: Backlight off

OSD

Backlight+

Backlight-

Function key backlight On/Off

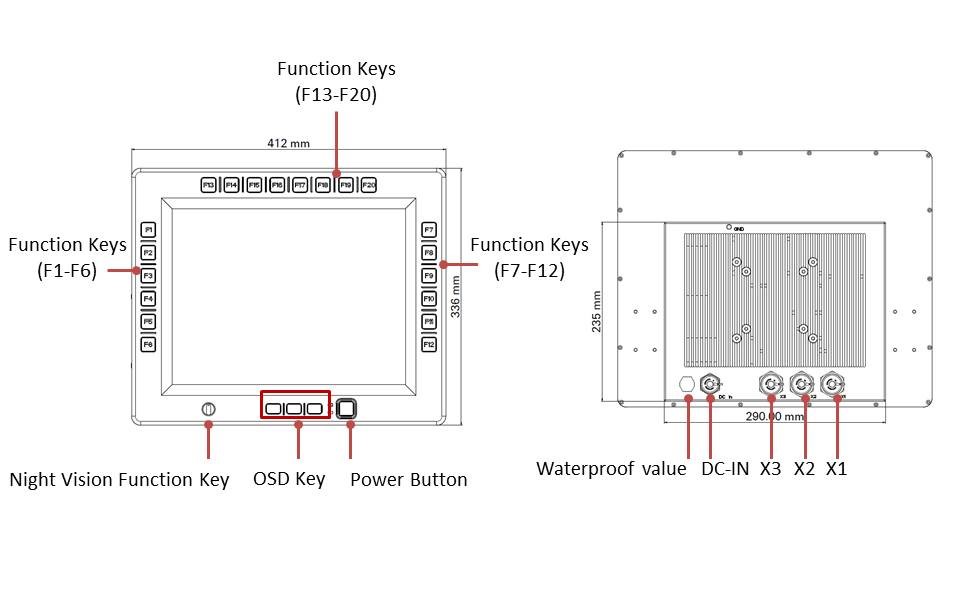

Function Keys

Programmable Function Keys (F1~F20)

DC-IN

18V ~ 36 V, 28Vdc

Optional:12V~40V DC-IN (150W max) MIL-STD-461, MIL-STD-1275,

Connectors

DC-IN

Amphenol TV07RW-11-54P

IO Ports

X1:VGA+Audio (Amphenol TV07RW-13-35S);

X2:DVI (Amphenol TV07RW-13-35S);

X3:2xUSB (Amphenol TV07RW-13-98S)

Applications

Applications

Marine, Naval, Ground and Airborne environment.

Physical

Dimension

412 x 59 x 336 mm (16.22" x 2.32" x 13.23")

Weight

12.35kg(27.23lbs)

Finish

Anodic aluminum oxide

Chassis

Aluminum Alloy, Corrosion Resistant.

Ingress Protection

IP65 Dust /water Proof

MIL Compliance

MIL-STD-810G (Operation Test)

Low Temp.

Method 502.5 Procedure 2

Exposure(24h x 3 cycle) at -10℃ min.

High Temp.

Method 501.5 Procedure 2

60ºC for 2 hrs after temperature stabilization.

Humidity

Method 507.5 Procedure 2

RH -95%. Test cycles: ten 24-hrs , functional test after 5th and 10th cycles

Vibration

Method 514.6 Category 20

10-500Hz 1.04Grms Test duration: 1 hr x 3 axis (total 3 hrs)

Shock

Method 516.6 Procedure 1

20G, 11mSec, 3 per axis

MIL-STD-810G (Non-Operating Tests)

Low Temp.

Method 502.5

Exposure(24h x 7 cycle) at -20℃ min.

High Temp.

Method 501.5 Procedure 1

71ºC for 2 hrs after temperature stabilization.

Vibration

Method 514.6 Category 24

200 to 2000Hz Test duration: 1hr per axis; rms = 7.7 gs

Shock

Method 516.6 Procedure 1

20G, 11mSec, 3 per axis



MIL-STD-461E

CE102

Basic curve, 10kHz - 30 MHz

RE102-4, (1.5 MHz)

(1.5 MHz) -30 MHz - 5 GHz

RS103

1.5 MHz - 5 GHz, 50 V/m equal for all frequencies EN 61000-4-2: Air discharge: 8 kV,

Environmental Qualifications

Regulatory

CE ,FCC Compliance

Operation Temp.

-40°C~60°C (ambient with air flow)

Storage Temp.

-40~+85 °C

Green Product

RoHS, WEEE compliance
2

2

20 Programmable function keys

STACKRACK ruggedized mission displays equipped up to 20 ruggedized function keys by rubber-tooling made, each key pad dimension at 16 x 16 mm even the operator access function keys with wearing MOPP levels gloves.

9

Optical bonding

Sky15-P20 adopts optical bonding with protective glass (GFG), it can offer surface light reflection and panel reflection losses lower than 3% which enhance its readability where installed in high humidity outdoor environments

Heater

Monitor usually challenges in extended temperature operation, Sky15-P20 especially implements heater in the system that allow Sky15-P20 can operate smoothly under temperature-30 degree for critical environment application

29

MIL-461F power solution

In order to meet military grades,Sky15-P20 equips EMI filter power solution that enables to meet MIL-STD-461F standard for harsh environment demand.
