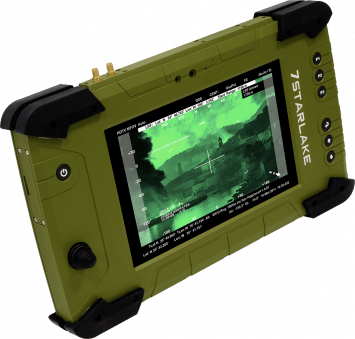

STORM-100 Rugged Military 10.1" Tablet
Rugged Military 10.1" Tablet , IP65 & Certified to MIL-STD 810 & 461
- Intel® CoreTM-i7-7600U (3.9 GHz)
- 1000 Nits Brightness
- 6 Programmable Function Keys
- G.F.G. Touchscreen
- Dual battery for extended operation
- Command and control joystick
- Expansion Slot
- IP65 & Certified to MIL-STD 810 & 461
Download
- Technical Profile
- Specifications
- Introduction
-

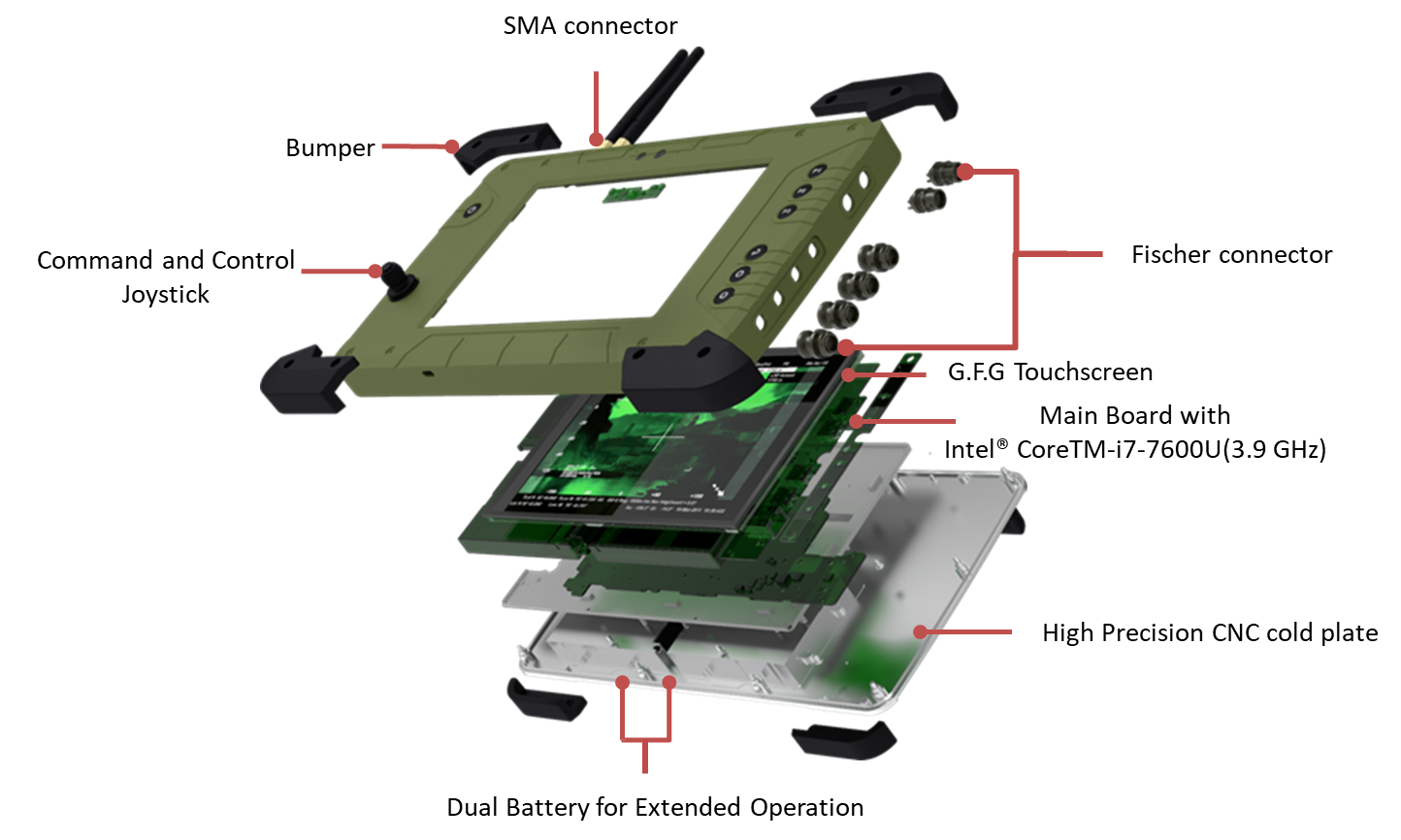

The STORM-100 features a 1000 Nit brightness 10.1” resistive multi-touch display that can be operated with gloves. Equipped with dual capacity batteries and powered by Intel®7th Gen, Core i7-7600U processor. IP65 rated, the tablet can be customized to meet the needs of the user, from cable connectors to wireless options. A multi-function capability that can be configured (software required) to operate & control connected sensors, from an Unmanned Ground Vehicle to an Unmanned Ariel Vehicle. An ideal capability for Light Force users be it in the mounted or dismounted environment.
- Main Features
-
(1) Operate day and night
STORM-100 features a high-brightness screen, specifically for outdoor use in direct sunlight.
(2) GFG Resistive Touchscreen
Using GFG touch technology, the screen can be operated with direct touch, when using gloves or with a stylus. Robust & rugged by design.
(3) Optical Bonding
Optical bonding is optimized to reduce noticeable light reflection, making the STORM-100 appear brighter in high ambient light environments and direct sunlight.
(4) Robust FISHER IO
Equipped with FICHER Ultimate/Minimax series for proven durability & high-performance shielding.
(5) Command & Control
Integrated with a command & control joystick to allow the operation of connected sensors. Multi-function, multi-use.
(6) Frame Grabber Card
Integrated vision system with frame grabber card. Capture, store & analyze.
(7) Programmable Keys
3 programmable function keys for user pre-defined capability. SHIFT key to allow the operation of alternate functionality.
(8) Rugged Design
MIL-STD 461 & 810 certified and rated IP65. True rugged performance.
- Function
|
System |
||
|---|---|---|
|
CPU |
Intel® CoreTM-7600U (3.9 GHz) |
|
|
Memory type |
DDR3L SO DIMM Socket x1, up to 8 GB |
|
|
Storage Device |
M.2(NGFF) SSD,64 GB (Default) |
|
|
Communication |
Wi-Fi 802.11 b/g/n BT V4.1 |
|
|
Navigation |
GPS, GLONASS |
|
|
WWAN (option) |
LTE via mini-card slot (Optional) |
|
|
Video Capture (option) |
NTSC-PAL, HD-SDI (Analog to Digital/ PAL) |
|
|
Camera |
2MP front camera, 5 MP auto-focus rear camera with flash |
|
|
Sensor |
G-sensor, E-compass, Gyro-sensor, light-sensor |
|
|
Expansion Slot |
Docking connector x 1, GNSS antenna pass-through connector x 1, WWAN antenna pass-through connector x 1 (Optional) |
|
|
Barcode (option) |
2D Barcode scanner, OPTICON MDI-4100-USB (Optional) |
|
|
HF RFID (option) |
ISO 15693 (R/W), ISO 18092 (R/W), ISO 14443-A (R/W), ISO 14443-B (Only UID), Dependant on card type |
|
|

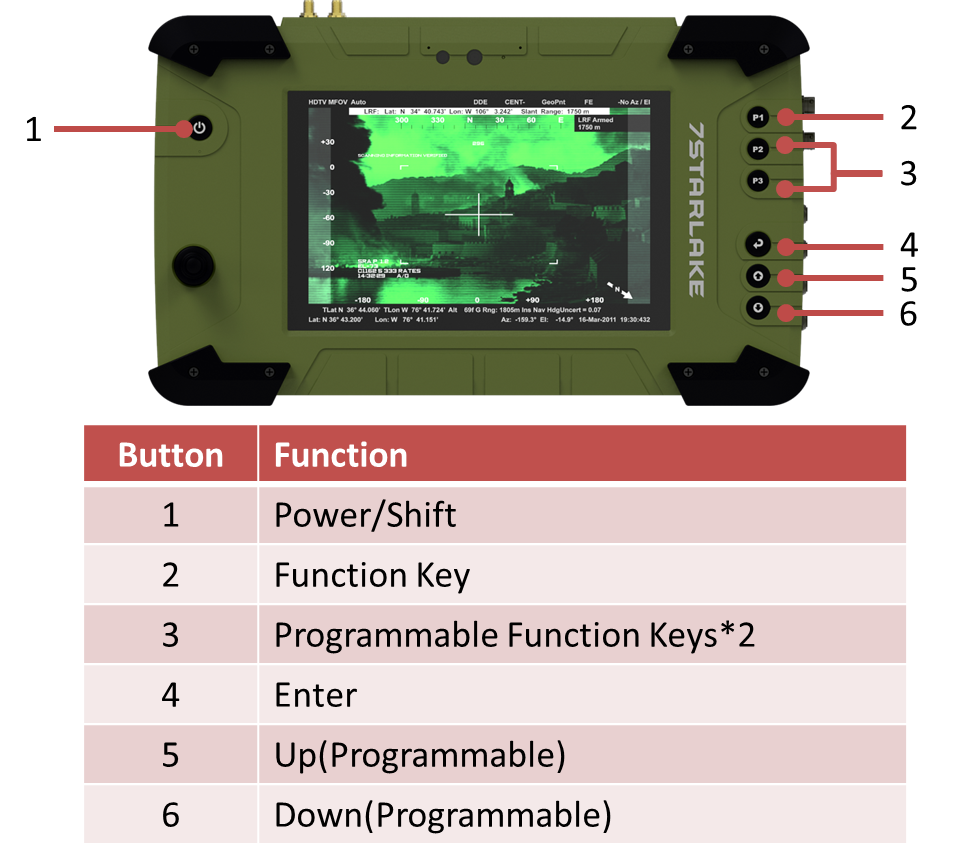

Physical Key |
Left: PWR/SHIFT
|
Right: 1-3 Programmable function keys 4. Enter 5. Up 6. Down |
|
Display |
||
|
LCD |
10.1 TFT-CD/16:9 with LED backlight |
|
|
Resolution |
1920 x1200 pixel |
|
|
Maximum |
16.7 M |
|
|
Brightness |
1000 Nits |
|
|
Power Supply |
||
|
Power |
AC 100~240V, 50~60 Hz, DC 19V/3.42A(65W) |
|
|

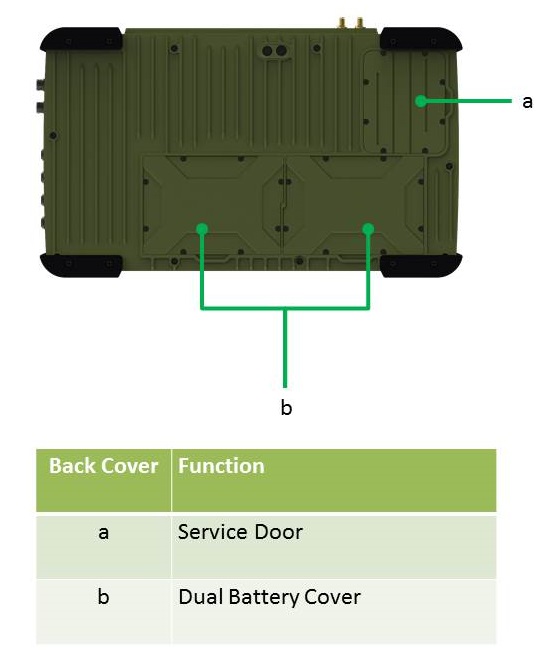

Battery |
Dual Li-ion Hight Capacity Batteries, up to 10 Hours Battery Life |
|
|
Master/Slave |
Hot-swappable battery: 14.4V, 2270 mAh,32.7W |
|
|
|
|
|
|
Touch Screen |
||
|
Touch Type |
10.1 GFG Touch Screen |
|
|

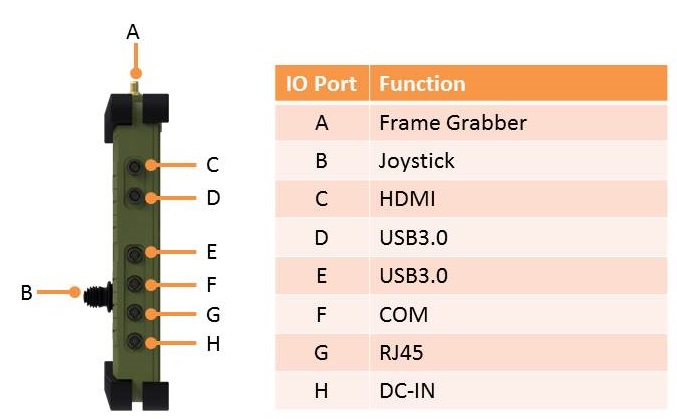

RIGHT I/O |
||
|
Display |
1 x HDMI (Fisher Interface-Optional) |
|
|
USB |
1 x USB 3.0 (Fisher Interface-Optional), 1 x USB 2.0 (Fisher Interface) |
|
|
Ethernet |
1 x RJ45 (Fisher Interface) |
|
|
COM |
1 (RS232/422/485) (Fisher Interface) |
|
|
DC-in |
1 x 100V-240V, 50Hz-60Hz, 65W Output:19V (Fisher Interface) |
|
|

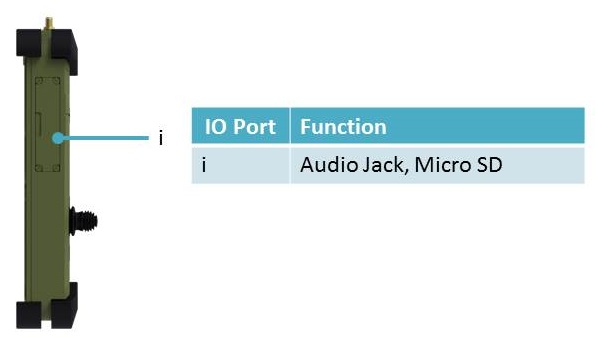

LEFT I/O |
|
|
|
Audio |
1 x Audio Jack |
|
|
MicroSD |
1 |
|
|
SIM |
1 |
|
|
OS support list |
||
|
Windows |
Windows® 10 IoT Enterprise 64bit (Default) Windows® 7 for Skylake (Optional) |
|
|
Linux |
Fedora 15, Ubuntu, Red Hat |
|
|
Mechanical and environment |
||
|
Dimension |
374.6 x 221.2 x 54.8 mm |
|
|
Color |
Yellow |
|
|
Gross Weight |
TBC |
|
|
Operating Temp. |
-20 to +60°C |
|
|
Storage Temp. |
-55°C to 70°C |
|
|
Relative Humidity |
50°C; 5% to 90% R/H; 120 hours, non-condensing |
|
|
Thermal Solution |
Passive cooling |
|
|
Certification |
CE, FCC compliant; UL: UL60950-1, CE/LVD: EN60950-1 |
|
|
Green Product |
RoHS2.0, WEEE compliance |
|
|
Ingress Protection |
IP65 |
|
|
Vibration |
MIL-STD-810G Method 514.6 Procedure I, Cat. 24,Fig. 514.6E-1 & E-2 |
|
|
Drop |
MIL-STD-810G Method 516.6 Procedure IV -Height of Drop: 122cm (48 inch;4 ft), -Number of Drop: 26 times, -Floor: Two inch plywood backed by concrete, -For all surfaces, edges and corners |
|
|
ESD |
Air charge:+/- 8KV, Contact charge:+/- 4KV |
|
