HORUS430-X1

AI Inference GPU system supporting NVIDIA® GTX1080 (CUDA2560, 8GB GDDR5) and 9th Coffee-Lake I7-9850HE (6 Core , 4.40Ghz)

  • Intel® 9th Coffee-Lake i7-9850HE  (2.7 GHz, up to 4.4 GHz, 6-cores, 12 threads)
  • NVIDIA MXM Graphic Engine supports up to GTX1080(CUDA2560,8 GB GDDR5X)
  • NVIDIA MXM Support Up to 180W
  • Dual 10 GbE SFP+
  • DDR4 Up to 64GB ( ECC for Options)
  • 2 x LAN, 4 x USB, 2 x DVI
  • Rugged MIL-DTL-38999 connectors
  • MIL-STD-461/1275  18V-36V DC-Input
  • Operating Temperature -20°C to +55°C
  • Technical Profile
  • Specifications
Introduction

Artificial intelligence (AI) is quickly becoming one of the most crucial components to business success now and in the foreseeable future. Today, the necessity of deploying powerful computing platforms that can accelerate and cost-effectively scale their AI-based products and services has become vital for successful enterprises.

7STARLAKE is innovating to address the rapidly emerging high-throughput inference market driven by technologies such as 5G, Smart Cities, and IoT devices, which are generating huge amounts of data. The combination of NVIDIA Tensor RT and the new architecture-based GeForce Accelerator is the ideal combination for these new demanding and latency-sensitive workloads and are aggressively leveraging them in GPU systems.

HORUS430-X3_Based Radar Subsystem by NVIDIA QUADRO



Edge AI Inference GPU System, NVIDIA®GTX1080, Intel® I7 9850HE

HORUS430-X3_Based Radar Subsystem by NVIDIA QUADRO





7STARLAKE ruggedized AI inference platform specifically designed for NVIDIA® Quadro Series and supports Intel® I7- 9850HE(6 Core, 4.40Ghz) processor. Utilizing 7STARLAKE' Open, Modular, Scalable Architecture, HORUS430-X1 provides an optimized cooling solution for GTX1080, ensure stable system operation in harsh environments. Combining stunning inference performance, powerful CPU, and expansion capability, it is the perfect ruggedized platform for versatile edge AI applications.

Modern Radar Sensor systems are being deployed to carry out multi-tasking for detection and tracking of several objects simultaneously. Active Electronically steered phased array technology is the key element being utilized for the design and development of these modern radar systems. A radar system receives digitized video data from receivers and carries out a set of highly compute-intensive Data / Signal Processing activities. The GPGPU provides a simple and easily implementable parallel software architecture paradigm using general-purpose programming languages like C / C++. The entire data/signal processing task can be realized as a sequence of software activities taking the advantage of very high throughput possible with the GPUs.

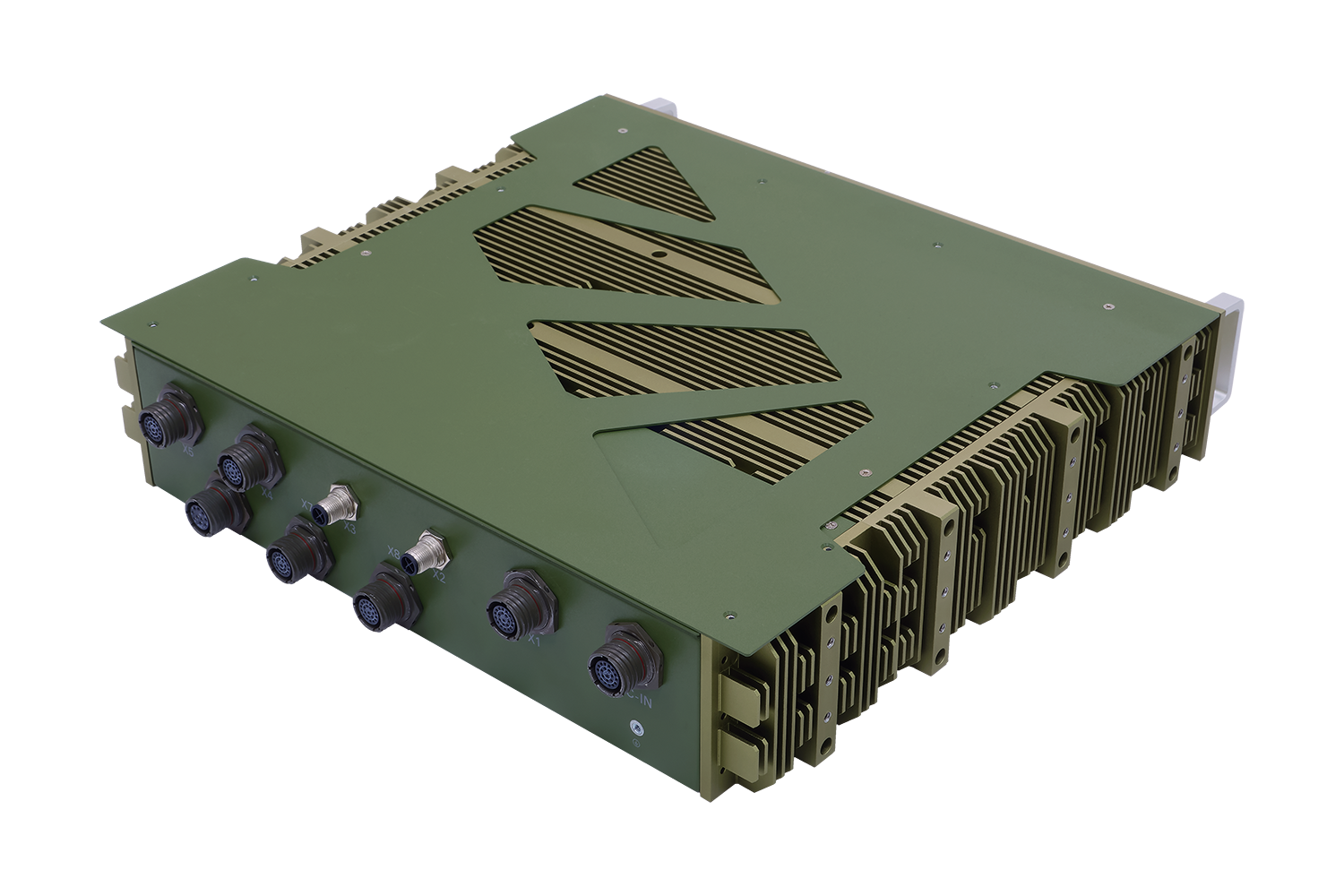

HORUS430-X1

HORUS430-X1, Intel® Core™ i7-9850HE Processor, the 8-Core CPU, supports 1.8 GHz, up to 3.8 GHz clock speed for high-end computing performance. Not only with outstanding CPU performance, but HORUS430-X1 has also integrated graphics card NVIDIA® GTX1080 (CUDA2560,8 GB GDDR5X)to apply all sorts of applications. HORUS430-X1 has provided rich I/O such as 4 x LAN, 4 x USB, 2 x DVI. HORUS430-X1 is highlighting rugged design and high functionality, the special dual thermal solution allows a powerful system to present supreme performance under harsh environments. HORUS430-X1 is designed to withstand the most challenging combat requirements with many being MIL-STD 810G certified for extreme environmental conditions. HORUS430-X1 GPGPU platforms are used by the most demanding customers including the US Military, NATO forces, and among many others.

NVIDIA GTX1080 GPU, Stunning Graphics

Performance

HORUS430-X1 is installed with graphics card NVIDIA GTX1080 (CUDA 2560,8 GB GDDR5X), allowing generate excellent resolution and supports high efficiency and fluency of image processing with competitive G3D Mark and low power consumption. The GPGPU provides a simple and easily implementable parallel software architecture paradigm using general-purpose programming languages like C / C++. The entire data/signal processing task can be realized as a sequence of software activities taking the advantage of very high throughput possible with the GPUs.The system possesses great superiority for image computing utilization, including 2D/3D mapping and real-time image process for autonomous vehicles, surveillance system for the control room, other navigation, radar, detection, sensor, and laser systems on all maritime, ground, and aerial applications in both defense and industrial fields.

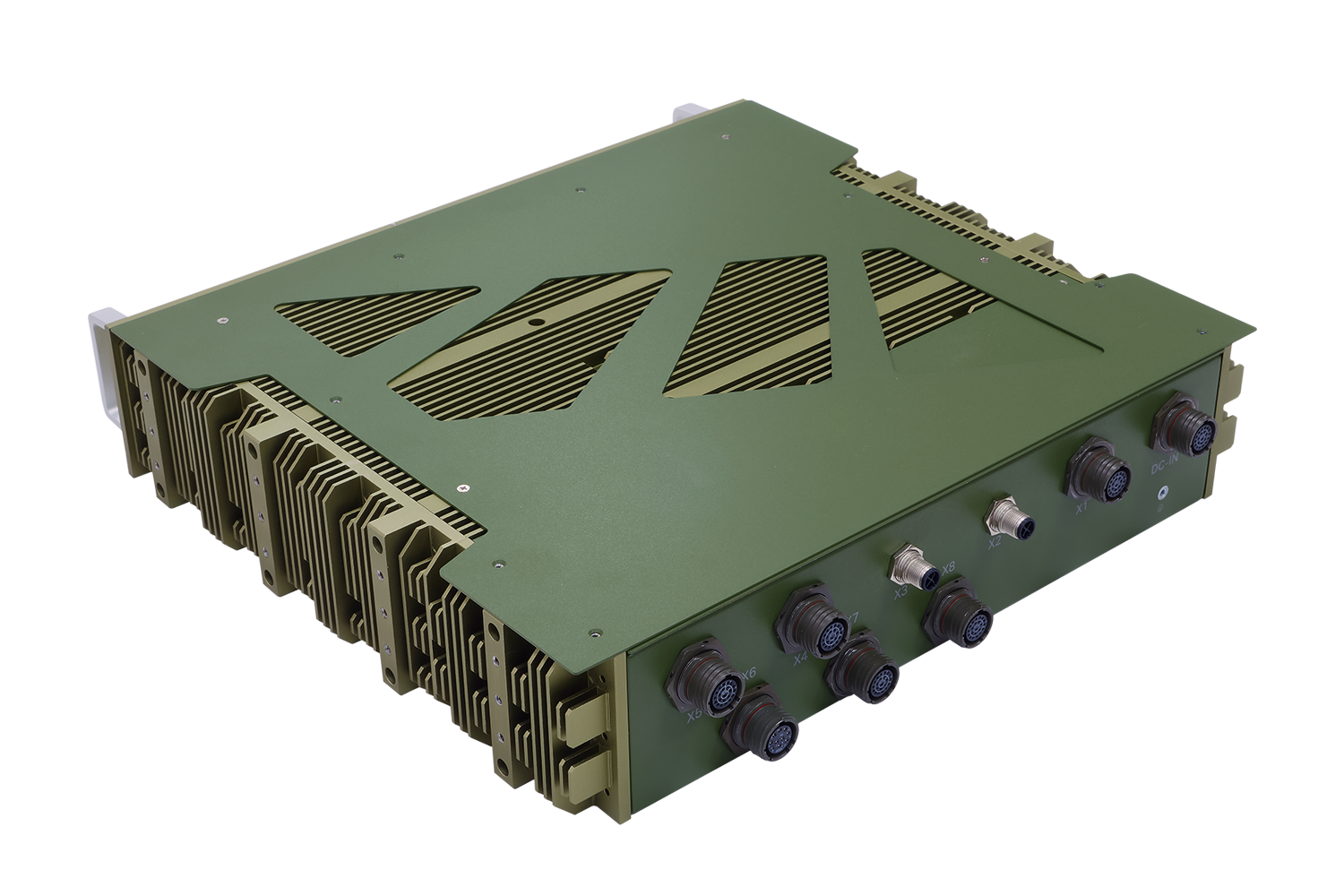

HORUS430-X1



I/O Expansions

HORUS430-X1





HORUS430-X1 is designed to fulfill the demands of mission-critical applications. Apart from the standard I/O interface, HORUS430-X1 is equipped with 4 x LAN, 4 x USB, 2 x DisplayPorts. With these rich interfaces, HORUS430-X1 can be easily applied to targeting & acquisition systems to link with diversified sensors, such as thermal image cam1ra, scanned array radar..etc.



Rugged D38999 Series connectors

D38999 connectors offer the highest performance capabilities and reliability for both general duty and severe environment applications.

This cylindrical connector family is designed for cable-to-panel I/O applications in military, aerospace, and other demanding hazardous situations. D38999 connectors are capable of operation within a temperature range of -65 to 200°C. They are lightweight and can stand up

to environmental challenges. Made with removable crimp or fixed hermetic solder contacts, these connectors provide high-vibration characteristics and are suitable for severe wind and moisture problem areas.

MIL-STD-810G Certificated



HORUS430-X1 meets MIL-STD-810G for mechanical shock and vibration, it is designed and tested to withstand extended temperature (-20° to +55°C). Combining critical components soldering onboard and solid connection, HORUS430-X1 is compliant to MIL-STD 810G standard, can withstand 5g vibration, 100g single shocks, and 50g multiple shocks.

HORUS430-X3_Based Radar Subsystem by NVIDIA QUADRO







Operating Temp.

-20~+50°C

System

CPU

Intel® i7-9850HE (6 Cores, 2.70GHz, Up to 4.40GHz)

Memory Type

2 x DDR4 up to 64GB

Display


GPU

NVIDIA MXM Graphic Card support up to GTX 1080 (CUDA2560, 8GB GDDR5X)
Storage

HDD/SSD 2 x 2TB SSD 2.5” Easy swap HDD/SSD Tray
Ethernet

Ethernet

1 x Intel® i210IT Gigabit Ethernet

1 x Intel® i219LM Gigabit Ethernet

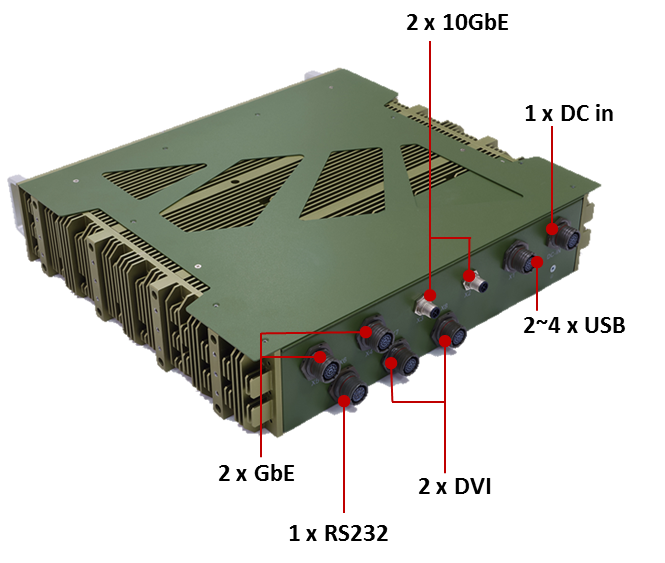

Rear I/O

X1

1 x USB x 4 MIL-38999 22Pin connector (Amphenol TV07RW-13-S)

X2, X3

2 x 10G LAN M12 8Pin connector (X CODE Cat6)

X4, X5

2 x 1G LAN MIL-38999 10Pin connector (Amphenol TV07RW-13-98S)

X6 1 x RS232 MIL-38999 10Pin connector (Amphenol TV07RW-13-98S)
X7, X8 2 x DVI MIL-38999 22Pin connector (Amphenol TV07RW-13-S)
Front I/O

Storage Device 2 x 2.5” Easy swap HDD/SSD Tray
Power Button 1 x Power Button with LED backlight
Ground Screw 1 x M4 Screw
OS support list

Windows

Windows 10

Linux

Fedora 20、Ubuntu 13.04、Ubuntu 13.10、Ubuntu 14.04

Mechanical and Environment

Power Requirement

12V DC-IN

Dimension (WxDxH)

422 x 400 x 88 mm (W x D x H)

Weight

14 kg

Ingress Protection IP54 ( IP65 Optional)

Operating Temp.

-20°C to 55°C

Storage Temp.

-40°C to 85°C

Relative Humidity

5% to 95%, non-condensing

Test Standard

EMC

CE, FCC compliant
