HORUS330-X2 - Intel® Xeon® D 8 Cores GPUCPU Server

 Introduction

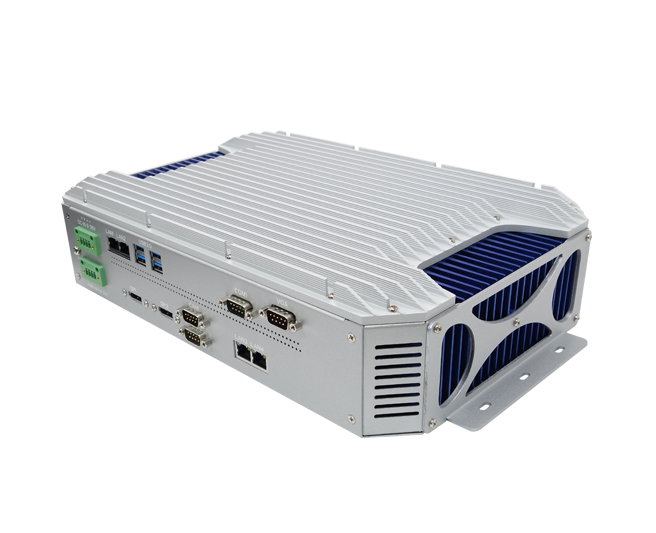

HORUS330-X2, 1.5 U Fanless Rugged GPU Server is a powerful system driven by Intel® multi-core Processor Xeon D-1548, the 8-core CPU, supports 2.0GHz, up to 2.6GHz clock speed for high-end computing performance. Not only with outstanding CPU performance, HORUS330-X2 has integrated graphics card NVIDIA® GTX950M/GTX1050Ti to apply all sort of applications. HORUS330-X2 has provided rich I/O such as 4 x USB 3.0, 1 x COM port, 2 x DisplayPort and 4 x LAN ports. HORUS330-X2 is highlighting on rugged design and high functionality, the special dual thermal solution allows powerful system to present supreme performance under harsh environment. With rugged design, the system is suitable for the use in high-end automation and passenger information system in the field of military, transportation and so on.

Dual thermal solution ensures supreme system performance

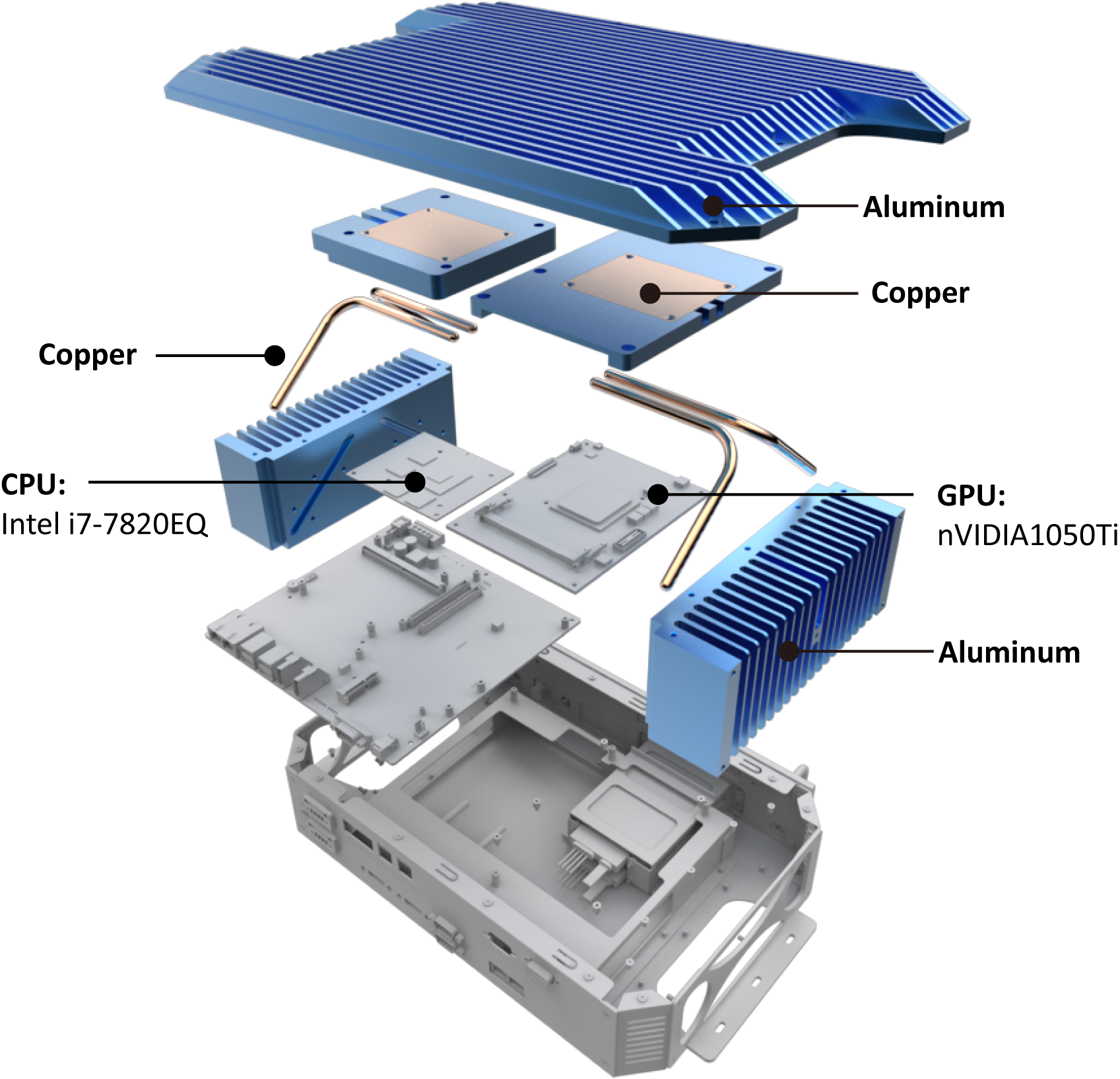

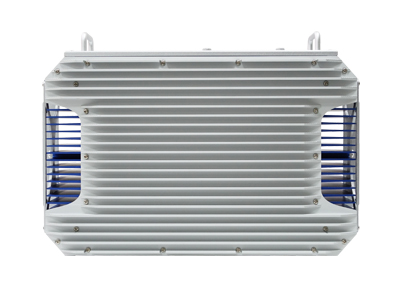

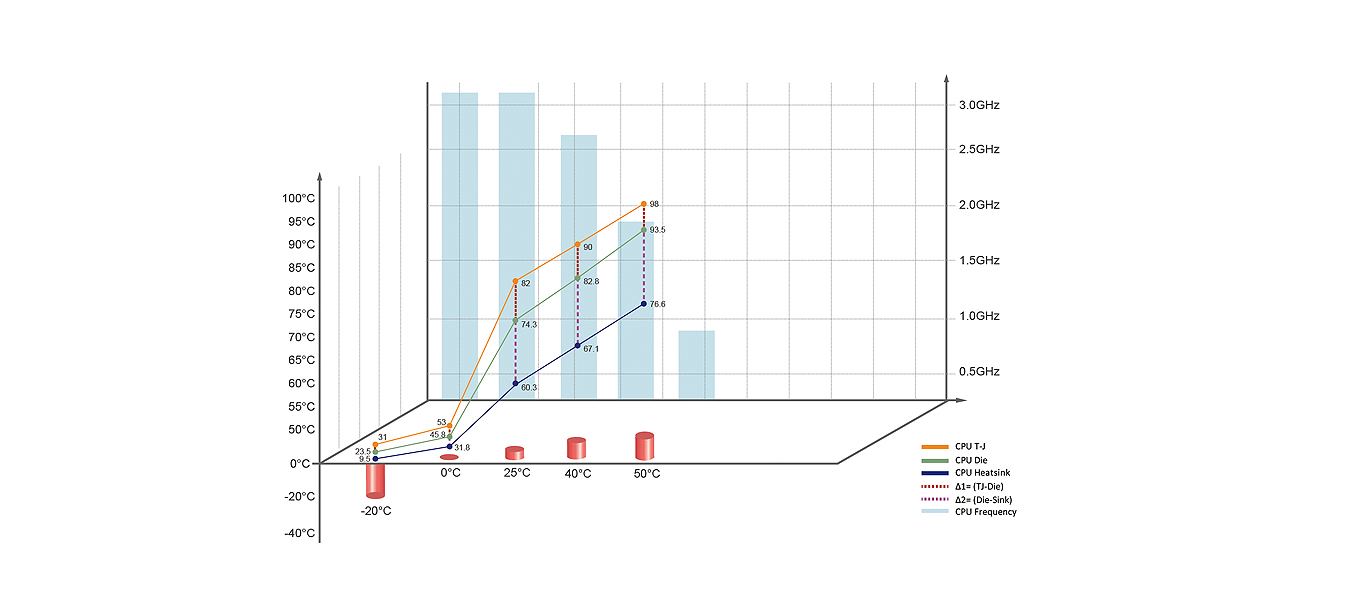

With combination of high end CPU computing and graphic GPU power generate numerous heat, STACKRACK emphasizes on providing exceeding thermal design guarantee superior system performance under critical environment. HORUS330-X2 innovatively adopts dual sided thermal solution, with copper heat spreader directly touches the heat source components processor and graphic GPU to absorb the heat rapidly, heat then transfer to heat pipe; heat pipe is two-phase heat transfer involves the liquid-vapor phase change of a working fluid which can provide high efficiency heat transmission. The aluminum heat sink dissipates the heat into surrounding air promptly. One side thermal solution is mainly for Xeon® Processor D-1548 45W processor and the other side is to dissipate the heat for graphic GTX950M/GTX1050Ti GPU. With unique thermal design, HORUS330-X2 can ensure high performance and reliability while working under extended range temperature from -20°C up to 50°C.

NVIDIA GTX1050Ti GPU, Stunning Graphics

Performance

HORUS330-X2 is installed with graphics card NVIDIA GTX1050Ti GPU (CUDA 768, Clock speed 1493MHz), allowing generate excellent resolution and supports high efficiency and fluency of image processing with competitive G3D Mark and low power consumption. The system possess great superiority for image computing utilization, including 2D/3D mapping and real-time image process for autonomous vehicle, surveillance system for control room, other navigation, radar, detection, sensor and laser systems on all maritime, ground, and aerial applications in both defense and industrial fields.

I/O Expansions

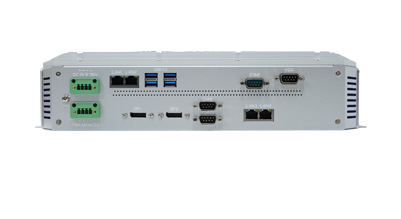

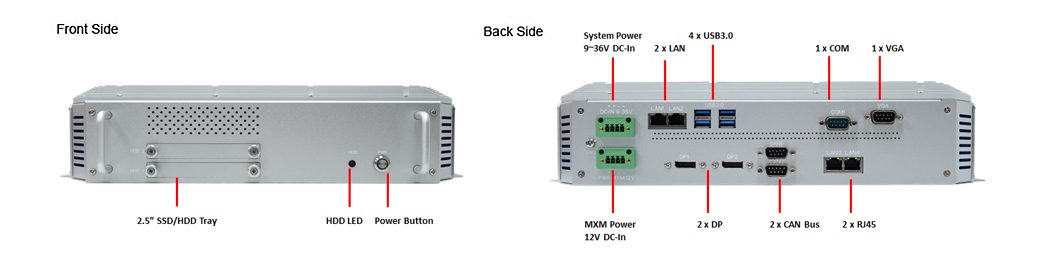

HORUS330-X2 is designed to fulfill demands of different application. Apart from standard I/O interface, HORUS330-X2 equipped with quad LAN ports, COM Port, CAN Bus and 2 display output from GTX1050Ti. With these expansions, HORUS330-X2 can be easily applied to control room or driverless vehicles application.

19"rackmount bracket

The ability of keep HORUS330-X2 inside cabinet is also an enhanced ways to keeping your server secure. Which STACKRACK has designed a 19"”"rackmount bracket allows HORUS330-X2 place inside a cabinet in order to protect from climate issue, dust and pests attack.
