AV600-THT
Military IP65 Mission GPU Computer
- MIL-STD 810 Thermal, shock, vibration, Humidity / EMI / EMC conditions
- IP65 Chassis with D38999 connectors
- Intel® 11th Gen. Tiger Lake(H) W-11865MRE Processors, up to 8 cores
- Up to 96 GB DDR4 SO-DIMM, non-ECC and ECC
- NVIDIA RTX™ A4500 8GB/16GB GDDR6 memory 5888 CUDA cores
- Soldered 64 GB NVMe
- IP65 2 x 2.5” SATA SSD Easy Swap Tray
- MIL-STD 461 18V~36V DC-Input (Options for MIL-704/1275)
- Extreme Temperature : -40°C to 70°C
- Dimensions : 246(L) x 313.5 (W) x 100 (H) mm
Download
- Technical Profile
- Specifications
- Certification
- Introduction
-
AV600X-THT is driven by Intel® 11 Gen. Tiger Lake-H Processors, integrated Intel® UHD Graphics (Xe architecture). Tiger Lake H processor is built on 10nm SuperFin Technology, up to 8 CPU cores and 4.7 GHz frequency. It is high computing performance and flexibility for heavier IoT workloads, the platform posts significant performance gains gen-over-gen with up to 32 percent gain in single-thread performance. It also features in high-bandwidth, high speed I/Os for expansion and peripherals.AV600X-THT highlights on its rugged design and high functionality, the system especially installed MIL-STD Amphenol type connector and full IP66 protection allow system withstand in any kind of harsh environment. AV600X-THT supports extended temperature from -40°C to 70°C and MIL-STD-461 18V~36V DC-input Power supply which can protect system from damages caused by sudden surge of voltage, thus further secure the reliability of its critical components and the system itself.

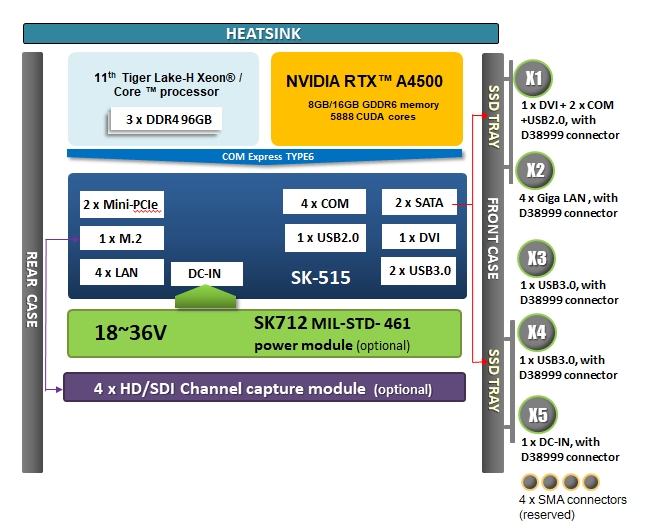

- Block Diagram
-

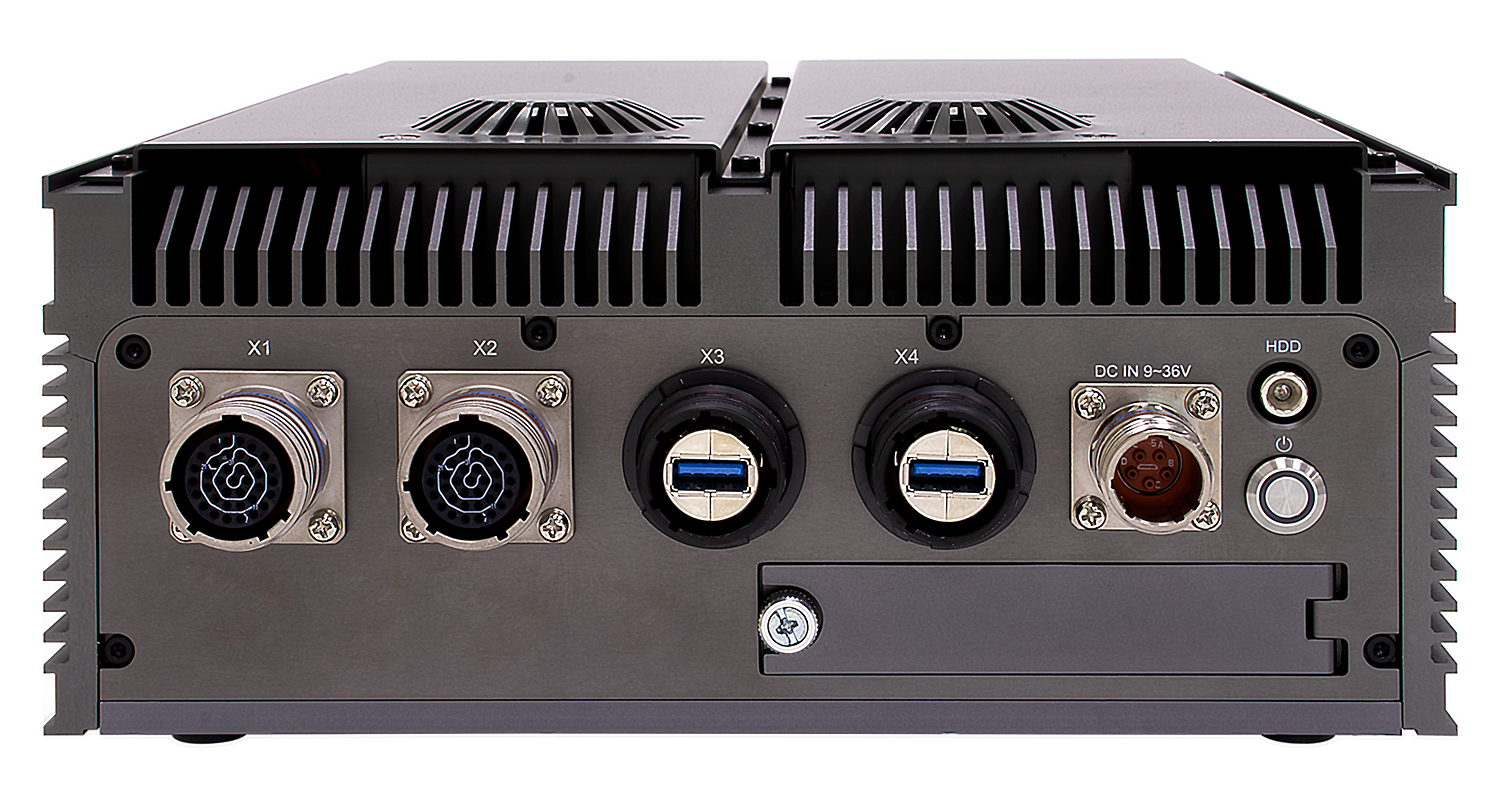

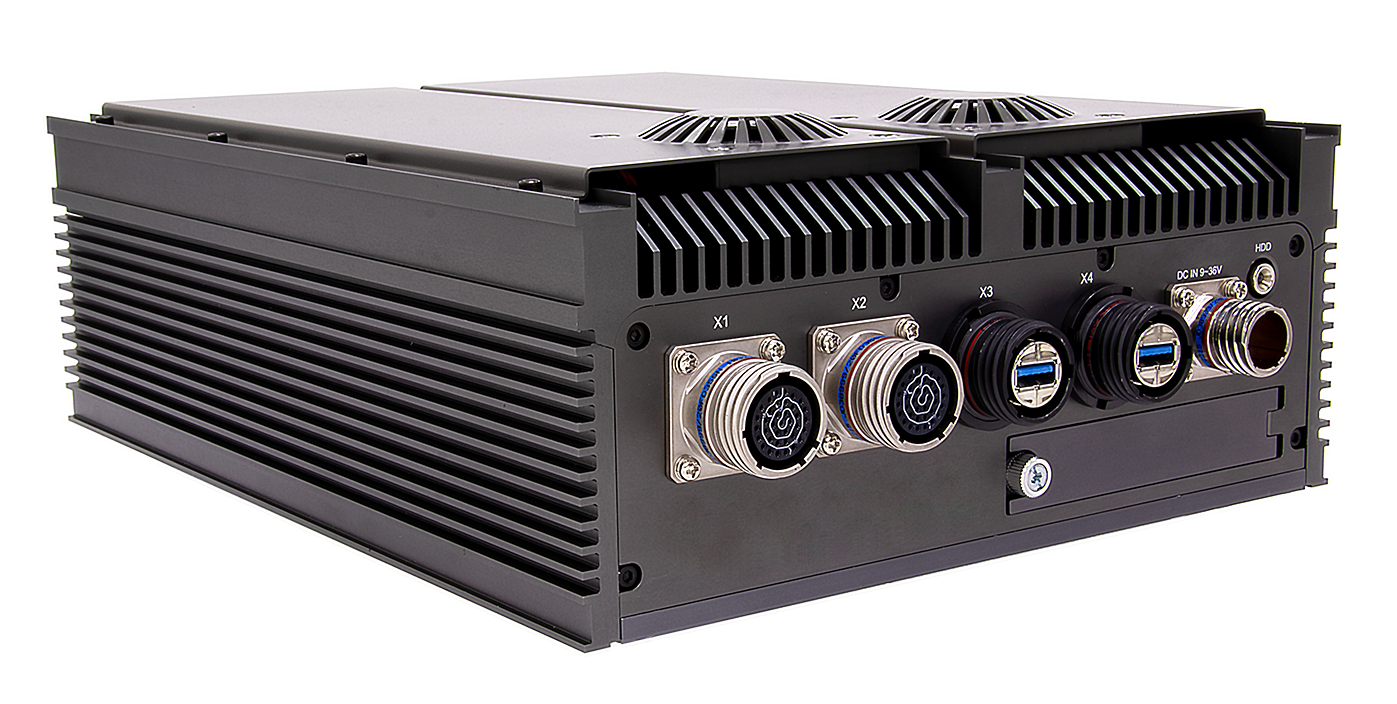

- Appearance
-

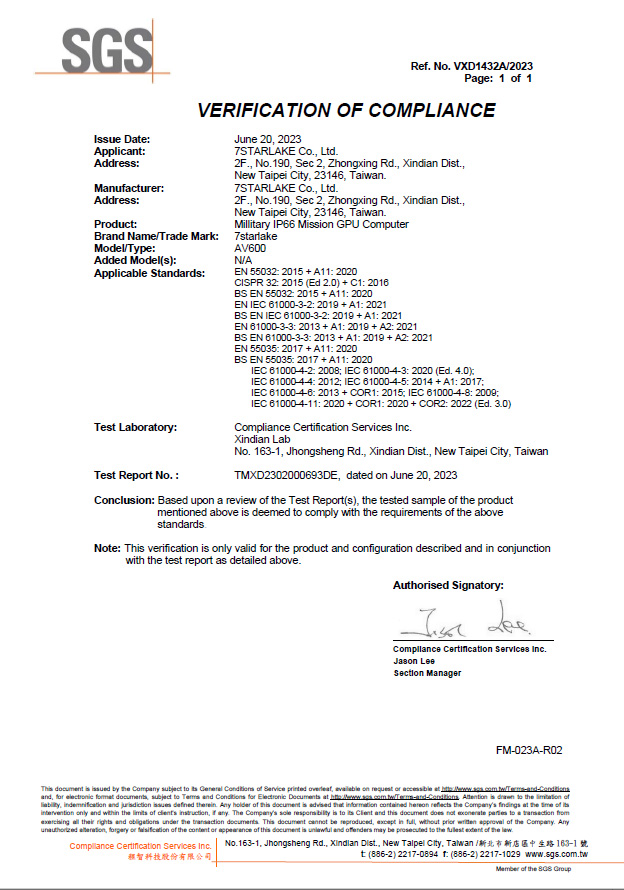

- CE Verification
-
|
System |
||||
|---|---|---|---|---|
|
CPU |
Intel® 11 Gen. Tiger Lake-H Processors, up to 8 cores, integrated Intel® UHD Graphics Intel® Xeon® W-11865MRE, 2.6(4.7) GHz, 24MB, 45W(35W cTDP), 8C/16T |
|||
|
Memory type |
Up to 96GB DDR4 SO-DIMM, non-ECC and ECC |
|||
|
CHIPSET |
Intel® RM590E (support ECC, with Xeon CPU) /QM580E |
|||
|
GPU |
NVIDIA RTX™ A4500 GA104-955 GPU 8GB/16GB GDDR6 memory, 5888 CUDA cores |
|||
| On Board Storage | Soldered 64 GB NVMe | |||
|
Expansion Slot |
2 x Full-size mini PCIe (1 with mSATA supported) -1 with mSATA/USB2.0/PCIeX1 support -1 with SIM/USB2.0/PCIeX1 support 1 x 2280 M key (SATA only) |
|||
|
Storage |
||||
|
SATA |
2 x 2.5” SSD, Hot Swappable SSD/HDD slot |
|||
|
M.2 |
1 x 2280 M key (SATA only) |
|||
|

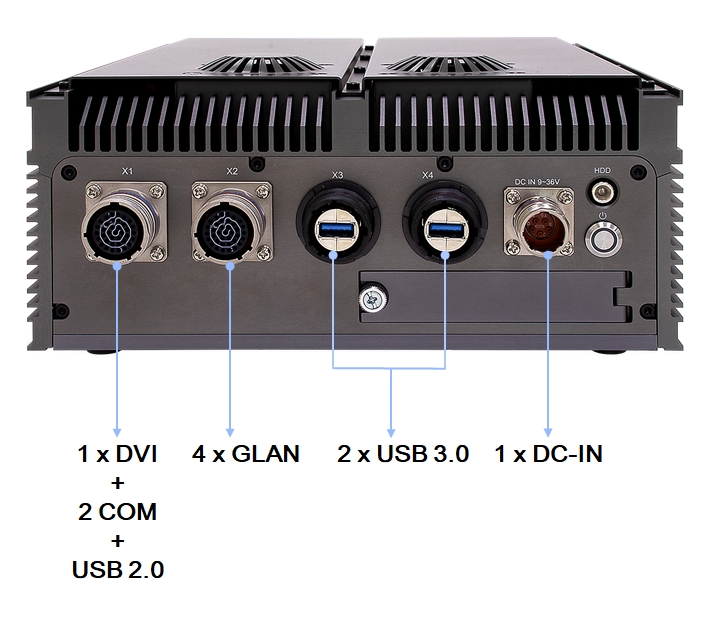

Front I/O |
||||
|
X1 |
1 x DVI + 2 x COM +USB2.0 , with D38999 connector |
|||
|
X2 |
4 x Giga LAN , with D38999 connector |
|||
|
X3 |
1 x USB3.0 , with D38999 connector |
|||
|
X4 |
1 x USB3.0 , with D38999 connector |
|||
|
X5 |
1 x DC-in , with D38999 connector |
|||
|
LED |
1 x SSD/HDD LED indicator |
|||
|
switch |
1 x IP65 power button , with LED indicator |
|||
|
SSD |
2 x 2.5”Easy swap SSD Tray |
|||
|
Power |
||||
|
Power input |
MIL-STD-461 18V~36V DC-Input |
|||
|
Operating System |
||||
|
OS |
Windows® 10 64-bit / Linux (support by request) |
|||
|
Physical |
||||
|
Dimension |
246(L) x 313.5 (W) x 100 (H)mm |
|||
|
Weight |
11 KG |
|||
|
Chassis |
Aluminum Alloy |
|||
|
Heatsink |
Heatsink Aluminum Alloy, Corrosion Resistant |
|||
|
Environmental |
||||
|
Green Product |
RoHS, WEEE compliance |
|||
|
Operating Temp. |
-20°C to 55°C |
|||
|
Storage Temp. |
-40°C to 85°C |
|||
|
Relative Humidity |
5% to 95%, non-condensing |
|||
|
MIL-STD-810 Specifications (Operating) |
||||
|
Method 502.5 |
Low Temperature |
-20°C, 4 hours, ±3°C |
||
|
Procedure 2 |
||||
|
Method 501.5 |
High Temperature |
+55°C, 4 hours, ±3°C |
||
|
Procedure 2 |
||||
|
Method 507.5 |
Humidity |
85%-95% RH without condensation, 24 hours/ cycle, conduct 10 cycles. |
||
|
Method 514.6 |
Vibration |
5-500Hz, Vertical 2.20Grms, 40mins x 3axis. |
||
|
Method 516.6 |
Shock |
20 Grms, 11ms, 3 axes. |
||
|
MIL-STD-810 Specifications (None-Operating) |
||||
|
Method 502.5 |
Low Temperature Storage
|
-33°C, 4 hours, change rate:≦20°C/ Hour -15°C, 72hours (By request) |
||
|
Procedure 1 |
||||
|
Method 501.5 |
High Temperature Storage |
+71°C, 4 hours, change rate:≦20°C/ Hour +63°C, 240 hours (By request) |
||
|
Procedure 1 |
||||
|
Method 514.6 |
Vibration |
5-500Hz, Vertical 2.20Grms, 40mins x 3axis. |
||
|
Method 516.6 |
Shock |
20 Grms, 11ms, 3 axes. |
||
| MIL-STD-461 Test | ||||
| Conducted Emissions | CE102 basic curve | 10kHz – 30MHz | ||
| Power Leads | ||||
| Conducted Emissions | RE102-4 | 1.5HMz - 30MHz – 5GHz | ||
| Electric Field | ||||
| Radiated Susceptibility | RS103 | 1.5 MHz – 3GHz, 50 V/m equal for all frequencies | ||
| 2MHz – 80MHz, 50 V/m equal for all frequencies | ||||
| Electric Field | 80MHz – 3GHz, 50 V/m equal for all frequencies | |||
| 3GHz – 5GHz, 50 V/m equal for all frequencies | ||||
| Electrostatic Discharge | EN 61000-4-2 | Air DISCHARGE: 8 Kv, Contact discharge : 6kV | ||
| Electromagnetic compatibility | EN61000-4-4 | Signal and DC Net: 1 kV | ||
| Electromagnetic compatibility | EN61000-4-5 | Lead vs. ground potential 1Kv, ignal und DC Net: 1 kV | ||
| Radio disturbance | EN55022 | Class A | ||
| Electromagnetic compatibility | EN61000-4-3 | 10V/m | ||
| Electromagnetic compatibility | EN 61000-4-5 | Lead vs. ground potential 1Kv, ignal und DC Net: 0.5 kV | ||
| Designed to Meet Items ( Options ) | ||||
| CS101, CS114, CS115, CS116 | ||||
| CE106, RE103, RS101 | ||||
| MIL-STD-1275 | Steady State | 20V-33V | ||
| Surge Low | 18V/500ms | |||
| Surge High | 100V/500ms | |||
