THOR100-X4-D7E

MIL-810 Military Computer - 1U ½ Size MIL-STD 810/461 Rugged System with Intel® Coffee Lake Xeon E-2276ML Processor, MIL-STD 461 EMI 18V~36V, Extended Temp. -40°C to 70°C

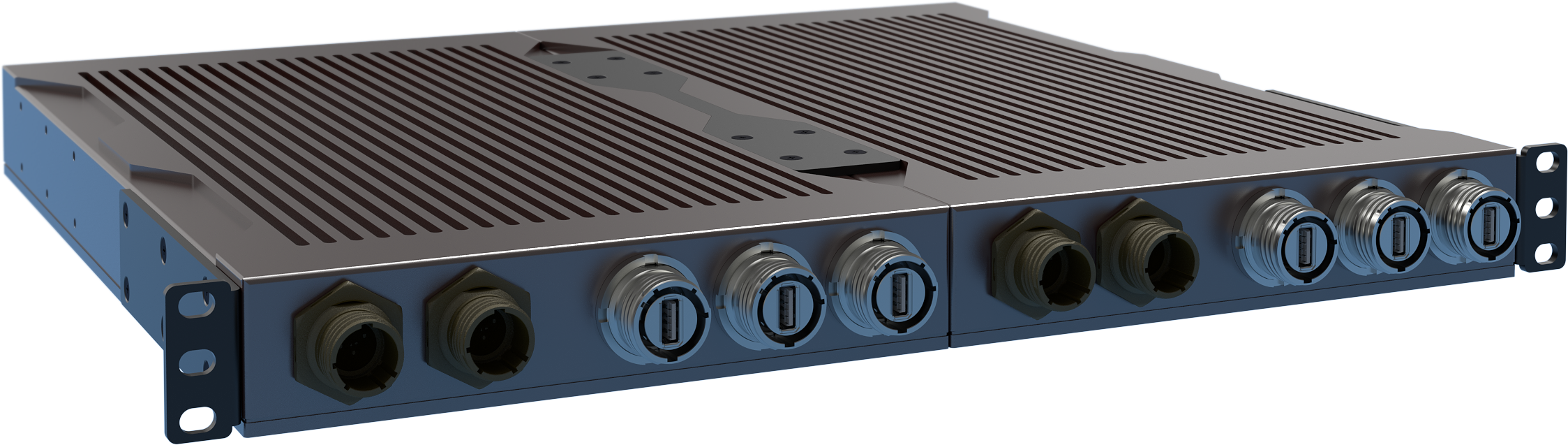

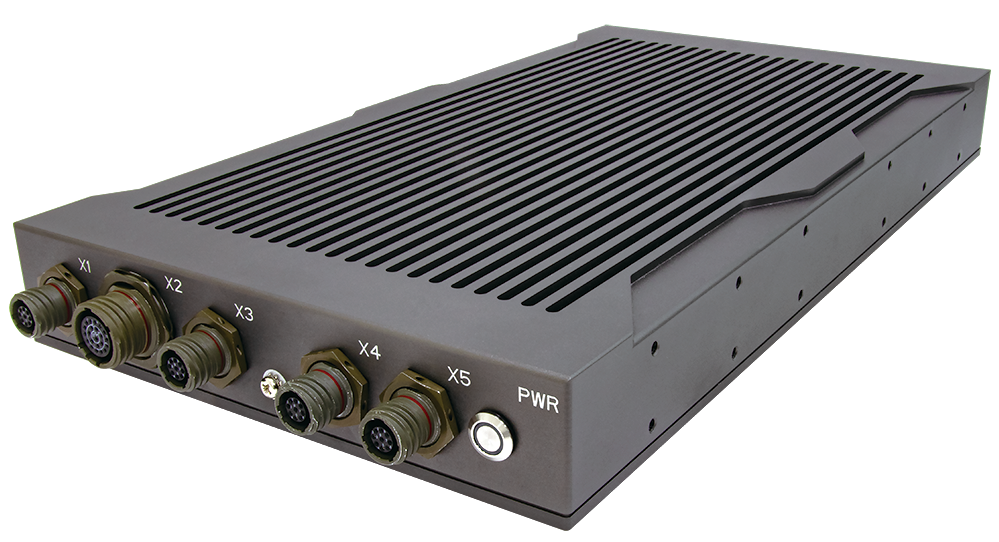

  • 1U/half Size Rugged Military Server
  • Intel® Coffee Lake Xeon® E-2276ML
  • DDR4 Up to 128GB, NVMe Up to 2TB
  • Military D38999 Connectors Support :  2 x mini DP, 2 x  LAN, 2 x USB 3.0
  • Design for Naval Defense System, withstand 75G rms Shock
  • 18V~36V DC-in, MIL-STD-461 EMI Filter
  • Extended Temperature:-40°C to+70°C

intel

  • Technical Profile
  • Specifications
Introduction

X4The nature of the military operation and existence is changing due to technology. The performance, reliability, and stability of the application become important, and so is the durability of the application to the operating temperatures, shock, and vibration requirements of challenging environments.

THOR100-X4-D7E – 1U Half Size Rugged Mission MIL-STD 810 Computer is built to meet strict size, weight, and power (SWaP) requirements and to withstand harsh environments, including temperature extremes, shock/vibe, sand/dust, and salt/fog. The THOR100-X4-D7E equipped Ultra-High Performance Intel® Xeon® E-2276ML is fully qualified IP65 with D38999 connectors which can offer the most powerful performance and ready to handle harsh environments in battle-field, such as sustain 75 g shock in the maritime applications.

In order to satisfy the requirement of Naval System Application and reducing the SWaP, THOR100-X4-D7E is driven by powerful processor, and equipped with high speed serial interconnects 2 x LAN, 1 x DC, , 2 x mini DP, and 2 x USB3.0. It also withstand extended temperature -40°C to +70°C and wide voltage input MIL-STD 461 18V~36V, to make it an ideal solution for Military type rugged applications.

IT Block Diagram

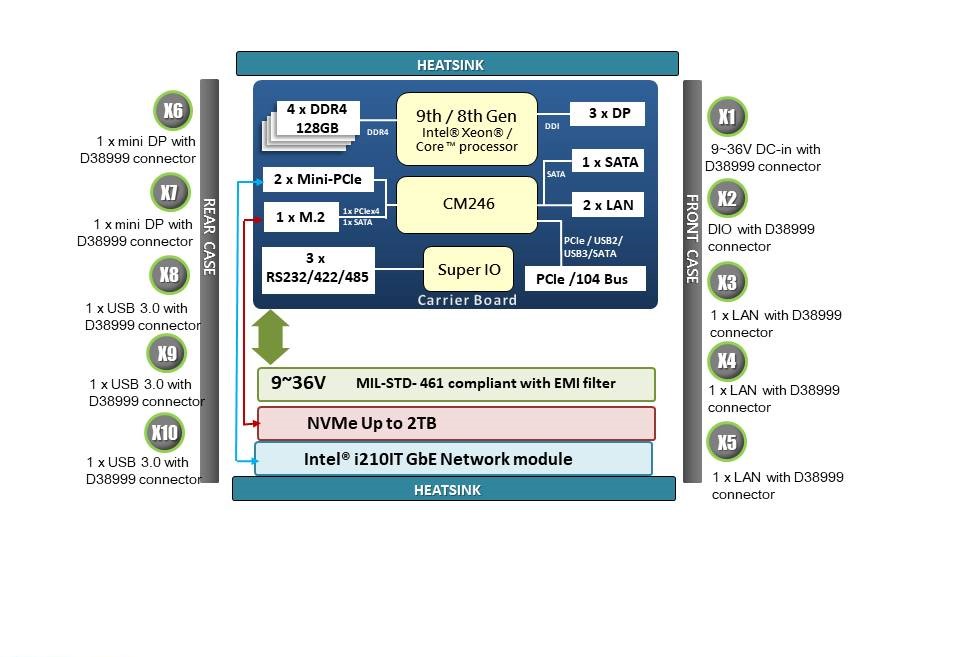

block diagram

Feature

THOR100-X4Computing Features

- Xeon E-2276ML (up to 4.20 GHz), 25W

- 4 x 260 Pin DDR4 SO-DIMM (up to 128GB)

- 1 x M.2 2280 M-key (SATA/PCIe 3.0x4 NVMe)



I/O and Expansion Options

Environment

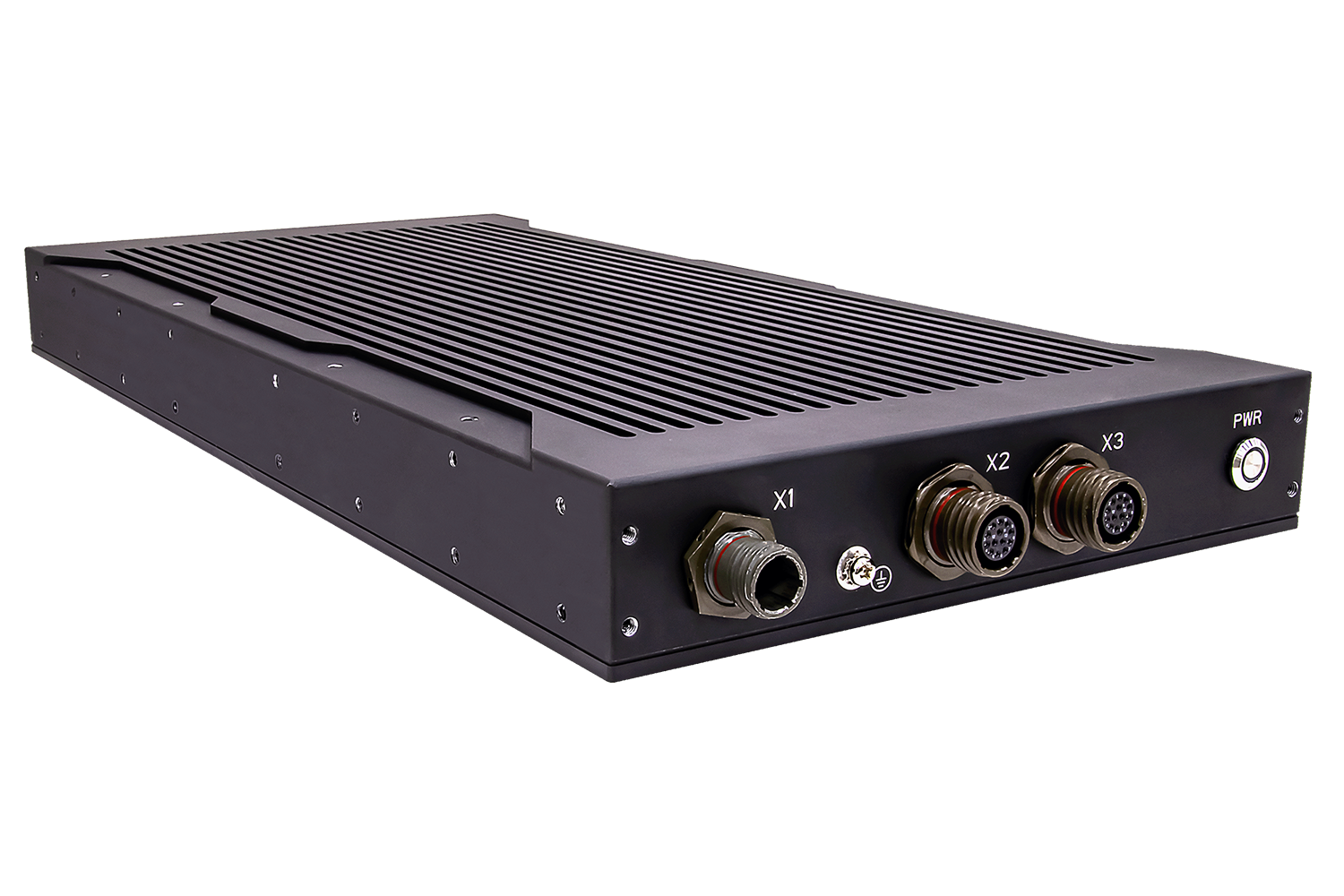

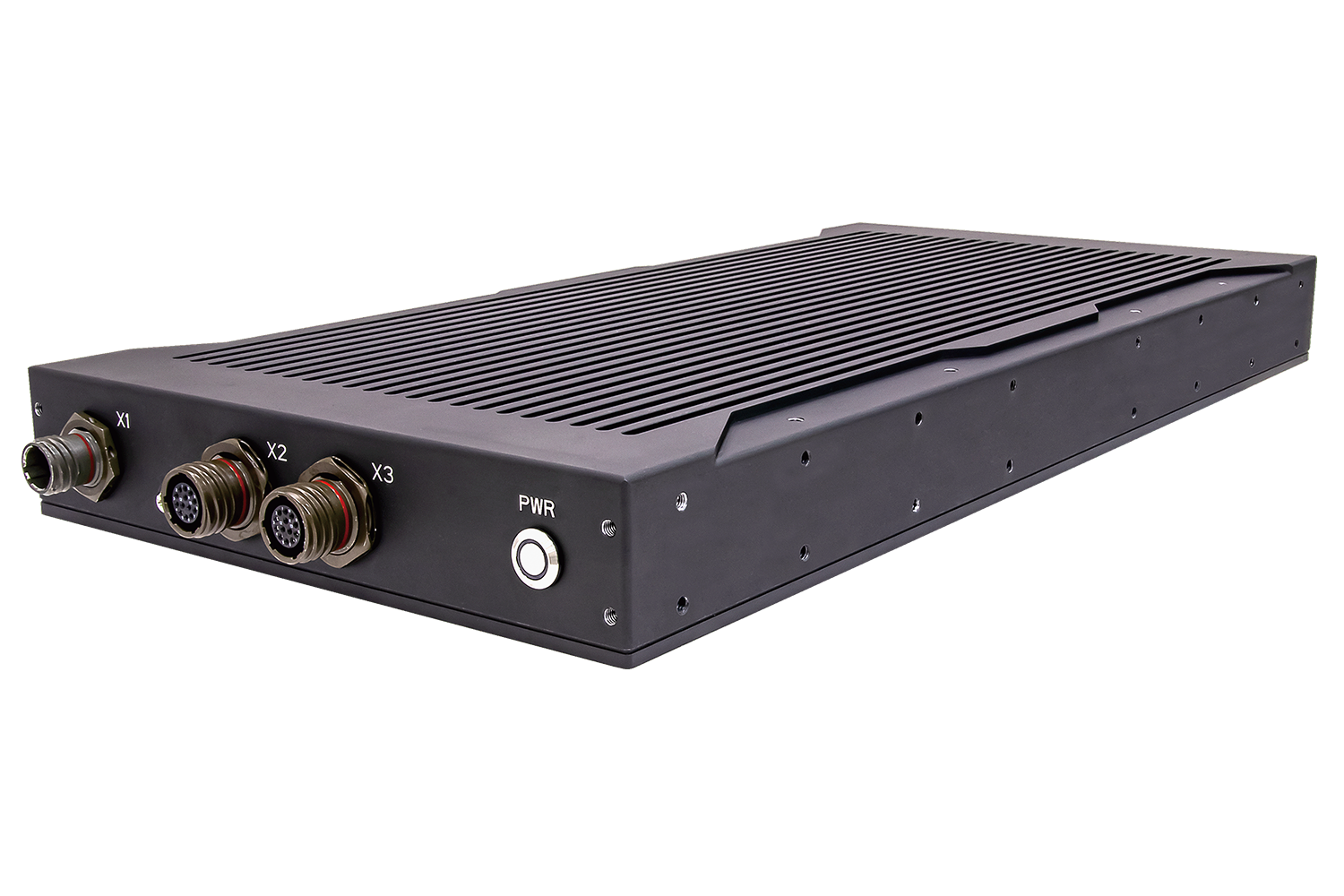

- X1 : One 9V~36V DC-in with D38999 connector
- X2 : One LAN with D38999 connector
- X3 : One LAN with  D38999 connector

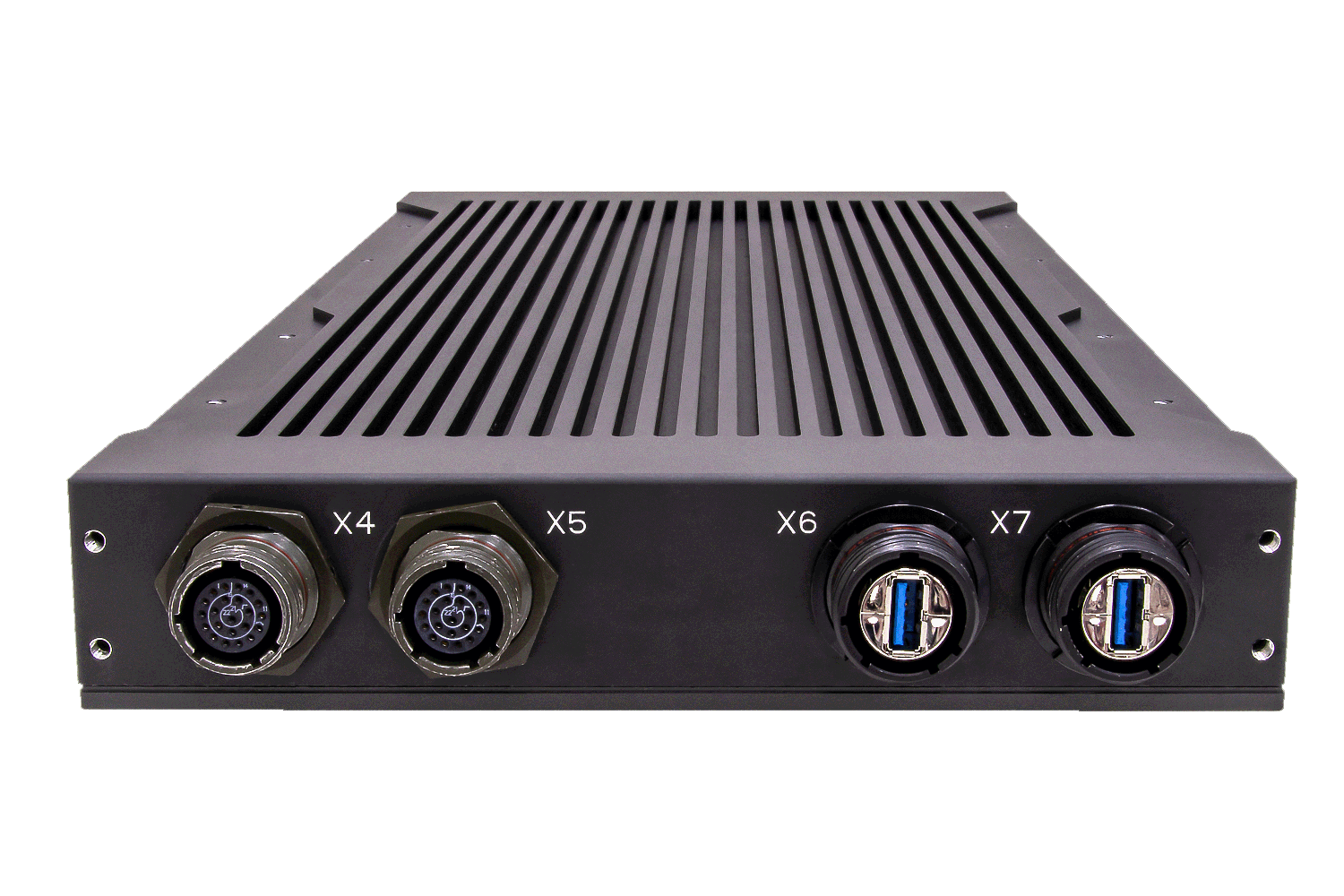

- X4 : One mini DP  with D38999 connector
- X5 : One mini DP  with D38999 connector
- X6 : One USB 3.0 with D38999 connector
- X7 : One USB 3.0 with D38999 connector

-MIL-STD-461 wide range 9-36V DC power module with EMI Filter
-MIL-STD-810, 461 compliant
Operates up to extended temp -40°C to +70°C
Robust Product Design Ready For Military Application

Design for Naval Defense System; Withstand MIL-STD-810 Shock Up to 75G rms

test

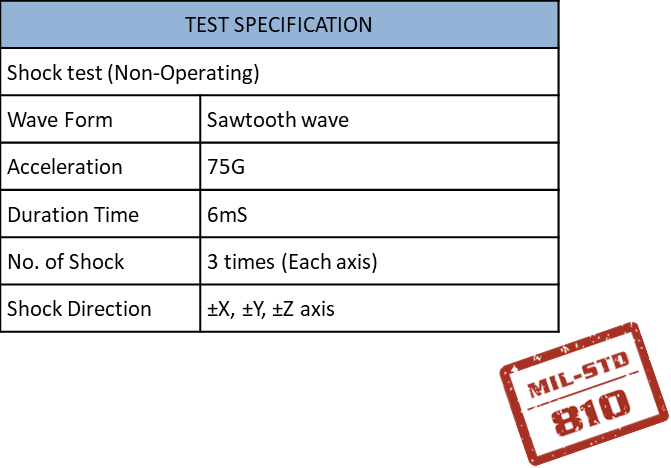

application must be withstand detonating explosives in water and assessing the resulting high-impact mechanical shock. MIL-STD-810 standard is considered the upmost principle of the environmental design. With using the shock tester, it can analyze the product ability to tolerate the strong external stress and the degradation of structural weaknesses to quickly obtain the data of structure strength, anti-shock appearance and anti-drop. The shock tester is using the sawtooth wave to evaluate the product reliability and monitor the consistency of production. To assure the application is supporting a mission-critical hardware, THOR100-X4-D7E are designed to meet with the strict standards of MIL-STD 810 shock up to 75G rms.

MIL-STD-461 EMI Filter, Wide Voltage Power Input 18V~36V

21

To withstand under any kinds of application challenges, system with wide range designed is brings maximum reliability and stability. THOR100-X4-D7E is designed with MIL-STD-461 EMI, protecting against voltage surges, spikes and transients, and even electromagnetic interference. Wide voltage power input design (18~36V) can protect the system from damages caused by sudden surge of voltage, especially in Navy application, thus further secure the reliability of its critical components and the system itself.

DS

System
Processor Intel® 9th Gen. Xeon® E-2276ML (12M Cache, up to 2.0/4.2 GHz)
Memory type 4 x DDR4 2666MHz up to 128GB
Chipset CM246
Display
Processor Graphics Intel® UHD Graphics P630
Storage
Storage(1) NVMe M.2 up to 2TB
Interface Card
Digital Input/Output 8 bit digital I/O , split into 2 groups of 4 , Programmable I/O,

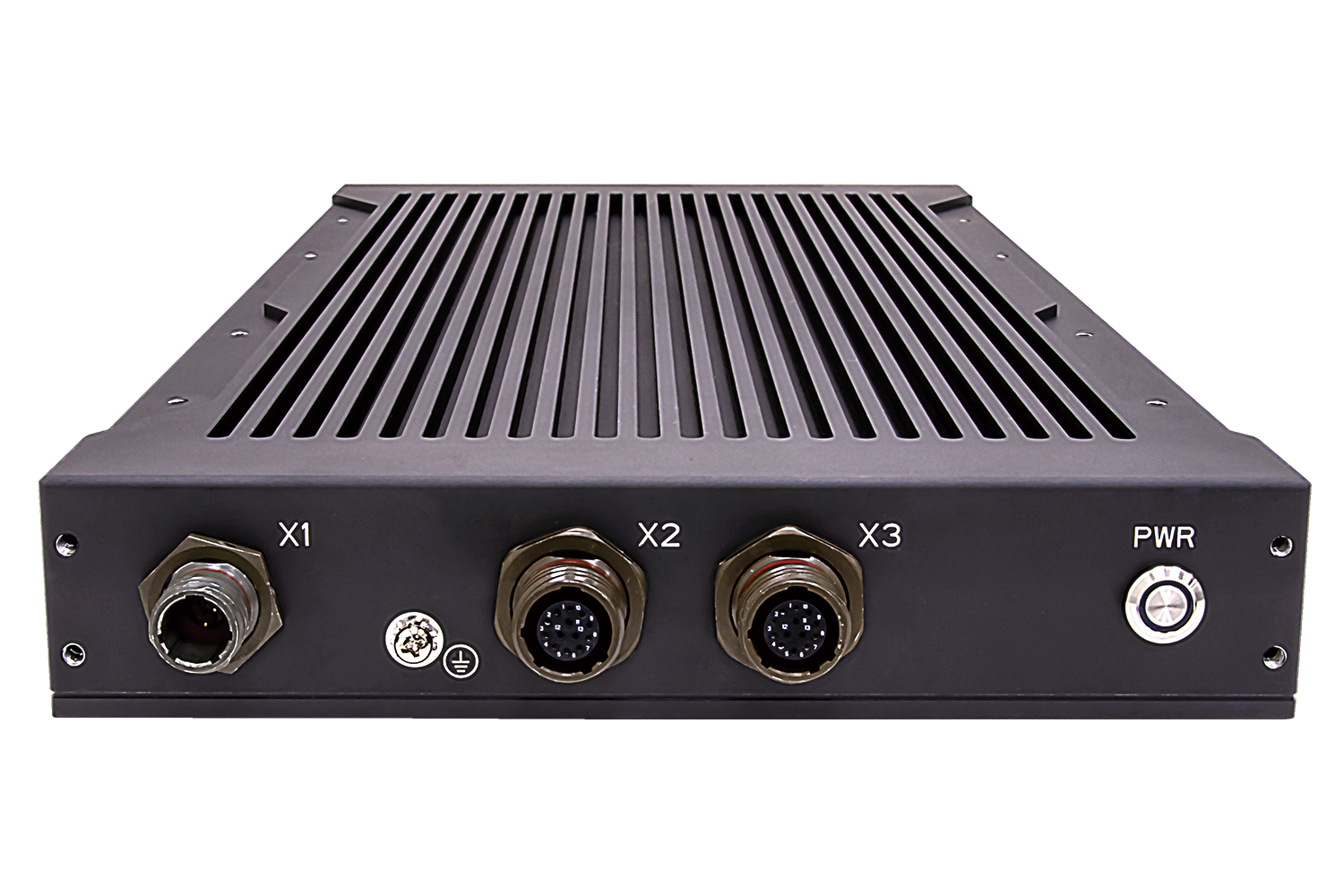

Front I/O
X1 1 x DC   (Amphenol TV07RW09-98P)
X2    1 x LAN  (Amphenol TV07RW-9-09S)
X3 1 x LAN  (Amphenol TV07RW-9-09S)
  Power Button with LED backlight
Rear I/O
X4 1 x mini DP  (Amphenol TV07RW-13-35S)
X5 1 x mini DP  (Amphenol TV07RW-13-35S)
X6 1 x USB 3.0  (Amphenol USB3FTV7AZNF312)
X7 1 x USB 3.0  (Amphenol USB3FTV7AZNF312)
Power Requirement
Power Input MIL-STD 461 18V~36V

Mechanical and Environment

Dimension (W x D x H)      220 x 400 x 44 mm
Chassis Aluminum Alloy, Corrosion Resistant
Finish Anodic aluminum oxide (Color Iron gray)
Cooling Natural Passive Convection/Conduction. No Moving Parts
Ingress Protection IP65
MIL-STD-810 Testing Methods (Operating)

Method 502.5  Procedure 2

Low Temperature

-40°C, 4 hours, ±3°C

Method 501.5  Procedure 2

High Temperature

+70°C, 4 hours, ±3°C

Method 507.5 Humidity 85%-95% RH without condensation, 24 hours/ cycle, conduct 10 cycles.
Method 514.6 Vibration 5-500 Hz 5.0 g rms, 30 mins by Z axis.

5-500 Hz 7.0 g rms, 30 mins by X/Y axis
Method 516.6 Shock 50 g , 11ms.

MIL-STD-810 Testing Methods (None-Operating)

Method 502.5

Low Temperature (Storage)

-40°C, 4 hours, change rate:≦20°C/ Hour

Method 501.5

High Temperature (Storage)

+85°C, 4 hours, change rate:≦20°C/ Hour

Method 514.6

Vibration

5-500 Hz 7.0 g rms, 30 mins by Z axis.

5-500 Hz 10.0 g rms, 30 mins by X/Y axis

Method 516.6

Shock

75 g, 6ms.

MIL-STD-461 Testing Methods (EMC)

CE102 basic curve

Power Leads

10kHz - 30 MHz

RE102

Electric Field

(1.5 MHz) - 30 MHz - 5 GHz

RS103

Electric Field

1.5 MHz - 5 GHz, 50 V/m equal for all frequencies

Radiated Susceptibility

2 MHz - 80 Mhz  50V/m  equal for all frequencies

80 MHz - 3 GHz  50V/m  equal for all frequencies

3 GHz - 5 GHz,  50V/m  equal for all frequencies

EN61000-4-2

Electromagnetic Compatibility

Air discharge: 8 kV, Contact discharge: 6kV

EN 61000-4-3

Electromagnetic Compatibility

10 V/m

EN 61000-4-4

Electromagnetic Compatibility

Signal and DC-Net: 1 kV

EN 61000-4-5

Electromagnetic Compatibility

Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV

EN55022

Radio Disturbance

Class A

* Option Test item: CS101/CS114/CS115/CS116/RS101/RS103/RE103/CE106

MIL-STD-1275 Testing Methods

Steady State

20V~33V

Surge Low

18V/500 ms

Surge High

100V/500 ms

Others

Reliability

No Moving Parts; Passive Cooling.

Designed & Manufactured using ISO 9001/2005 Certified Quality Program.

Operating Temp.

-40 to +70°C (ambient with air flow)

Storage Temp.

-40 to +85°C

Relative Humidity

5% to 95%, non-condensing.
