THOR200-X11-TX
2U/2 Military GPU Server
- MIL-STD810 Thermal, shock, vibration,
- Humidity / EMI / EMC conditions
- Intel® Tiger Lake-H i7-11850HE Processors (up to 8 cores)
- NVidia RTX A2000 (3328 CUDA)
- Up to 64GB DDR4 SO-DIMM
- 1 x single 3G-SDI support 1080p60 H.264 H/W Encode
- 2 x isolated CANbus 2.0B
- 2 x Swappable SSD Tray
- Compliant with MIL-STD-810
- 18V~36V MIL-STD-461/MIL-STD-1275
Download
- Technical Profile
- Specifications
- Introduction
-
THOR200-X11-TX is driven by Intel 11th Gen. Tiger Lake-H processor. Tiger Lake processor supports outstanding CPU and graphics performance with up to 8 cores and 16 threads. THOR200 highlight on its rugged design and high functionality, the system especially installed MIL-STD D38999 connector and full IP65 protection allow system withstand in any kind of harsh environment. THOR200-X11-TX supports extended temperature from -40°C to 60°C and wide range 18V~36V DC input can protect system from damages caused by sudden surge of voltage, thus further secure the reliability of its critical components and the system itself

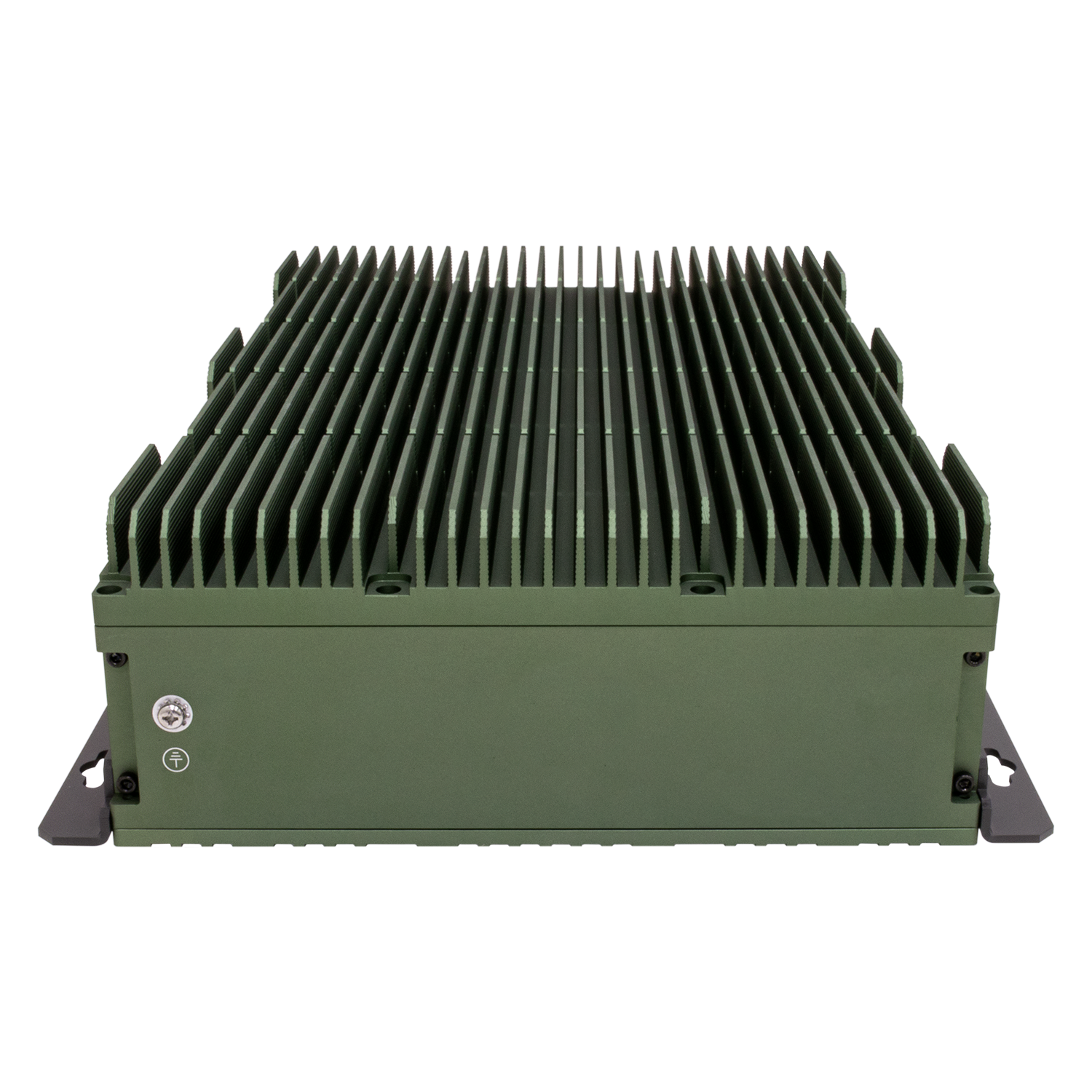

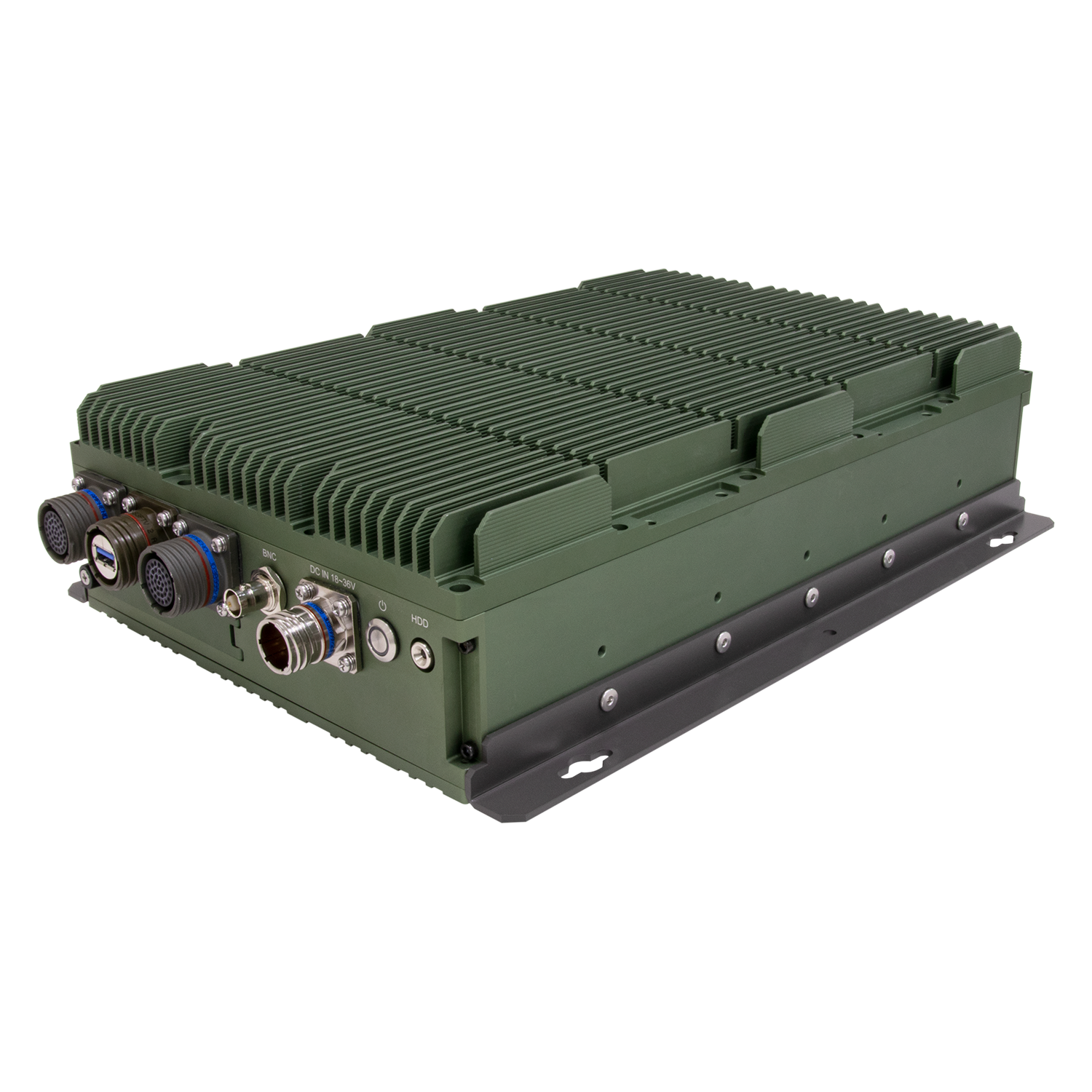

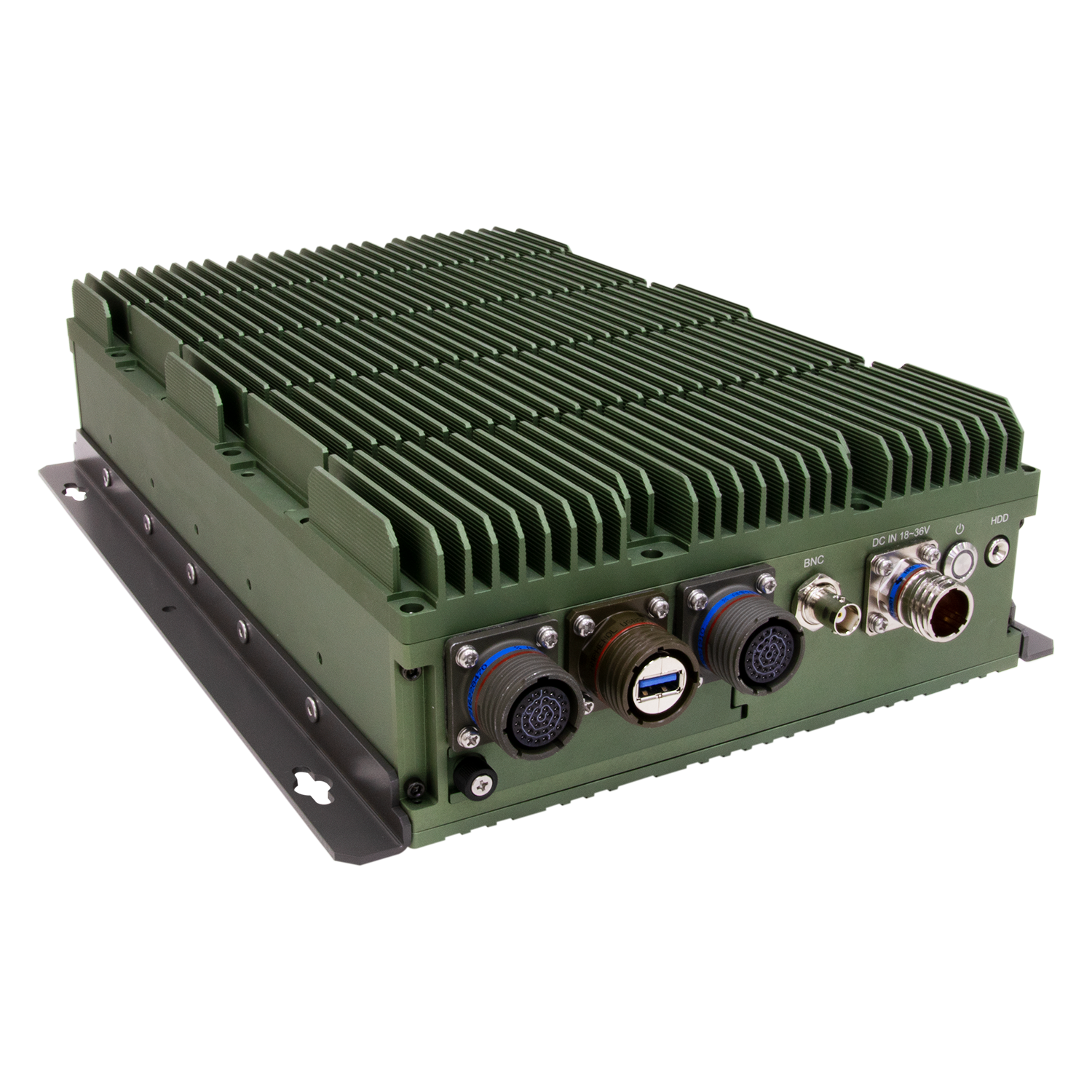

Appearance
| System | |
|---|---|
| Processor |
Intel® Core™ i7-11850HE, 2.6(4.7) GHz, 24MB, 45W, 8C/16T |
| Memory type | Up to 64GB DDR4 SO-DIMM |
| Chioset | Intel® QM580E |
|
Graphic |
Embedded NVIDIA® RTX™ A2000 - Ampere Architecture - 2560 CUDA® cores, 20 RT Cores, and 80 Tensor Cores - 4GB GDDR6 memory, 128-bit |
| TPM | Chipset: Infineon, Type:TPM 2.0 |
| BIOS | AMI UEFI BIOS |
|
USB |
4 x USB 3.0, 2 x USB 2.0 |
|
Ethernet |
2 x 10/100/1000 Ethernet Ports (1 X LAN form mini-PCIE LAN module card) |
| HD-SDI | 1 x single 3G-SDI support 1080p60 H.264 H/W Encode |
|
Power Type |
18V ~ 36V DC IN MIL-STD 461 EMI DC Module |
|
Storage |
2 x2.5” SATA SSD (2x Swappable SSD Tray) |
|
COM Port |
2 x RS232/422/485 (function select by jumper) |
| CANbus | 2 x isolated CANbus 2.0B |
|
Operating Temperature |
-40 to +60 C |
|
Dimension |
220mm(W) x 350mm(L)x88mm(H) |

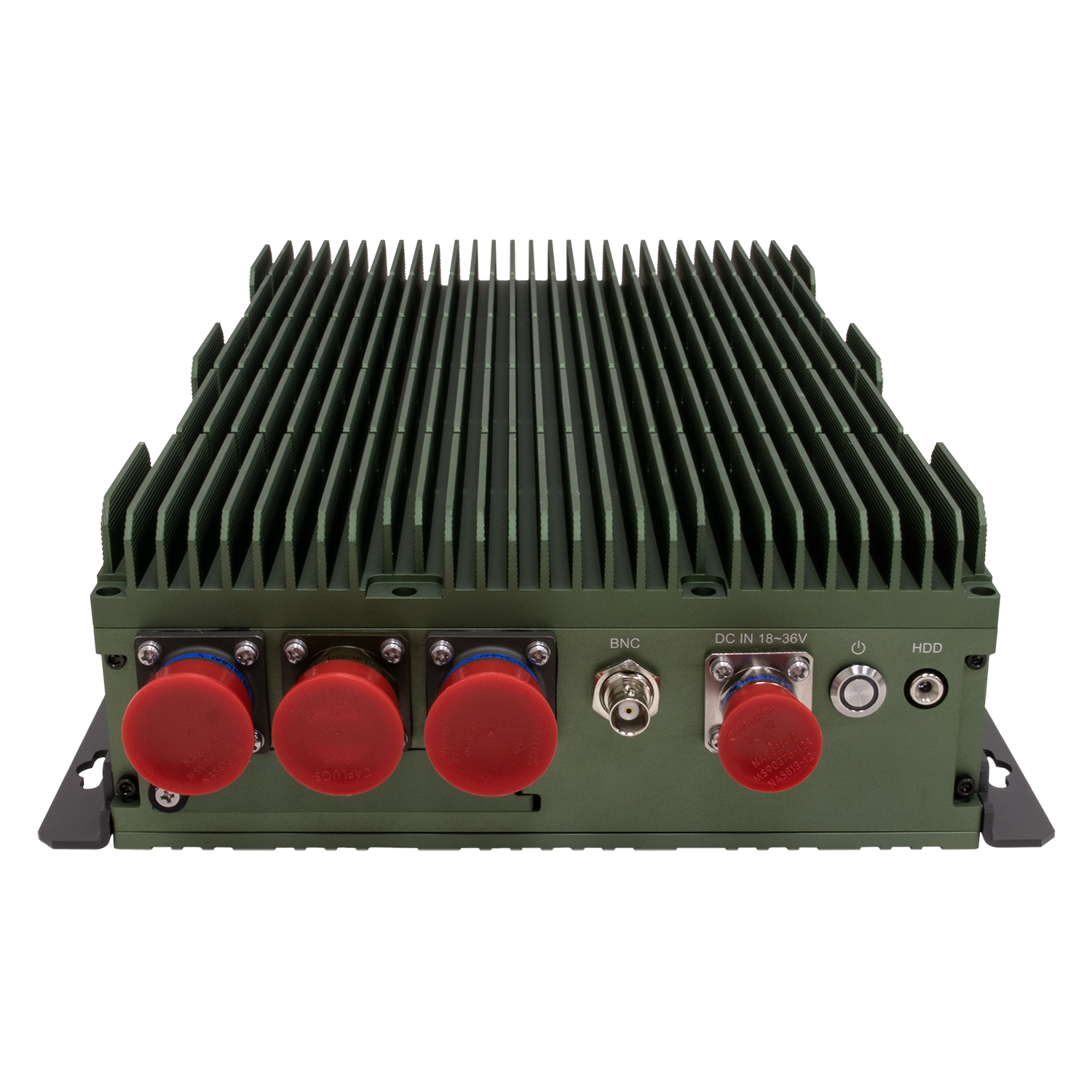

| Front I/O | |
|
X1 |
4 x USB 2.0, CANbus x 2, VGA with D38999 connector |
|
X2 |
1 x USB 3.0 with D38999 connector |
|
X3 |
2 x LAN 2x RS232 with D38999 connector |
|
X4 |
HD-SDI with BNC connector |
|
X5 |
1 x DC-in with D38999 connector |
| Environmental | |
|
Standard |
MIL-STD-810 MIL-STD-461/ MIL-STD-1275 12V~36V DC-Input |
