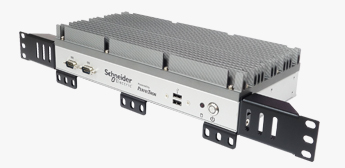

SR10-SCH-X3 - Intel® Core i7 Microgrid Computer

 Introduction

SR10-SCHX3 is a high efficiency and powerful computing system driven by the Intel 8th Gen, 6 Core, 12 Thread processor, that can successfully operate with a high speed efficiency processing program. Besides, there are three independent display output ports supporting the system, including one Display Port, one HDMI, and one DVI-D. What’s more, SR10-SCHX3 is equipped with two USB2.0 and four USB3.1, provide the best input and output efficiency. The system also supports a wide range DC-in from 12V to 24V, and accepts the extend range of temperature from -20°C to 60°C. SR10-SCHX3 passes the MIL-STD 810G compliance which can operate successfully in any harsh environments.

Thermal solution for fanless system design

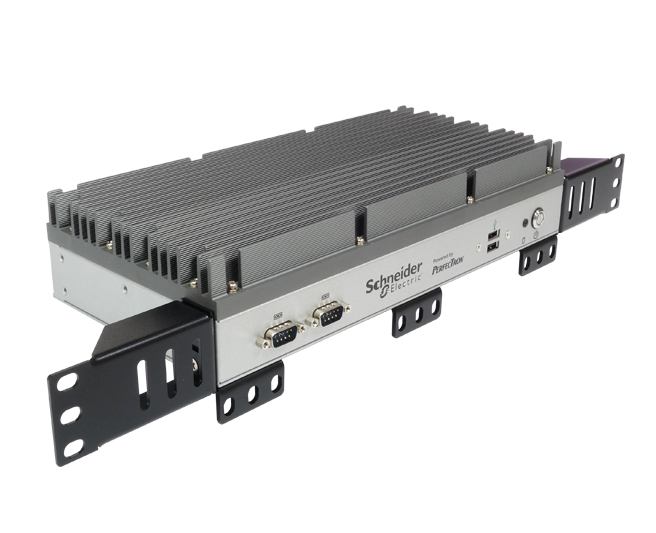

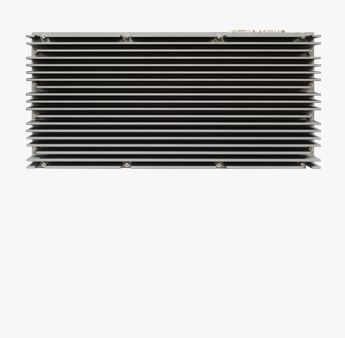

STACKRACK designs a unique enclosure that is able to stack together both horizontally and vertically. The aluminum heat sink enclosure allows perfect heat dissipation. STACKRACK exclusively adopts special heat radiating material and combining with special CNC cutting, further forged into a lavish sophisticated metal. Apart from the special heat sink enclosure, SR10-SCHX3 innovatively adopts two kinds of copper heat spreader. The shape and the size of the spreader are tailor-made based on the heat sources placement of CPU module and graphic module. In view of the gap difference between motherboard and heat sink, STACKRACK builds two heat spreaders in different thicknesses. Combining all these exclusive thermal designs can alternatively replace traditional fan, and also ensures high reliability and stability while working under wide range temperature from -20°C up to 60°C.





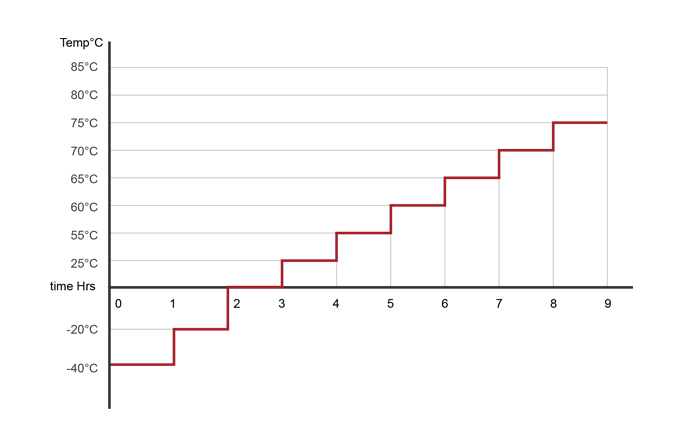

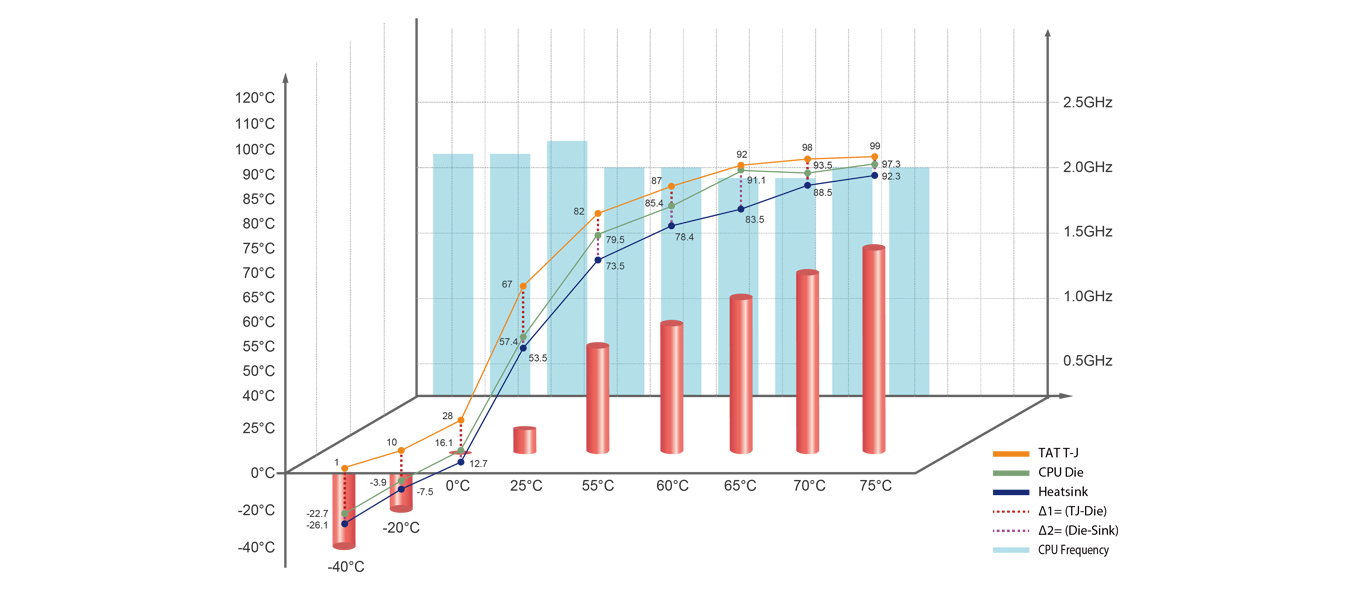

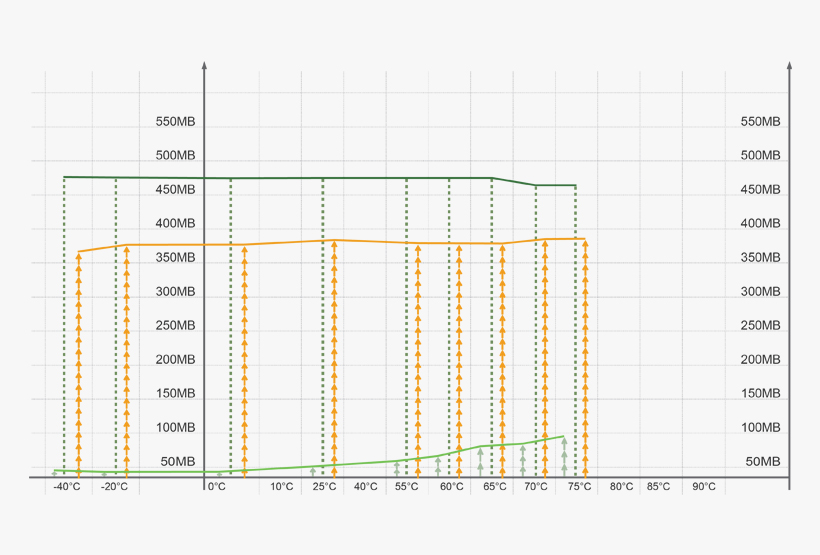

MIL-STD-810G standard designed for shock and vibration

SR100 is designed to meet MIL-STD-810G standard for shock and vibration. MIL-STD-810G standard is considered the upmost principle, which guarantees the system achieves superior quality and stability when operate under extreme harsh environment. We have conducted the test with series of testing procedures for resistance to shock, vibration, dust, humidity, and extreme temperatures.



1. Intel 8th Gen processor, 6 Core, 12 Thread supports

Intel 8th Core i7-8700T Coffee Lake processor with Intel Turbo Boost Technology that the operating Frequency can increase up to 4.0 GHz. The processor equipped with 12MB SmartCache to decrease the overall cache miss rate. The Intel 8th Core i7-8700T processor effectively operates with 6 Core and 12 Thread, which supports the best high speed operations and processes.

2. Flexible display output & triple display

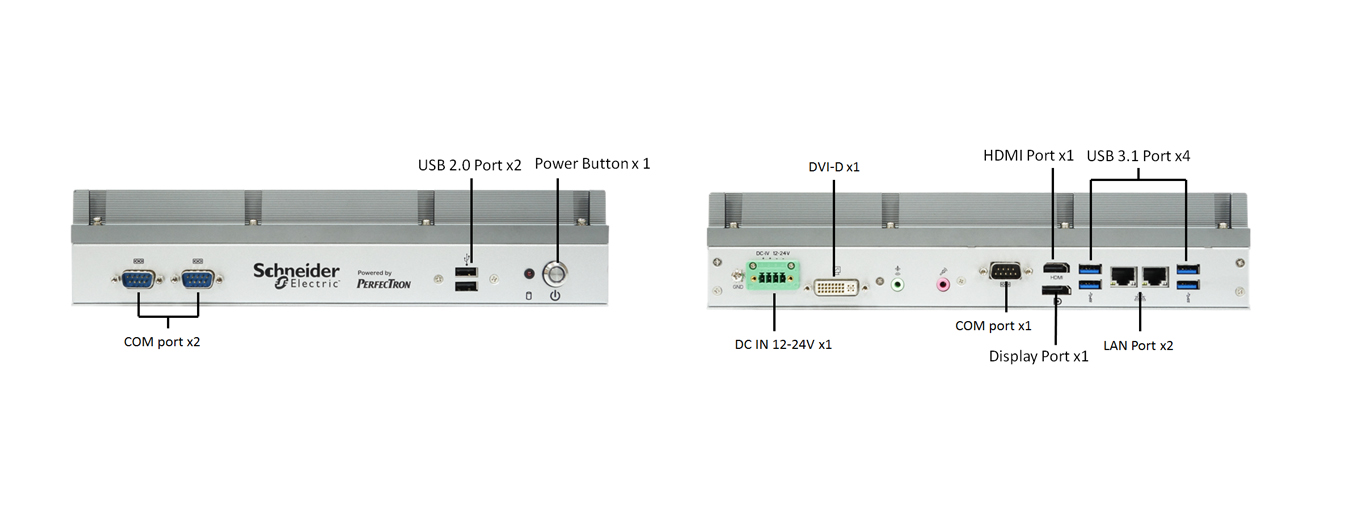

The various display output ports of SR10-SCHX3 supports 1 x DisplayPort, 1 x HDMI, and 1 x DVI-D with Full HD 1080P resolution display. The system can not only provide the single desktop display but also allow triple screens display. The high flexible display output can accept diverse applications and provide the best display performance.

The integrated UHD Graphics supports three independent displays with 4k resolution each, and comes with hardware-based video encoding and decoding up to 4k. It features DVI, HDMI and DisplayPort outputs to provide advanced solutions for imaging, machine vision, infotainment, medical and gaming machines.

3. USB 3.1 Gen 2

SR10-SCHX3 is equipped with USB 3.1 Gen 2, which dramatically enhance the transfer rate up to 10 Gbps, which means it efficiently saves the data transfer processing time. For example, USB 3.1 Gen 2 only needs to spend 4.13s for transferring a 5GB document, but USB 3.0 needs to spend 10s for transferring a 5GB document. Besides, USB 3.1 Gen 2 improves the Encoded Mode to 128b/132b, successfully decrease the dissipation rate of data transfer to 3%.
