THOR100-X4-D10E
MIL-810 Military Computer - 1U ½ Size MIL-STD 810/461 Rugged System with Intel® Coffee Lake Xeon E-2276ML Processor, MIL-STD 461 EMI 18V~36V, Extended Temp. -40°C to 70°C

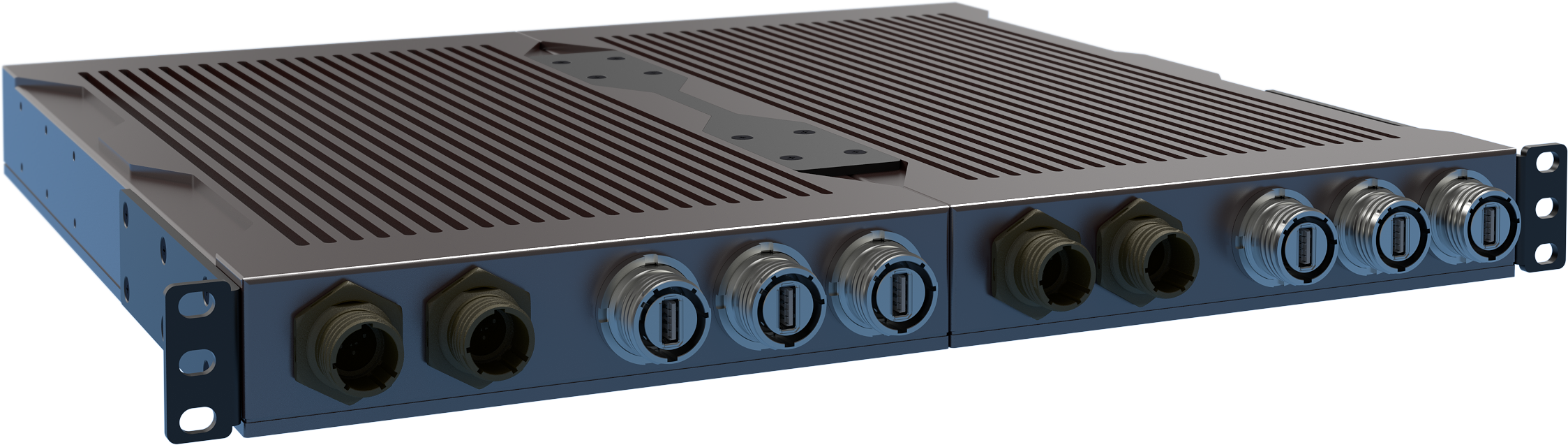

- 1U/half Size Rugged Military Server
- Intel® Coffee Lake Xeon® E-2276ML
- DDR4 Up to 128GB , NVMe Up to 2TB
- Military D38999 Connectors Support : 2 x mini DP, 3 x LAN, 3 x USB 3.0, 8xDIO( 4xDI/4xDO)
- Design for Naval Defense System , withstand 75G rms Shock
- 18V~36V DC-in, MIL-STD-461 EMI Filter
- Extended Temperature:-40°C to +70°C
Download
- Technical Profile
- Specifications
- Introduction
-
The nature of the military operation and existence is changing due to technology. The performance, reliability, and stability of the application become important, and so is the durability of the application to the operating temperatures, shock, and vibration requirements of challenging environments.

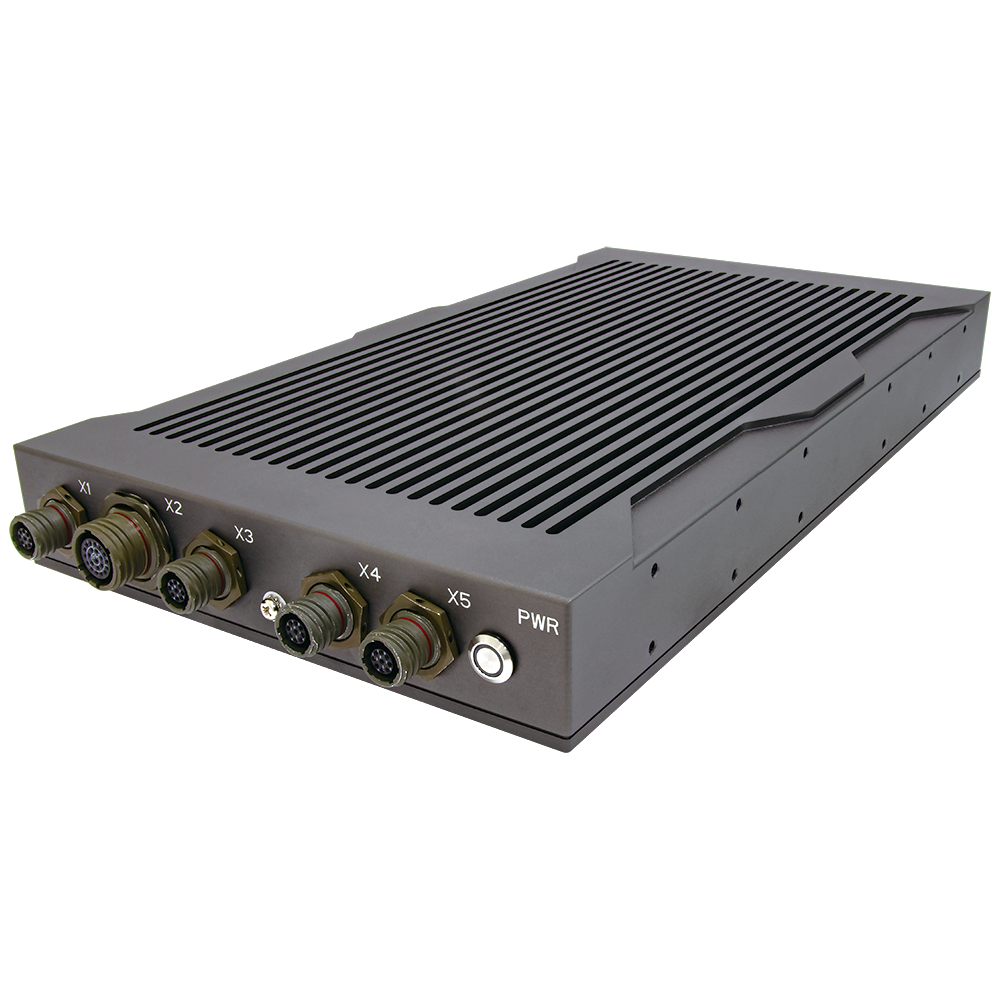

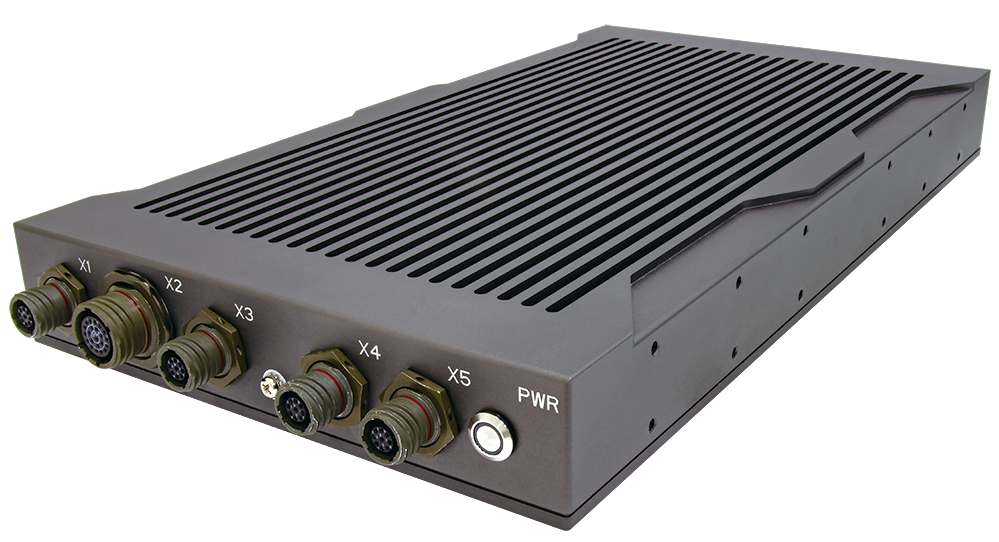

THOR100-X4 – 1U Half Size Rugged Mission MIL-STD 810 Computer is built to meet strict size, weight, and power (SWaP) requirements and to withstand harsh environments, including temperature extremes, shock/vibe, sand/dust, and salt/fog. The THOR100-X4 equipped Ultra-High Performance Intel® Xeon® E-2276ML is fully qualified IP65 with D38999 connectors which can offer the most powerful performance and ready to handle harsh environments in battle-field, such as sustain 75 g shock in the maritime applications.
In order to satisfy the requirement of Naval System Application and reducing the SWaP, THOR100X-4 is driven by powerful processor, and equipped with high speed serial interconnects 3 x LAN, 1 x DC, 8xDIO( 4xDI/4xDO), 2 x mini DP, and 3 x USB3.0. It also withstand extended temperature -40°C to +70°C and wide voltage input MIL-STD 461 18V~36V, to make it an ideal solution for Military type rugged applications.

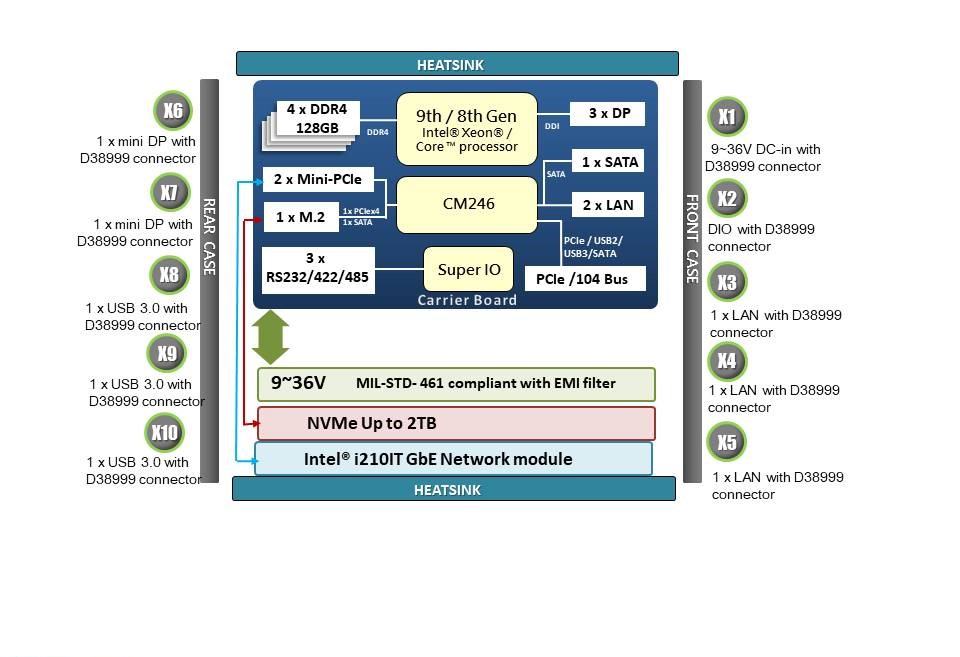

- IT Block Diagram
-
- Feature
-
Computing Features
Computing Features
- Xeon E-2276ML (up to 4.20 GHz), 25W- 4 x 260 Pin DDR4 SO-DIMM (up to 128GB)
- 1 x M.2 2280 M-key (SATA/PCIe 3.0x4 NVMe)
I/O and Expansion Options
- X1 : One 9V~36V DC-in with D38999 connector
- X2 : One 3 DIO with D38999 connector
- X3 : One LAN with D38999 connector
- X4 : One LAN with D38999 connector
- X5 : One LAN with D38999 connector
- X6 : One mini DP with D38999 connector
- X7 : One mini DP with D38999 connector
- X8 : One USB 3.0 with D38999 connector
- X9 : One USB 3.0 with D38999 connector
- X10 : One USB 3.0 with D38999 connector
Environment
-MIL-STD-461 wide range 9-36V DC power module with EMI Filter
-MIL-STD-810, 461 compliant
Operates up to extended temp -40°C to +70°C
- Robust Product Design Ready For Military Application
-

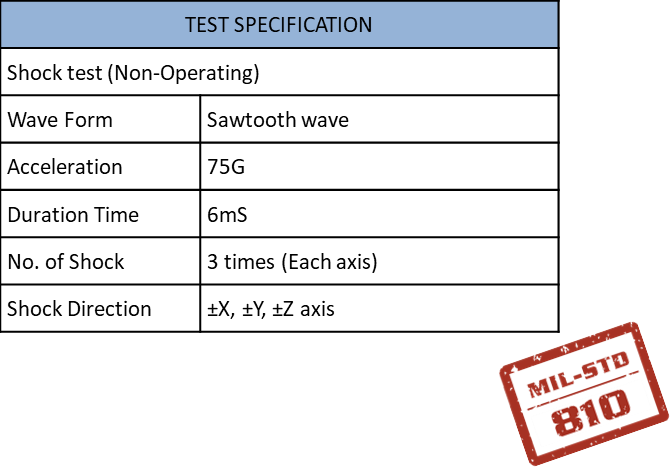

Design for Naval Defense System; Withstand MIL-STD-810 Shock Up to 75G rms
In Naval Defense System, the application must be withstand detonating explosives in water and assessing the resulting high-impact mechanical shock. MIL-STD-810 standard is considered the upmost principle of the environmental design. With using the shock tester, it can analyze the product ability to tolerate the strong external stress and the degradation of structural weaknesses to quickly obtain the data of structure strength, anti-shock appearance and anti-drop. The shock tester is using the sawtooth wave to evaluate the product reliability and monitor the consistency of production. To assure the application is supporting a mission-critical hardware, THOR100-X4 are designed to meet with the strict standards of MIL-STD 810 shock up to 75G rms.
MIL-STD-461 EMI Filter, Wide Voltage Power Input 18V~36V
To withstand under any kinds of application challenges, system with wide range designed is brings maximum reliability and stability. THOR100-X4 is designed with MIL-STD-461 EMI, protecting against voltage surges, spikes and transients, and even electromagnetic interference. Wide voltage power input design (18~36V) can protect the system from damages caused by sudden surge of voltage, especially in Navy application, thus further secure the reliability of its critical components and the system itself.
| System | ||
|---|---|---|
| Processor | Intel® 9th Gen. Xeon® E-2276ML (12M Cache, up to 2.0/4.2 GHz) | |
| Memory type | 4 x DDR4 2666 MHz up to 128 GB | |
| Chipset | CM246 | |
| Display | ||
| Processor Graphics | Intel® UHD Graphics P630 | |
| Storage | ||
| Storage(1) | NVMe M.2 up to 2TB | |
| Interface Card | ||
| Digital Input/Output | 8 bit digital I/O , split into 2 groups of 4 , Programmable I/O, | |

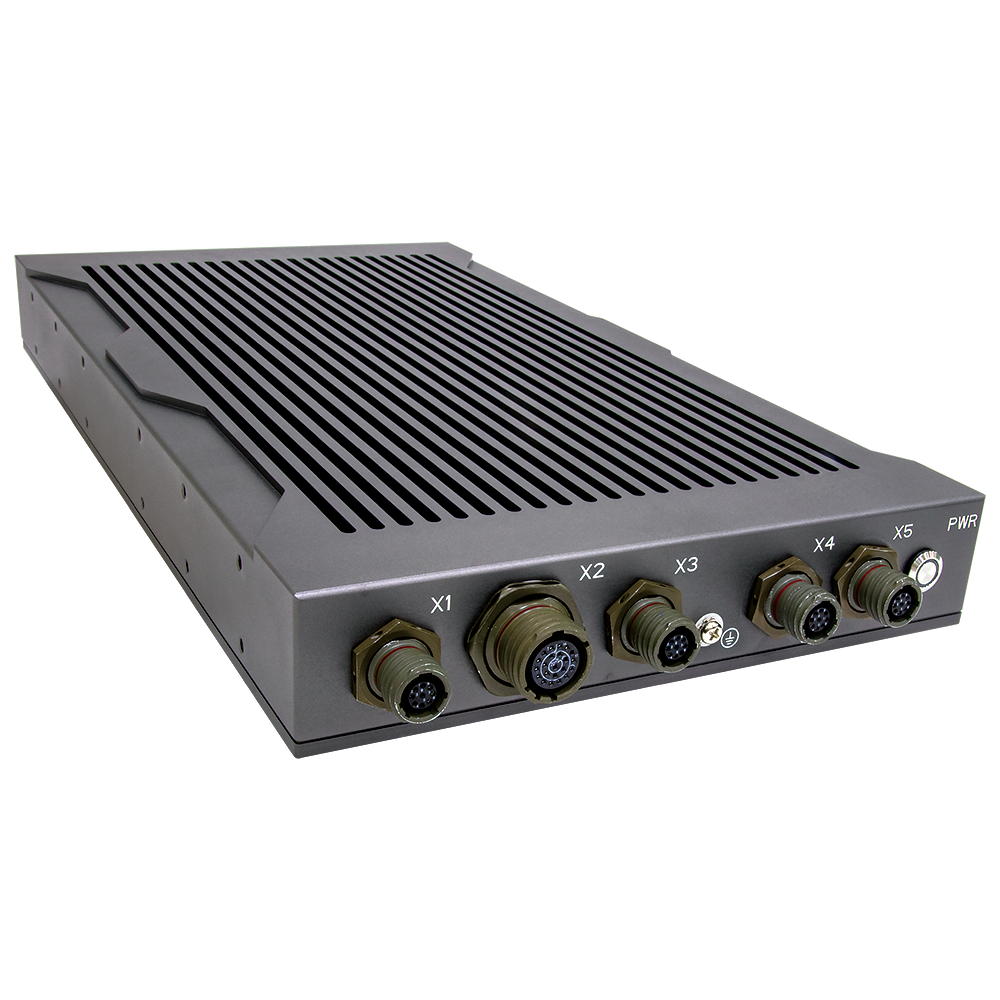

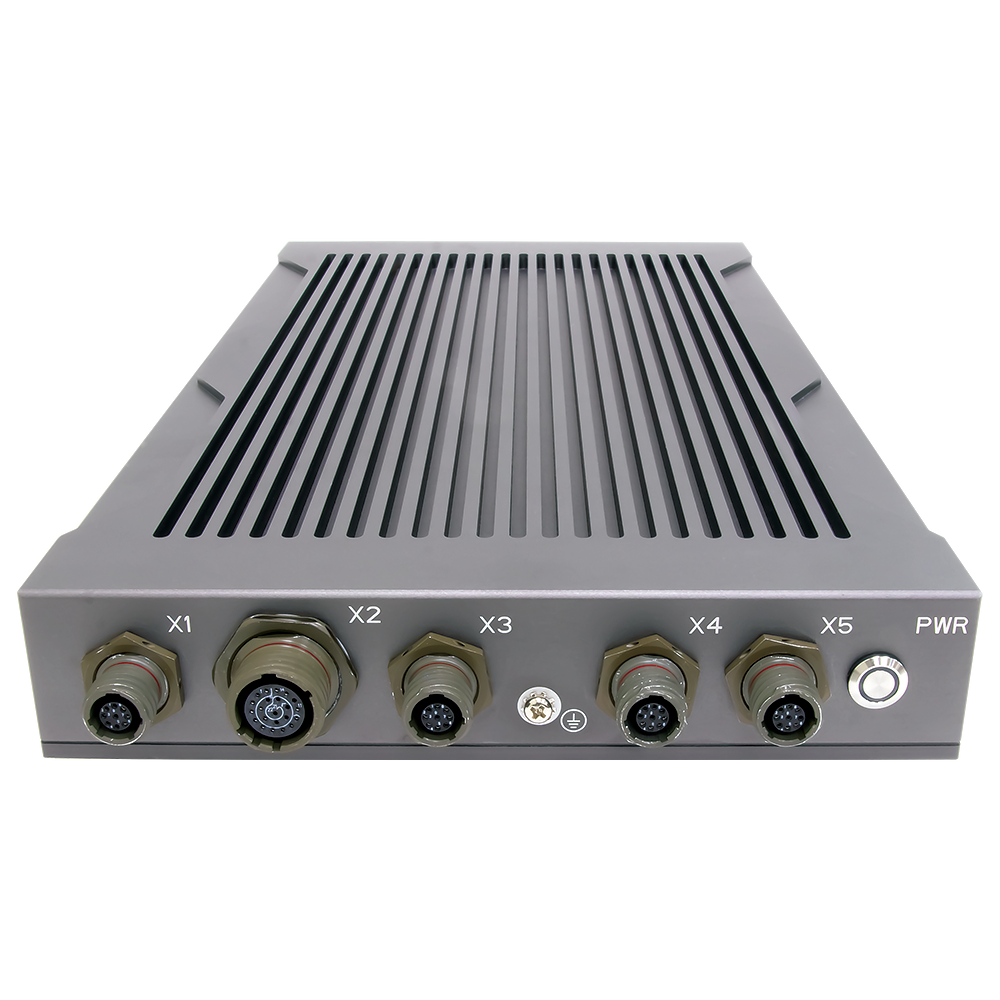

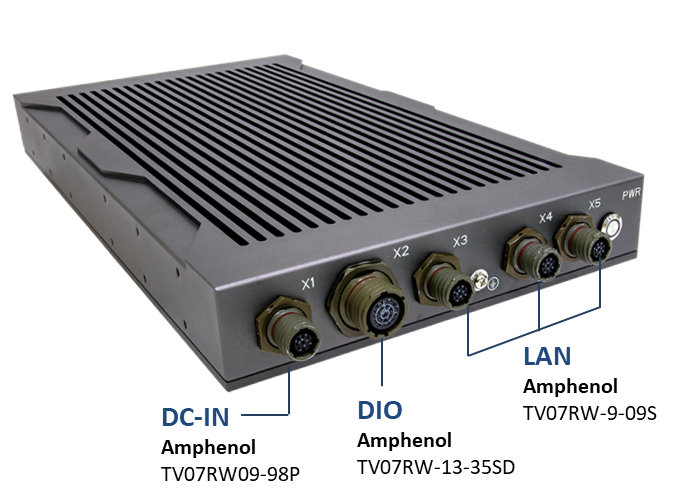

| Front I/O | ||
| X1 | 1 x DC (Amphenol TV07RW09-98P) | |
| X2 | 1 x 3 DIO, Mic-In/Line Out (Amphenol TV07RW-13-35SD) | |
| X3 | 1 x LAN (Amphenol TV07RW-9-09S) | |
| X4 | 1 x LAN (Amphenol TV07RW-9-09S) | |
| X5 | 1 x LAN (Amphenol TV07RW-9-09S) | |
| Power Button with LED backlight | ||

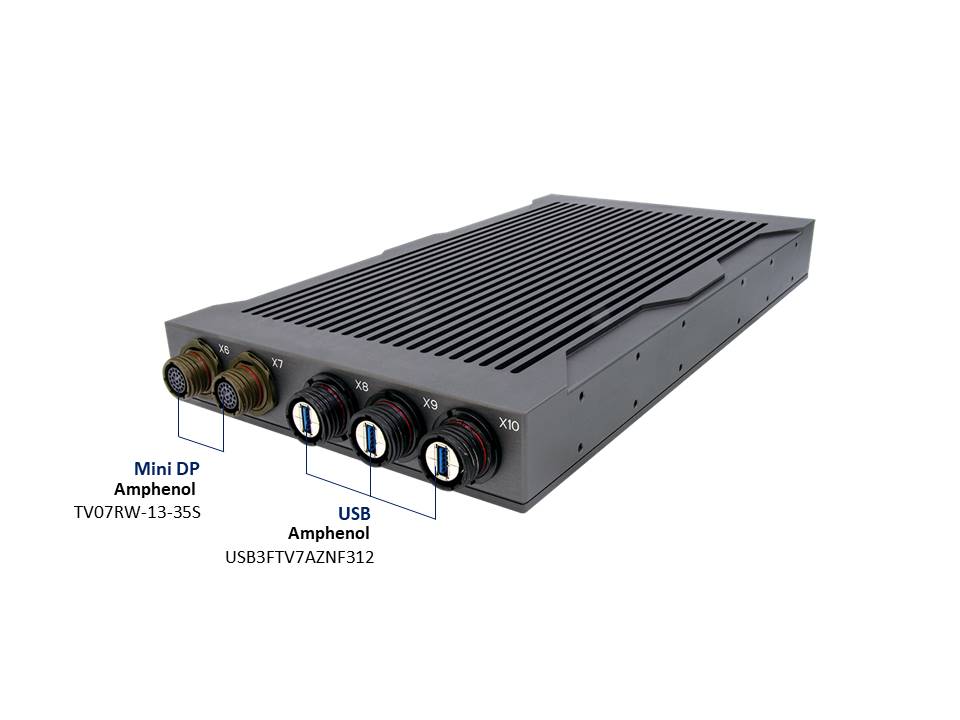

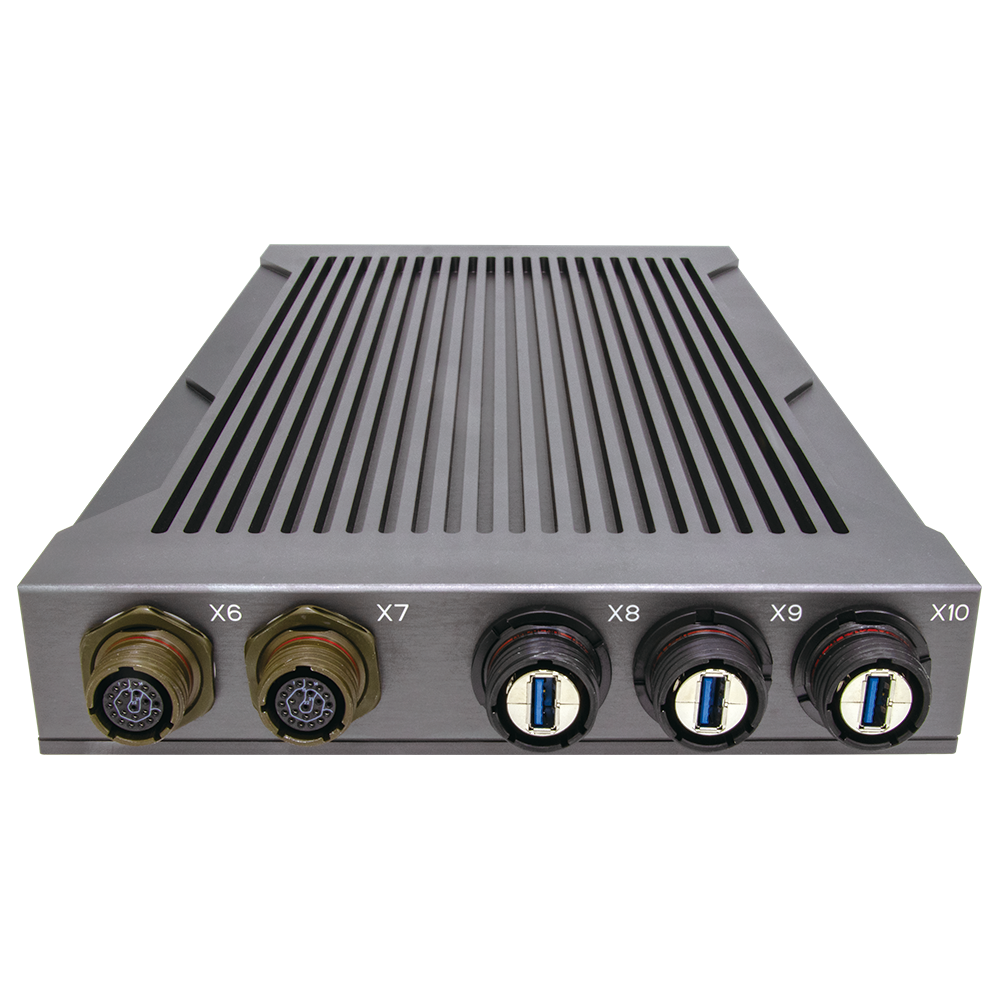

| Rear I/O | ||
| X6 | 1 x mini DP (Amphenol TV07RW-13-35S) | |
| X7 | 1 x mini DP (Amphenol TV07RW-13-35S) | |
| X8 | 1 x USB 3.0 (Amphenol USB3FTV7AZNF312) | |
| X9 | 1 x USB 3.0 (Amphenol USB3FTV7AZNF312) | |
| X10 | 1 x USB 3.0 (Amphenol USB3FTV7AZNF312) | |
| Power Requirement | ||
| Power Input | MIL-STD 461 18V~36V | |
|
Mechanical and Environment |
||
| Dimension (W x D x H) | 220 x 400 x 44 mm | |
| Chassis | Aluminum Alloy, Corrosion Resistant | |
| Finish | Anodic aluminum oxide (Color Iron gray) | |
| Cooling | Natural Passive Convection/Conduction. No Moving Parts | |
| Ingress Protection | IP65 | |
| MIL-STD-810 Testing Methods (Operating) | ||
|
Method 502.5 Procedure 2 |
Low Temperature |
-40°C, 4 hours, ±3°C |
|
Method 501.5 Procedure 2 |
High Temperature |
+70°C, 4 hours, ±3°C |
| Method 507.5 | Humidity | 85%-95% RH without condensation, 24 hours/ cycle, conduct 10 cycles. |
| Method 514.6 | Vibration | 5-500Hz 5.0 g rms , 30mins by Z axis. 5-500Hz 7.0 g rms , 30mins by X/Y axis |
| Method 516.6 | Shock | 50 g , 11ms. |
|
MIL-STD-810 Testing Methods (None-Operating) |
||
|
Method 502.5 |
Low Temperature (Storage) |
-40°C, 4 hours, change rate:≦20°C/ Hour |
|
Method 501.5 |
High Temperature (Storage) |
+85°C, 4 hours, change rate:≦20°C/ Hour |
|
Method 514.6 |
Vibration |
5-500Hz 7.0 g rms, 30mins by Z axis. 5-500Hz 10.0 g rms,30mins by X/Y axis |
|
Method 516.6 |
Shock |
75 g, 6ms. |
|
MIL-STD-461 Testing Methods (EMC) |
||
|
CE102 basic curve |
Power Leads |
10kHz - 30 MHz |
|
RE102 |
Electric Field |
(1.5 MHz) - 30 MHz - 5 GHz |
|
RS103 |
Electric Field |
1.5 MHz - 5 GHz, 50 V/m equal for all frequencies |
|
Radiated Susceptibility |
2 MHz - 80 Mhz 50V/m equal for all frequencies |
|
|
80 MHz - 3 GHz 50V/m equal for all frequencies |
||
|
3 GHz - 5 GHz, 50V/m equal for all frequencies |
||
|
EN61000-4-2 |
Electromagnetic Compatibility |
Air discharge: 8 kV, Contact discharge: 6kV |
|
EN 61000-4-3 |
Electromagnetic Compatibility |
10 V/m |
|
EN 61000-4-4 |
Electromagnetic Compatibility |
Signal and DC-Net: 1 kV |
|
EN 61000-4-5 |
Electromagnetic Compatibility |
Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 kV |
|
EN55022 |
Radio Disturbance |
Class A |
|
* Option Test item: CS101/CS114/CS115/CS116/RS101/RS103/RE103/CE106 |
||
|
MIL-STD-1275 Testing Methods |
||
|
Steady State |
20V~33V |
|
|
Surge Low |
18V/500ms |
|
|
Surge High |
100V/500ms |
|
|
Others |
||
|
Reliability |
No Moving Parts; Passive Cooling. Designed & Manufactured using ISO 9001/2005 Certified Quality Program. |
|
|
Operating Temp. |
-40 to +70°C (ambient with air flow) |
|
|
Storage Temp. |
-40 to +85°C |
|
|
Relative Humidity |
5% to 95%, non-condensing. |
|
