THOR200-N8
2U Half Military 8 Ports Switch Server
- Intel® Ice Lake-D D-2712T Processor
- Up to 256GB Registered ECC RDIMM
- Or Up to 512GB LRDIMM
- 4 x GbE, 2 x 10GbE, 2 x 25GbE
- Compliant with MIL-STD-810, MIL-STD 461
- 18V~36V DC-IN EMI Filter
- Operating temp. -40 to +60°C
Download
- Technical Profile
- Specifications
- Introduction
-
In the high-speed and demanding military arena, robust and secure network connectivity plays a pivotal role in facilitating seamless communication and efficient data sharing across diverse devices. Our Switch Server Solution is designed to empower you with unparalleled performance and reliability.
THOR200-N8, boasted up to 2x25GbE ports and 2x10GbE ports, ensuring lightning-fast data transmission capabilities. The server is powered by the Xeon D-2712T processor, renowned for its exceptional processing power and efficiency. With support for up to 256GB Registered ECC RDIMM, this server delivers enhanced memory performance, allowing for optimized data handling.
THOR200-N8 provides military personnel with the means to make swift and informed decisions, leveraging its superior data transfer speeds. By leveraging this advanced technology, operational efficiency can be significantly improved, giving you an undeniable advantage on the battlefield.

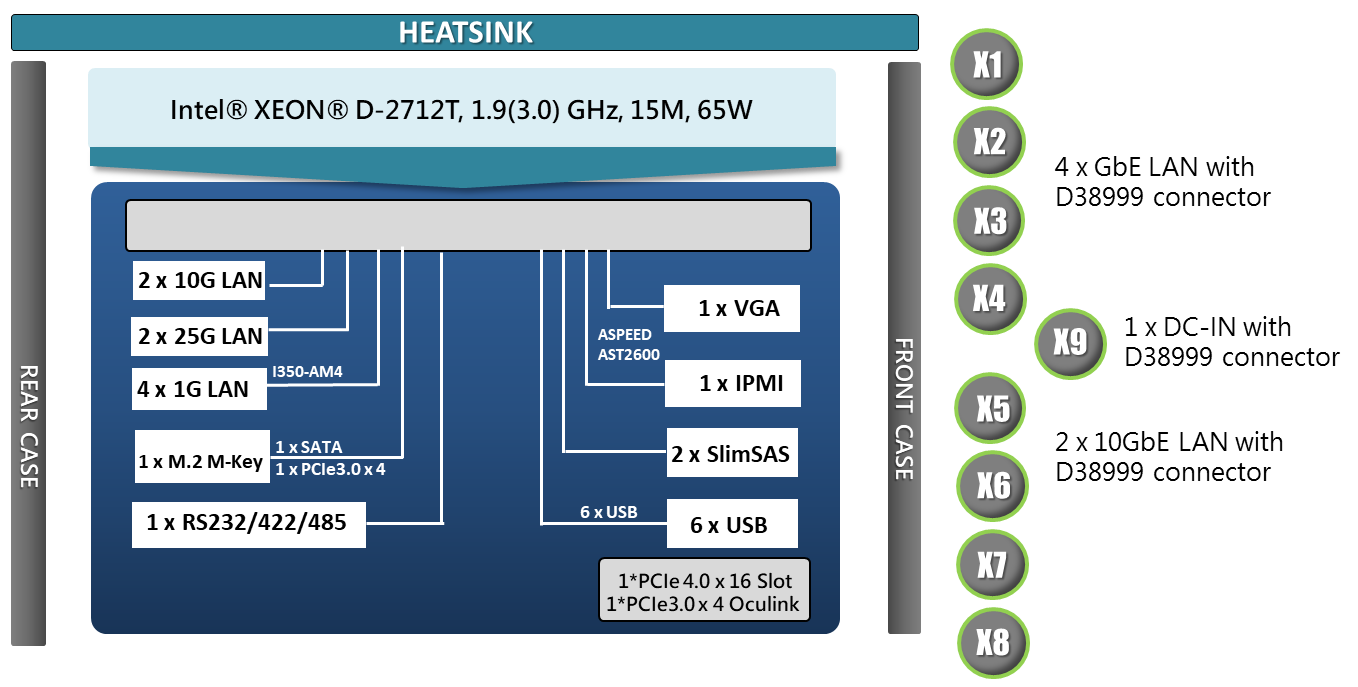

- Block Diagram
-

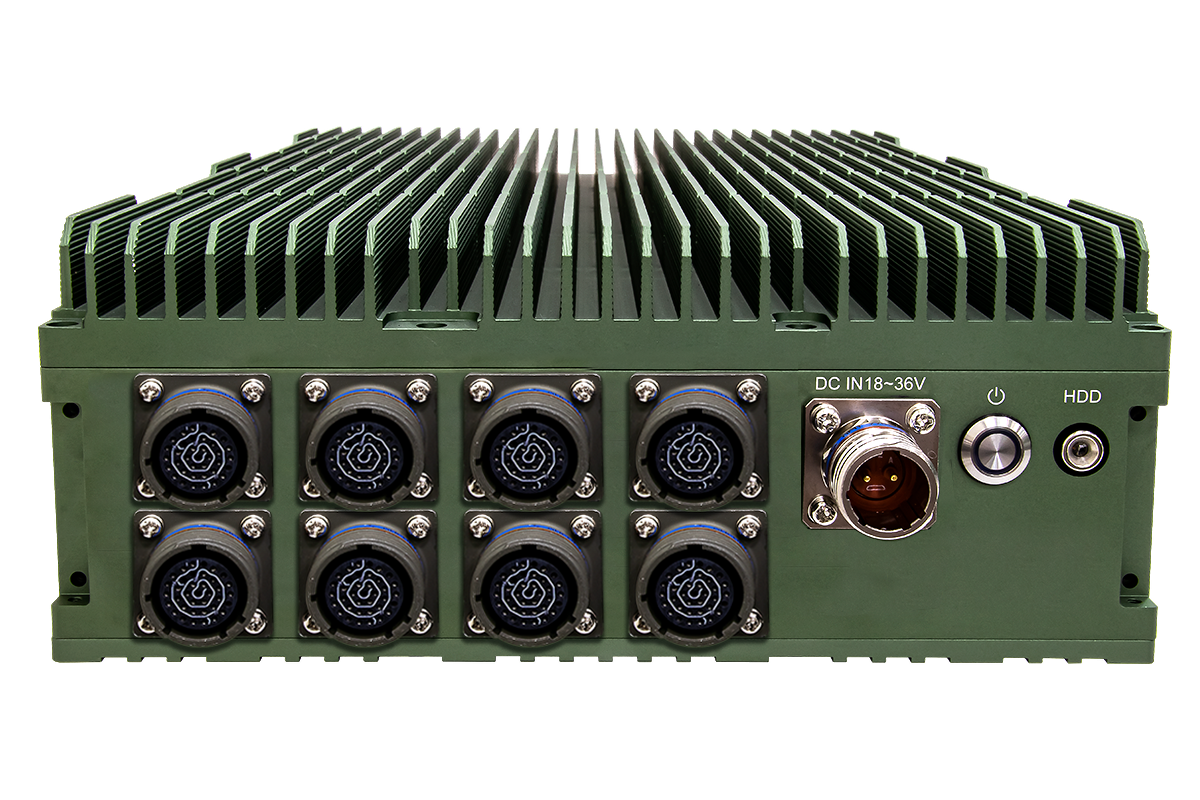

- Appearance
| System | |
|---|---|
| Processor |
Intel® Xeon® D-2712T, 1.9(3.0) GHz, 15MB, 65W, 4C/8T |
| Memory Type | Up to 256GB Registered ECC RDIMM, DDR4-2667MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2667MHz |
| TPM | Type: TPM 2.0 ; Header & Chip Both |
| BIOS | AMI UEFI BIOS |
| Expansion |
1 x PCIe 3.0 x 4 Oculink 1 x PCIe 4.0 x 16 Slot 1 x M.2 M Key 2242/2280 (1 x SATA III; 1 x PCIe 3.0 x 4) |
|
USB |
4 x USB 3.0, 2 x USB 2.0 |
|
Ethernet |
4 x GbE LAN 2 x 10GbE LAN 2 x 25GbE LAN |
|
Power Type |
18V ~ 36V DC IN MIL-STD 461 EMI Filter |
|
Storage |
4 x 2.5” U.2 NVMe (4 x Swappable SSD Tray) |
|
Operating Temperature |
-40°C to +60°C |
|
Dimension(WxLxH) |
230 x 350 x 88 mm (TBD) |

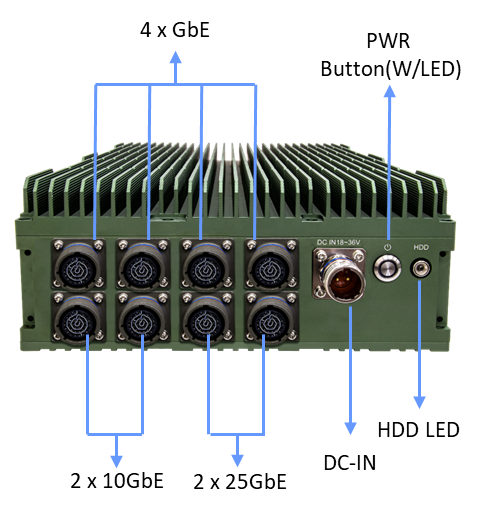

| Front I/O | |
|
X1~X4 |
4 x GbE with D38999 connector |
|
X5~X6 |
2 x 10GbE with D38999 connector |
|
X7~X8 |
2 x 25GbE with D38999 connector |
|
X9 |
1 x DC-IN with D38999 connector |
| Environmental | |
| Standard |
MIL-STD-810G MIL-STD-461/ MIL-STD-1275 18V~36V DC-Input |
