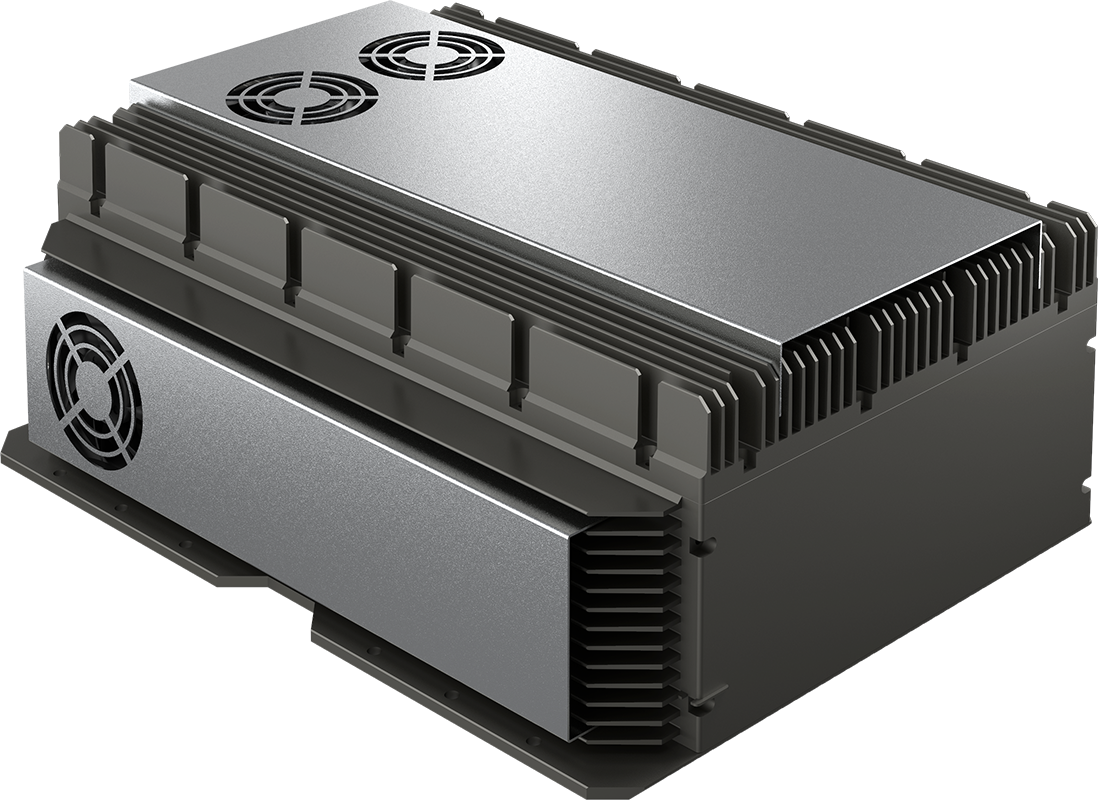

AV800
Rugged GPU Server, Tesla T4 (Turning Tensor Cores 320) & Intel® Xeon® D-2183IT (16 Cores), MIL-461 18V~36V DC
- Ultra-High Performance Intel® Xeon® Skylake DE D-2183 IT (16 Cores, Up to 3.00 GHz)
- NVIDIA TELSA T4 GPU Integrated (2560 CUDA, 16GB GDDR6)
- 512GB DDR4-2400 MHz
- 2x10GbE, 2xGbE , IPMI Support
- NVMe for Fast & Mass Storage
- IP65 Rating with DTL38999
- MIL-STD-810 Anti- Shock, Vibration
- MIL-STD 461 EMI 18V~36V DC-In
- Extended Temperature -20 to +55 Degree
Download
- Technical Profile
- Specifications
- Thermal Solution
- Certification
AV800 is 7STARLAKE ruggedized AI inference platform specifically designed for NVIDIA® Tesla T4 and supports Intel® Xeon® Skylake DE D-2183IT Processor. Utilizing 7STARLAKE' Open, Modular, Scalable Architecture, AV800 provide optimized cooling solution for Tesla T4, ensure the stable system operation in harsh environments. In addition to Tesla T4, AV800 provides one M.2 NVMe slot for fast storage access. Combining stunning inference performance, powerful CPU and expansion capability, it is the perfect ruggedized platform for versatile edge AI applications.
AV800 ruggedized AI inference platforms designed for advanced inference acceleration applications such as voice, video, image and recommendation services. It supports NVIDIA® Tesla T4 GPU, featuring 8.1 TFLOPS in FP32 and 130 TOPs in INT8 for real-time inference based on trained neural network model.
- Features
-
Computing Features
-Xeon D2183IT (2.0GHz, 16 cores, 32 threads)
-4 x DDR4 2400Mhz RIMM ECC (up to 512GB)
-Nvidia Tesla T4 GPU (2560 CUDA, 16GB GDDR6)
-1 x M.2 2280 M-key (SATA/PCIe 3.0x4 NVMe)
-2 x 2.5” SATA SSD (Easy Swappable)

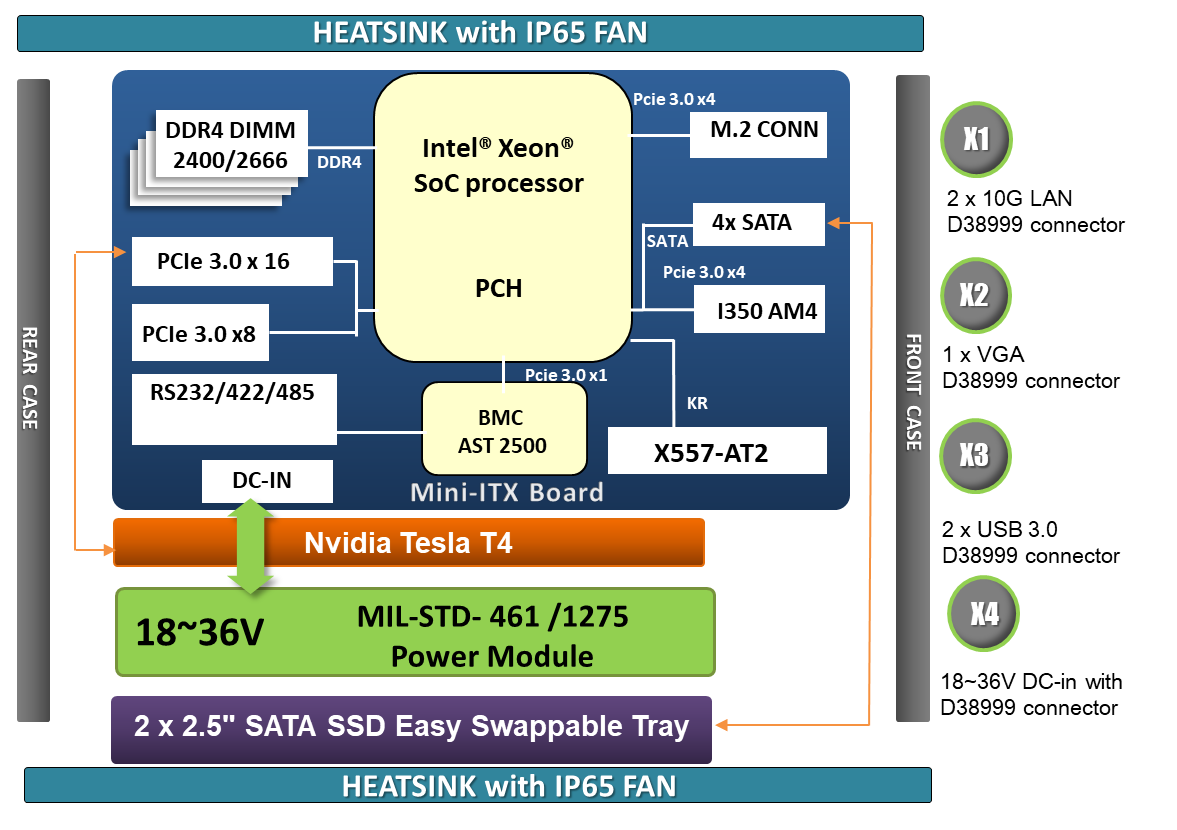

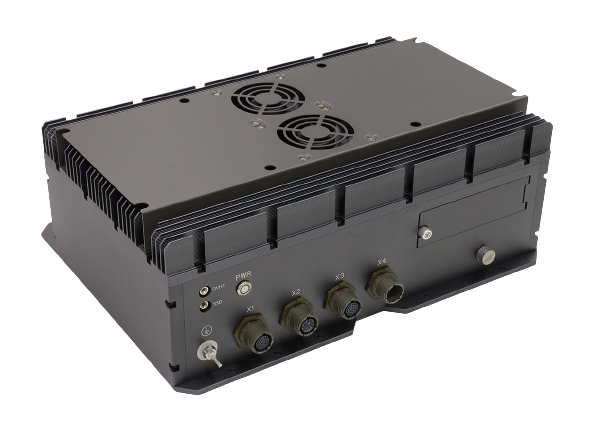

I/O and Expansion Options
-X1 : Two 10GbE LAN with D38999 connector
-X2 : One VGA with D38999 connector
-X3 : Two USB 3.0 with D38999 connector
-X4 : One DC-in with D38999 connector
Environment
-MIL-STD-461 18V-36V DC Power Module
-MIL-STD-810, 461 compliant
Operates up to extended temp -20°C to +55°C

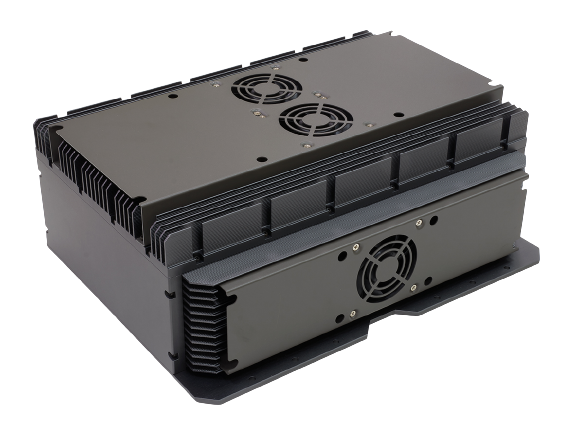

- Advanced thermal solution
-

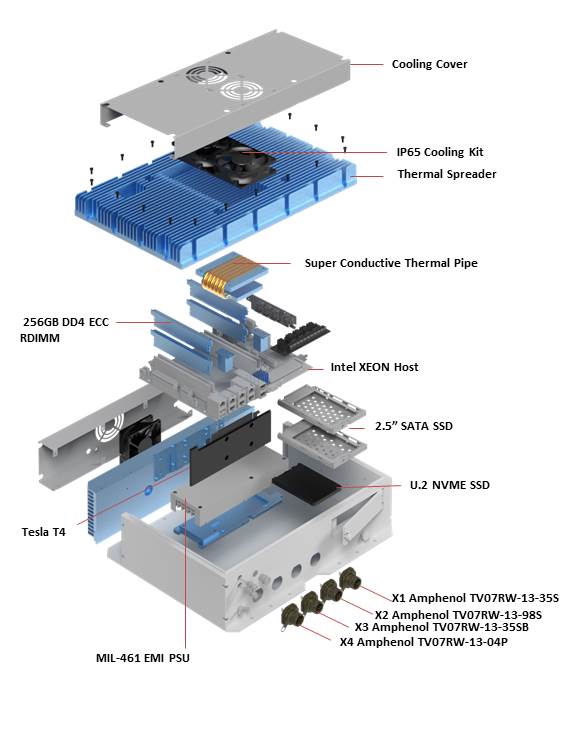

From internal conduction cooling system with copper heat pipes dissipating the CPU GPU main heat to external dual-sided aluminum heat sink, furthermore with system fan of active cooling control and power fan for turbo operation, are all the solution designed to guarantee superior system performance and stable operation under critical environment.
- Edge AI Inference, NVIDIA Tesla T4 & INTEL XEON D2187NT
-
AV800 is 7STARLAKE ruggedized AI inference platform specifically designed for NVIDIA® Tesla T4 and supports Intel® XEON Skylake DE processor. Utilizing 7STARLAKE' Open, Modular, Scalable Architecture, AV800 provide optimized cooling solution for Tesla T4, ensure the stable system operation in harsh environments. In addition to Tesla T4, AV800 provides one M.2 NVMe slot for fast storage access. Combining stunning inference performance, powerful CPU and expansion capability, it is the perfect ruggedized platform for versatile edge AI applications.
AV800 ruggedized AI inference platforms designed for advanced inference acceleration applications such as voice, video, image and recommendation services. It supports NVIDIA® Tesla T4 GPU, featuring 8.1 TFLOPS in FP32 and 130 TOPs in INT8 for real-time inference based on trained neural network model.
- Ultra-High Performance Intel® Xeon® Performance with VMware Support
-
Skylake DE: The Intel® Xeon® processor D-2183IT product family is Intel’s 64-bit system on a chip (SOC) and the first Intel® Xeon® SoC based on Intel® 14 nm silicon technology. This lineup offers hardware and software scalability from two up to sixteen cores, making it the perfect choice for a broad range of high-performing, low-power solutions that will bring intelligence and Intel® Xeon® reliability, availability, and serviceability (RAS) to the edge. For applications where space is a premium, an integrated Platform Controller Hub (PCH) technology and Intel® Ethernet in a ball grid array (BGA) package offer an inspiring level of design simplicity. The Intel® Xeon® processor Skylake DE product family is offered with a seven-year extended supply life and 10-year reliability for Internet of Things designs.
- Design to Meet MIL-STD 810, MIL-STD461
-
AV800 is designed to meet strict size, weight, and power (SWaP) requirements and to withstand harsh environments, including temperature extremes, shock/vibe, sand/dust, and salt/fog.
AV800 is MIL-461/1275 EMI/EMC compliant rugged Edge AI Inference server. It passes numerous environmental tests including Temperature, Altitude, Shock, Vibration, Voltage Spikes, Electrostatic Discharge and more. The sealed compact chassis shields circuit cards from external environmental conditions such as sand, dust, and humidity.
|
System |
|
|---|---|
|
Processor |
Intel® Xeon® Processor D-2183IT (Frequency 2.0GHz, Turbo Boost Frequency up to 3.0GHz), 16-Core, 32 Thread Support, 22MB Smart Cache. |
| Memory type | 4 x DIMMs Up to 512GB ECC RDIMM DDR4-2400MHz |
|
Chipset |
SoC, integrated with CPU |
|

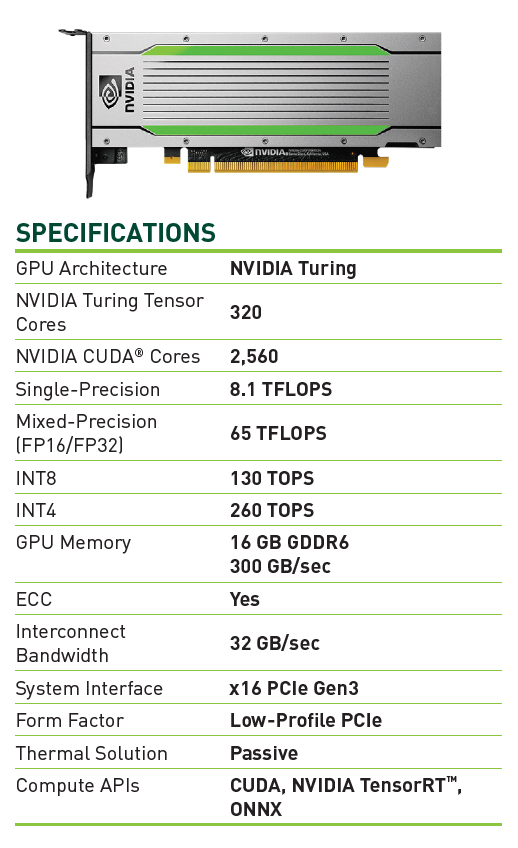

GPU |
|
|
NVIDIA |
TESLA T4 |
|
Turning Tensor Cores |
320 |
|
CUDA Cores |
2560 |
|
Memory |
16 GB GDDR6, 300 GB/sec |
|
Graphics Output |
|
|
1x VGA |
ASPEED AST2500 |
|
Resolution |
Up to 1920x1200@60Hz 32bpp |
|
Storage |
|
|
HDD/SSD |
1x M.2 2280 M key NVMe socket (PCIe Gen3 x4) for NVMe SSD installation 2 x 2.5" SSD (Easy Swappable) |
|

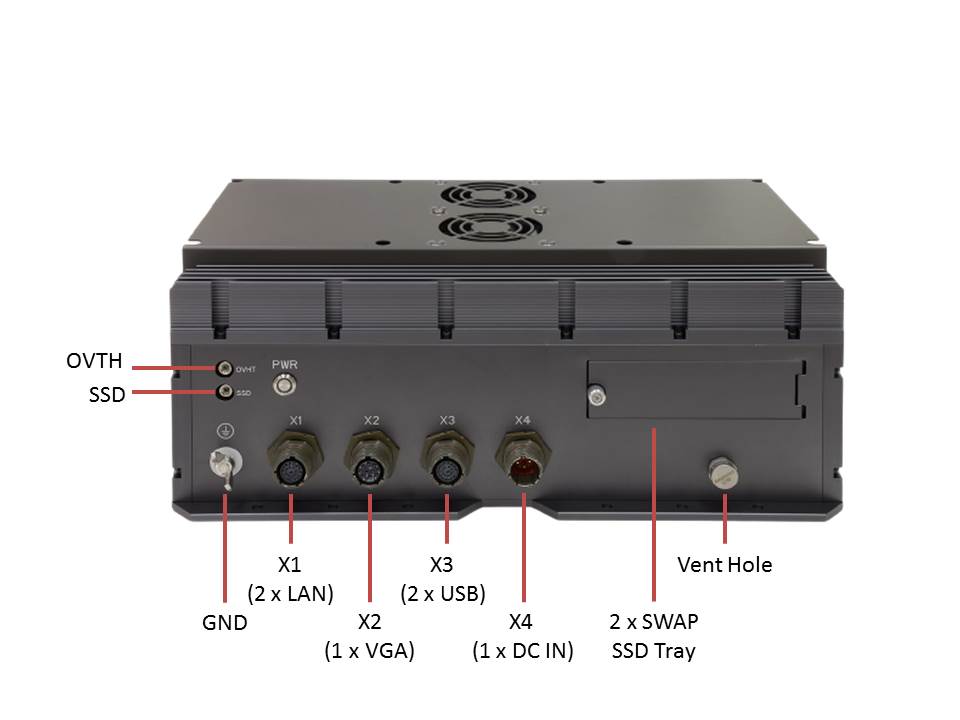

Side I/O |
|
|
X1 ( 2 x 10GbE Ethernet)) |
1x Amphenol TV07RW-13-35S (22PIN) |
|
X2(VGA) |
1 x Amphenol TV07RW‐13‐98S(10PIN) |
|
X3(USB3.0x2) |
1 x Amphenol TV07RW-13-35SB(22PIN) |
|
X4 (DC-IN) |
1 x Amphenol TV07RW‐13‐04P (4PIN) |
|
Button |
1 x Power Switch with Dedicated LED |
|
SSD Tray |
2 x Dual 2.5" HDD/SSD Easy Swap Tray |
|
Dedicated LED |
1 x Red LED(OVHT),1 x Green LEDs(SSD) |
|
Power Requirement |
|
|
Power Input |
DC-DC 18 to 36V (300W max) Mil-STD 461 |
| Mechanical and Environment | |
| Dimension (WxDxH) | 405 x 154 x 316 mm |
| Weight | 15Kg (33.06lbs) |
| Chassis | Aluminum Alloy, Corrosion Resistant |
| Finish | Anodic aluminum oxide |
| Cooling | Natural Passive Convection/Conduction. No Moving Parts |
| Ingress Protection | IP65 |
| Applications, Operating System | |||||||
|---|---|---|---|---|---|---|---|
| Applications | Commercial and Military Platforms Requiring Compliance to MIL-STD-810 Process Control, where Harsh Temperature, Shock, Vibration, Altitude, Dust and EMI Conditions. | ||||||
| Operating System | Windows 10 64Bit, Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Ubuntu14.04, Fedora 20/23, RedHat Linux EL 7.1/7.2, VMware ESXi 6.0, ESXi 6.5 | ||||||
| Environmental | |||||||
| Operating Test | MIL-STD-810G Test | ||||||
| Method 502.5, Procedure II ( Operation/Low Temperature ) | |||||||
| Method 501.5, Procedure II ( Operation/High Temperature ) | |||||||
| Method 507.5, Procedure II ( Temperature & Humidity ) | |||||||
| Method 514.6 Vibration Category 24/Non-Operating ( Category 20 & 24, Vibration ) | |||||||
| Method 516.6 Shock-Procedure V Non-Operating ( Mechanical Shock ) | |||||||
| Method 516.6 Shock-Procedure I Operating ( Mechanical Shock ) | |||||||
| Non-Operating Test | Method 502.5, Procedure I ( Storage/Low Temperature ) | ||||||
| Method 502.5, Procedure II ( Operation/Low Temperature ) | |||||||
| Method 501.5, Procedure I ( Storage/High Temperature ) | |||||||
| Method 514.6 Vibration Category 24/Non-Operating ( Category 20 & 24, Vibration ) | |||||||
| Method 514.6 Vibration Category 20/Operating ( Category 20 & 24, Vibration ) | |||||||
| Method 516.6 Shock-Procedure V Non-Operating ( Mechanical Shock ) | |||||||
| Method 516.6 Shock-Procedure I Operating ( Mechanical Shock ) | |||||||
| Method 509.7 Salt Spray (50±5)g/L | |||||||
| EMC compliance |
MIL-STD-461 : CE102 basic curve, 10kHz - 30 MHz RE102-4, (1.5 MHz) -30 MHz - 5 GHz RS103, 1.5MHz to 18GHz, 50V/m equal for all frequencies EN 61000-4-2: Air discharge: 8 kV, Contact discharge: 6kV EN 61000-4-4: Signal and DC-Net: 1 kV EN 61000-4-5: Leads vs. ground potential 1kV, Signal und DC-Net: 0.5 EN 55022, class A EN 61000-4-3: 10V/m Designed to Meet the following testing methods(Options for testing with additional cost):CS101, CS114, CS115,CS116CE106, RE103,RS101MIL-STD-1275:Steady State – 20V~33VSurge Low – 18V/500msSurge High – 100V/500ms |
||||||
| Operating Temperature | -20°C to 55°C | ||||||
| Storage Temperature | -40°C to 85°C | ||||||
Patented Thermal Architecture
7starlake guarantees reliable and supreme solutions for industrial and military applications. All of our selected components are of authentic industrial grade, and have verified their stability and durability through a series of Wide-range Temperature tests.
