Overview

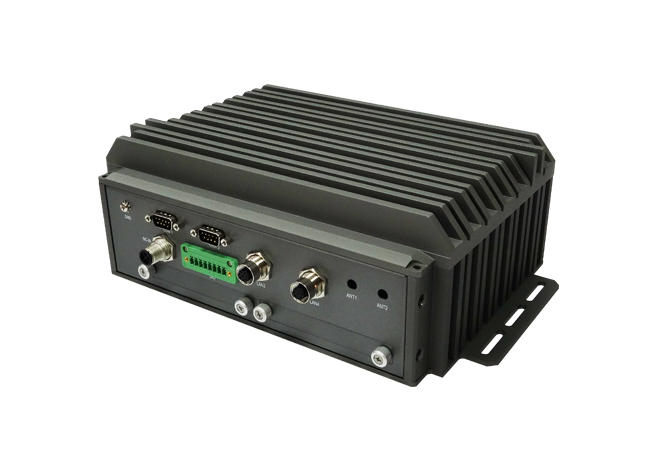

2017 STACKRACK has proudly introduced you the autonomous vehicles & railway computer CPT10M, a MIL-STD-810G rugged system driven by Intel®5th generation Broadwell CPU soldering onboard with rugged XR-DIMM RAM. Possessing rich I/O of four LAN ports with two by M12 connectors and four USB, allowing multiple connection with cameras, sensors, and other image recording devices; moreover, two DisplayPort video outputs make CPT10M a complete and ideal solution for image processing, containing both function of image input and output. The system contains two 2.5" SSD/ HDD tray, with maximum capacity SATAIII 6.0 Gb/s 2TB of HDD and 512GB of SSD, allowing mass data storage; removable SSD/HDD Tray makes it easy to retrieve data for storage in central database; furthermore, two SMA connectors are included for usage of 3G, WIFI, or GPS. CPT10M is able to operate through extended temperature from -40 up to 70°C with its rugged design passing MIL-STD-810G and EN50155 compliance, enable system utilization in railway surveillance, passenger information system, driver machine interface, train DVR/NVR applications, and driving computer in autonomous intelligent vehicles.
- Design for reliability under demanding MIL-STD-810G Thermal, Shock, Vibration, Humidity/EMI/EMC conditions
- Heavy-duty fully IP54 Rugged aluminum chassis with M12 connectors
- 5th Gen Intel® Broadwell-U processors Onboard
- XR-DIMM DDR3L Up to 16GB
- Multi-Displays by 2 x DisplayPort
- 2 x RJ45 , 2 x M12 Rugged Ethernet connectors
- 1 x Rugged Digital I/O
- 2 x USB 3.0, 2 x USB 2.0, 4 x COM ports (3 x RS232, 1x RS232/422/485)
- 9V~36V DC-in by M12 connector
- Extended Temperature -40 to 70 °C
- 2 optional power for EN50155 compliance
Speed defines everything
Under the unique circumstances of extended temperature, a system to operate full speed is almost impossible. But we take action and challenge our status quo to achieve no speed throttling even at temperature 70°C.
By STACKRACK's sophisticated thermal design, the testing result shows remarkable CPU performance and stability that makes CPT10M the perfect solution for computing-demand applications. From -40°C to room temperature, the CPU is running at turbo boosting which up to 3GHz; even when the temperature reaches 70°C, CPU remains high performance of 2.19GHz (Intel®Broadwell Core™ i7-5650U processor has 2.2 GHz base frequency). With proven processor speed under wide range temperature operation, CPT10M is able to support complex data analysis and at the same time withstand the threat of harsh environment.
CPT10M CPU Performance
| Point | -40°C | 25°C | 40°C | 45°C | 50°C | 55°C | 60°C | 65°C | 70°C |
| CPU T-J | 0 | 70 | 82 | 89 | 93 | 100 | 103 | 104 | 104 |
| CPU Die | -28.1 | 55.1 | 58.3 | 63.4 | 69.1 | 74.4 | 79.9 | 83.3 | 86.3 |
| Heatsink | -33.6 | 48.1 | 52.3 | 57.3 | 62.3 | 68.2 | 73.4 | 78.3 | 82.5 |
| Δ1=(TJ-Die) | 28.1 | 14.9 | 23.7 | 25.6 | 23.9 | 25.6 | 23.1 | 20.7 | 17.7 |
| Δ2=(Die-HeatSink) | 5.5 | 7.0 | 6.0 | 6.1 | 6.8 | 6.2 | 6.5 | 5.0 | 3.8 |
| CPU Frenquency | 3GHz | 3GHz | 3GHz | 3GHz | 3.02GHz | 2.82GHz | 2.8GHz | 2.55GHz | 2.19GHz |
Exceptional Brain for Driverless Intelligence
Imagine a future full of autonomous cars where everyone's a passenger, does that sounds familiar? In the film "I, robot", future autonomous vehicles driving on highways, allowing the car to travel safer at higher speeds than if manually controlled. It seems like a dream right? Well we are happily to tell you that it is no longer a dream anymore!

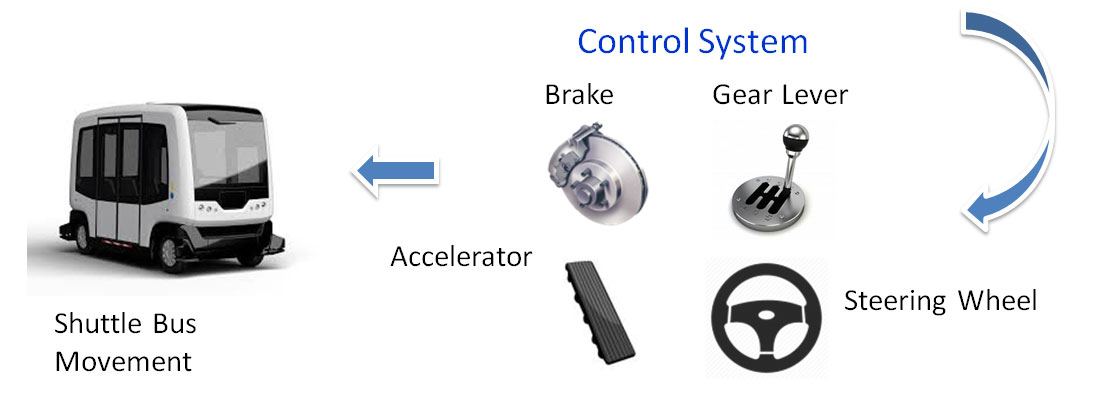

What we called "brain" as the key technology in autonomous cars application is CPT10M. It gives out instructions after calculating and analyzing data, such as commanding accelerator, brake, gear lever, steering wheel and other devices to control the driving direction and movement by using the powerful Intel® Core™ i7-5650U Processor after receiving information of vehicle position and current environmental condition. Possessing extremely high ruggedness connectors, including two M12 Rugged Ethernet connectors and one Rugged Digital I/O, CPT10M can be processed in the most severe conditions, overcoming unpredictable shock and vibration, guaranteeing the connection between computer and devices.
Overcome EN50155 standard is our attitude
It has been over 200 years since the first railway service began, and the technology is progressing rapidly day by day, to improve and ensure passengers safety and operational efficiency becomes a key issue. A standard to avoid unstable voltage when facing a vibratory condition also providing railway to achieve harsh environment is the most important thing to keep passenger safe, that is EN50155.
Which CPT10M achieves them all, but not only achieves them, our attitude is to overcome EN50155 standard and provide the highest temperature range for the standard possible under the EN50155-TX class.
| Class | Operating Temperature Range | 10 Minutes Over Heating | Ti of PCB |
| T1 | -25 to 55°C | +15°C | -25 to 70°C |
| T2 | -40 to 55°C | +15°C | -40 to 70°C |
| T3 | -25 to 70°C | +15°C | -25 to 85°C |
| TX | -40 to 70°C | +15°C | -40 to 85°C |
Unstable power supply and a sudden surge of voltage are the most common issues in railway application. But CPT10M's standard wide voltage power input design (9V~36V-DC in) can protect system and prevent the issues from happening again.
Not only standard, CPT10M also provides two optional power modules (100 W, 16.8V ~ 31.2V and 33.6V~62.4V VDC-in) in order to meet and compliance with EN50155. These Power Modules successfully pass Shock and Vibration Test EN50155 section 12.2.11 IEC61373, EMC Test EN50121-3-2, Salt Mist Test EN50155 section 12.2.10, even Flammability Test EN45545-2, possessing outstanding electrical and thermal performance as well as high reliability under extremely harsh operation conditions.

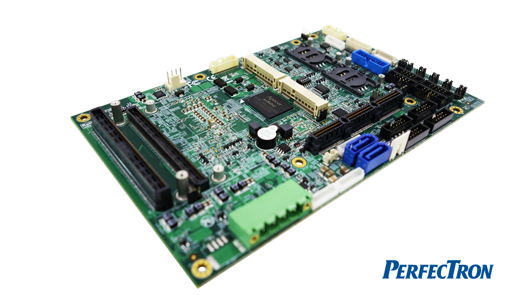

| Heart of CPT10M PERFECTRON's ruggedized EPIC motherboard - Reliable design of OXY5638B, powered by Intel® 5th Gen. Broadwell ® Core™ i7-5650U BGA processor, supports special XR-DIMM 16GB DDR3L and onboard uSSD 64GB, PCIe/104 expansion, 2 x Mini PCIe with SIM Card Holder. Extended operating temperature from -40 to 85°C. For more info, please find OXY5638B. System Main Board: EPIC SBC – OXY5638BSupport Intel® Core™ i7-5650U ProcessorRich-featured board applied to cater various I/O requirements2 x XR-DIMM up to DDR3L -1600 16GBExpansion: 1x PCIe/104, 2 x Mini PCIe with SIM Card HolderMulti Display: 2 x DisplayPorts; Dual Channel 24Bits LVDSExtended Operating Temp.: -40~+85°C |
Product Offering
- Design for reliability under demanding MIL-STD-810G Thermal, Shock, Vibration, Humidity/EMI/EMC conditions
- Heavy-duty fully IP54 Rugged aluminum chassis with M12 connectors
- 5th Gen Intel® Broadwell-U processors Onboard
- XR-DIMM DDR3L Up to 16GB
- Multi-Displays by 2 x DisplayPort
- 2 x RJ45 , 2 x M12 Rugged Ethernet connectors
- 1 x Rugged Digital I/O
- 2 x USB 3.0, 2 x USB 2.0, 4 x COM ports (3 x RS232, 1x RS232/422/485)
- 9V~36V DC-in by M12 connector
- Extended Temperature -40°C to 70°C
- 2 optional power for EN50155 compliance
