PERFECTRON's SR10-SCHX3 is launched! The high performance output and processing power system with Intel Coffee Lake
PERFECTRON's SR10-SCHX3 is launched! The high performance output and processing power system with Intel Coffee Lake
SR10-SCHX3

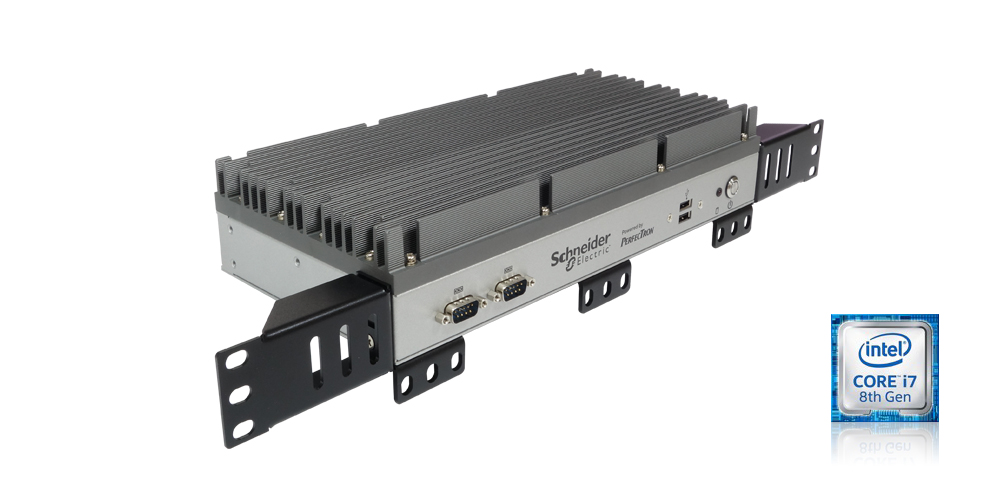

High Performance Processing MIL-STD Fanless Rugged System with Intel® Coffee Lake & Triple Display Ports
Large & Efficient Memory Processing Rugged Computing System fits your diversified needs
Newly-launched StackRack Rugged Computing System

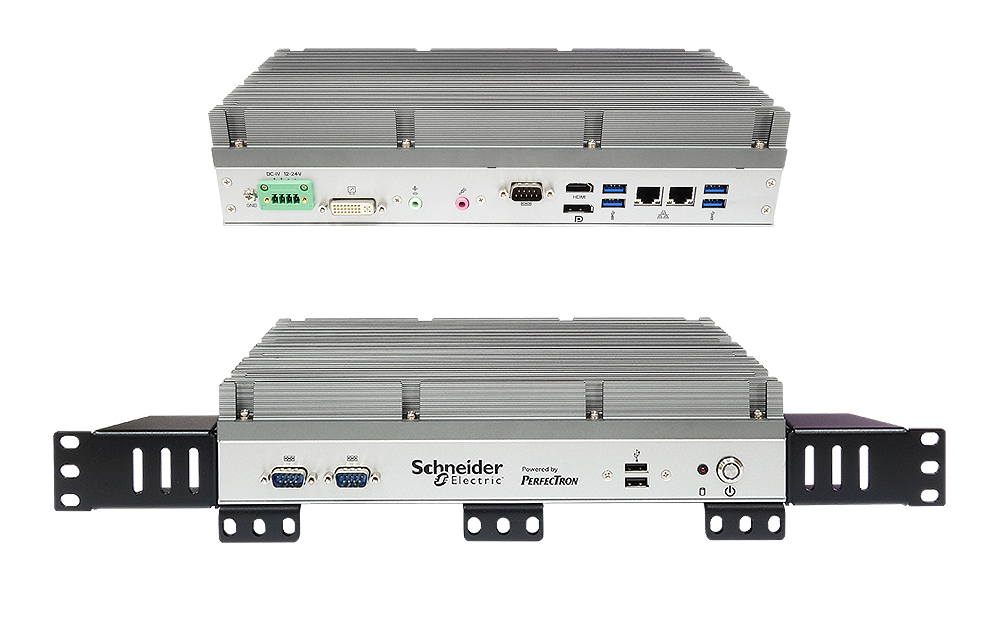

SR10-SCHX3 is a highly efficient and powerful computing system driven by the Intel® 8th Core i7-8700T Coffee Lake processor with Intel®Turbo Boost Technology that the operating Frequency can increase up to 4.0 GHz. The Intel® 8th Core i7-8700T processor effectively operates with 6 cores and 12 threads, which can successfully operate with a high speed efficiency processing program. SR10-SCHX3 is designed for large memory such as 16GB DDR4 RAM. Besides, there are three independent display output ports supporting the system, including one DisplayPort, one HDMI, and one DVI-D. What's more, SR10-SCHX3 is equipped with two USB2.0 and four USB3.1, provide the best input and output efficiency. The system also supports a wide range DC-in from 12V to 24V, and accepts the extended range of temperature from -20 to 60 °C. SR10-SCHX3 passes the MIL-STD 810G compliance which can operate successfully in harsh environments.

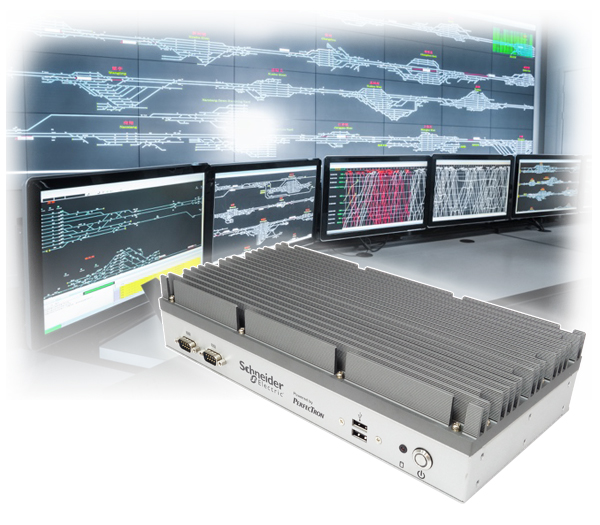

Flexible display output & triple display
The various display output ports of SR10-SCHX3 supports 1 x DisplayPort,
1 x HDMI, and 1 x DVI-D with Full HD 1080P resolution display. The system can not only provide the single desktop display but also allow triple screens display. The high flexible display output can accept diverse applications and provide the best display performance.
The integrated UHD Graphics supports three independent displays with 4k resolution each, and comes with hardware-based video encoding and decoding up to 4k. It features DVI-D, HDMI and DisplayPort outputs to provide advanced solutions for imaging, machine vision, infotainment, medical and gaming machines.
USB 3.1 Gen 2
SR10-SCHX3 is equipped with USB 3.1 Gen 2, which dramatically enhance the transfer rate up to 10 Gbps, which means it efficiently saves the data transfer processing time. For example, USB 3.1 Gen 2 only needs to spend 4.13s for transferring a 5GB document, while USB 3.0 needs to spend 10s. Besides, USB 3.1 Gen 2 improves the Encoded Mode to 128b/132b, successfully decrease the dissipation rate of data transfer to 3%.
| USB Type | Speed | Max. current | Data Rate | Encoded Mode | Encoded Loss | Actual Rate |
|---|---|---|---|---|---|---|
| USB 2.0 | HiSpeed | 500mA | 480 Mbps | 8b/10b | -20% | 48 MB/s |
| USB 3.0/ 3.1 Gen 1 | SuperSpeed | 900mA | 5.0 Gbps | 8b/10b | -20% | 500 MB/s |
| USB 3.1 Gen 2 | SuperSpeed+ | 5000mA | 10 Gbps | 128b/132b | -3.03% | 1.21 GB/s |
SR10-SCHX3
- MIL-STD 810G Compliance
- 8th Gen Intel® Core i7-8700T Processor
- Up to 16GB DDR4 RAM

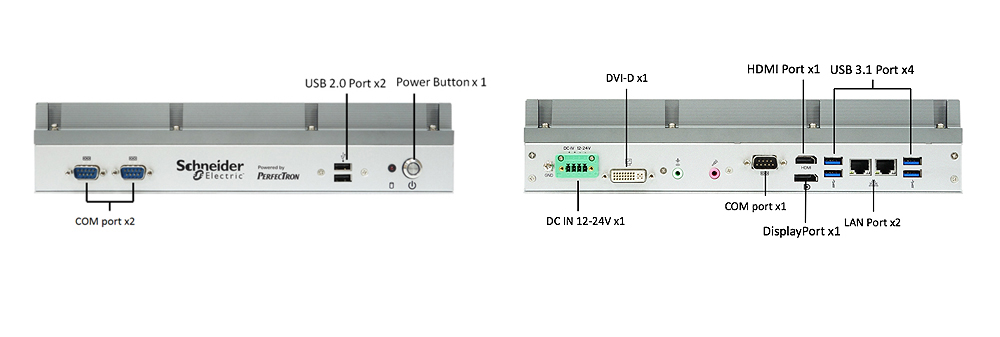

- Multi display with DisplayPort, HDMI & DVI-D
- 1 x 2.5" SSD
- 2 x Intel® Gigabit Ethernet
- 6 x USB ports, 3 x COM port
- 12V to 24V DC-in
- Extended temperature -20 to 60 °C
Product Offering
- MIL-STD 810G Compliance
- 8th Gen Intel Core i7-8700T Processor
- Up to 16GB DDR4 RAM
- Multi display with displayport, HDMI & DVI
- 1 x 2.5” SSD
- 2 x Intel gigabit Ethernet
- 6 x USB ports, 3 x COM port
- 12V to 24V DC-in
- Extended temperature -40°C to 60°C
