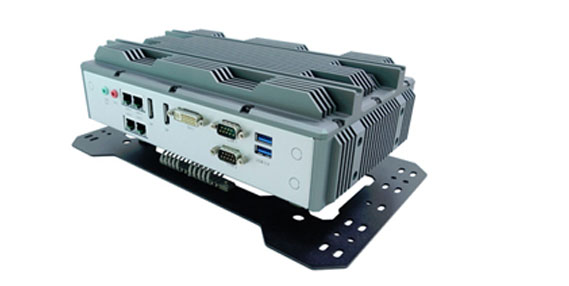

STACKRACK, an innovative industrial computing and embedded system solution provider has launched a new MIL-STD Fanless Rugged System – SR10. SR10 highlights its 4th Generation Haswell Core i7 Fanless System with optional easy accessible with SSD storage tray, rugged XR-DIMM RAM, rich I/O with 4 USB 3.0, 1 Com Port (optional with 4 Com Ports), 2 LANs (optional with 4 LANs) and 3 Video outputs. Besides variety outputs, STACKRACK has design an unique Wipe Rope Vibration Isolator for better vibration and shock resistance.

MIL-STD-810G Certified

MIL-STD-810 standard is a Military Standard established by United States Department of Defense (DoD) considered the utmost principle for military ruggedness request. It provides a series of testing procedures for resistance to water proof, shock, vibration, dust, humidity, and extreme temperatures and SR10 is designed to comply to the series of tests concerning on sustainable in such harsh environment. Below are the standard's criteria that SR10 has pass:

• [ Method 501.5 ] - High Temperature

This test is to certify that SR10 can perform flawlessly to as high as 75℃.

• [ Method 502.5 ] - Low Temperature

This test is to certify that SR10 can perform flawlessly to as low as -40℃.

• [ Method 503.5 ] - Temperature Shock

This test is to ensure that SR10 can thrive even in extreme temperature range.(-40~85℃)

• [ Method 514.6, Procedure I ( Category 20 & 24 ) ] - Vibration

• This test is to ensure that SR10 can perform even when it encounters severe and long-term vibration. SR10 can withstand vibration up to 10Grms (X, Y & Z Axis).

• [ Method 516.6, Procedure I ] - Mechanical Shock

• Mechanical shock test is another pledge to SR10's reliable structure. It's conducted to ensure that equipment can withstand drops encountered during handling, transportation, and normal use. SR10 can withstand mechanical shock up to 75Grms

PR_20151207

CPU Processor Full Speed Non-throttling under wide range temperature

The fan-less system SR10 is integrated with Intel Haswell i7-4700EQ processor for reliable and powerful operation in harsh environments. This all-in-one design rugged system guarantees CPU full speed operation over wide range temperature from -40 up to 60C without throttling.More CPU performance information,

please visit : SR10B CPU Performance

PR_20151207

Wide Voltage Power Input 9V~36V

Unstable Power Supply in military application is common, wide voltage power input design (9V~36V) become fairly important because it can protect system from damages caused by sudden surge of voltage.

Unique Wire Rope Vibration Isolator Design for Higher Vibration Resistance

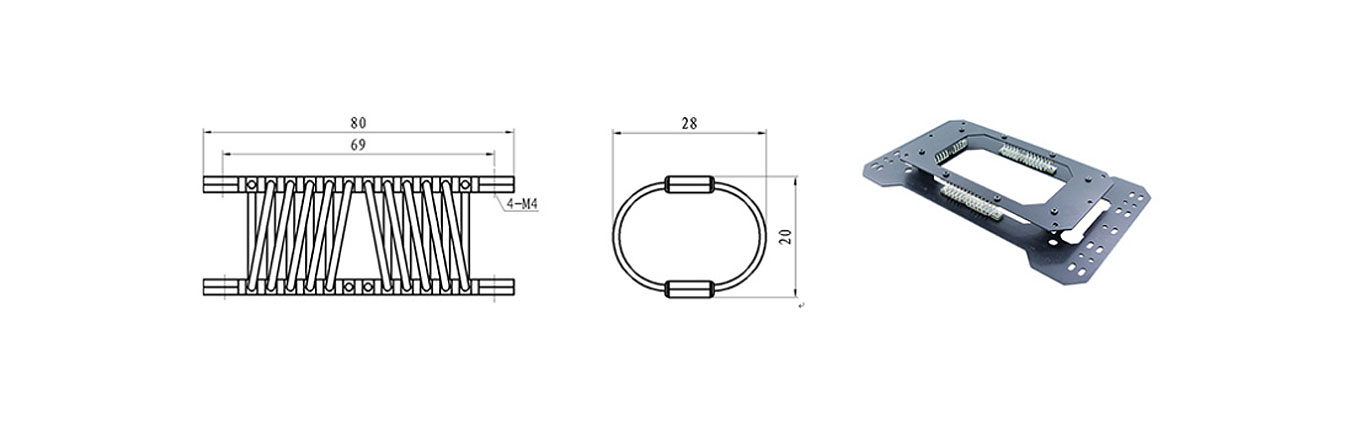

STACKRACK has especially design a Wire Rope Vibration Isolator for SR10. The Wire Rope Vibration Isolator may sustain higher vibration resistance of the product itself.

A Wire Rope Vibration Isolator is widely apply on supporting Military equipment because it may absorb and protect the object from vibration damage in any axes simultaneously, with the protection it may extended the product life operating under long hour vibration environment and vibration shock. The isolator is long life maintenance free tool and it may unload whenever required. Besides, Wipe Rope Vibration Isolators may survive under extreme temperature, corrosion, radioactivity, extreme dry or high humidity and UV Radiation environment.

PR_20151207

There're three types of installation form for Wire Rope Vibration Isolator,

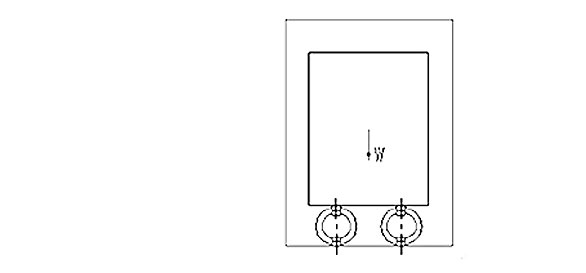

a. Vertical installation :

SR10 is attached at the bottom of the equipment to sustain vibration from top to bottom. Two wipe rope vibration isolators may balance the vibration and shock impact which minimize the damage extent might cause to the equipment. It is the most common installation pattern.

PR_20151207

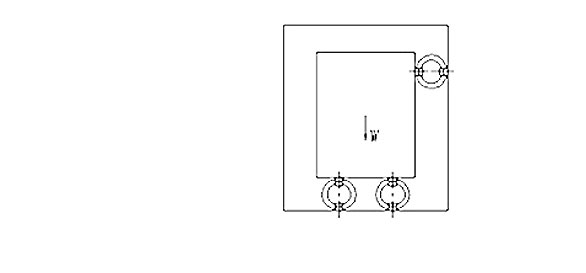

b. Lateral Installation :

When the equipment ratio is larger than 1, it need to install a wipe rope isolator install at the lateral or side of the equipment for stabilizing and support purpose.

PR_20151207

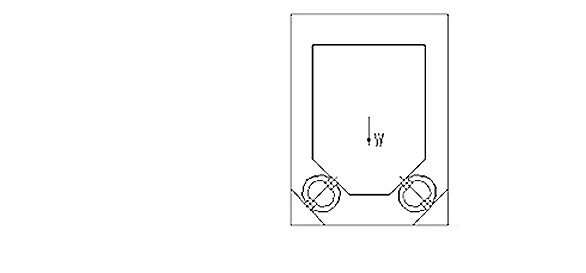

c.45 degree Installation :

The isolators may help to fix the equipment at oblique angle.

Bearing Capacity with STACKRACK Wipe Rope Vibration Isolator:

Item	Nominal Loading(kg)
Installation Form	Vertical	45 Degree	Lateral
Figure	1	2	3

Item	Average Elasticity(N/mm)	Maximum Elasticity(mm)
Installation Form	Vertical	45 Degree	Lateral	Vertical	45 Degree	Lateral
Figure	4.5	6	11	9	16	10

Item	Maximum Impact/Shock(kN)	Maximum Impact/Shock Capacity(J)
Installation Form	Vertical	45 Degree	Lateral	Vertical	45 Degree	Lateral
Figure	0.06	0.06	0.09	0.3	0.6	0.59

2.5” SATA Easy Storage Accessible Tray

Easy Storage Accessible bay allow customer to access the Storage without disassemble the system. It may let the user remove, replace and carry out the HDD easily. With this feature, SR10 may widely apply in surveillance, data storage and infotaiment purpose due to occasionally or daily storage reload is required.

Main Features:

Intel® Core™ i7-4700EQ onboard QM87 chipset
MiL-STD-810G Vibration: 10Grms, Shock: 75Grms
1 x DDR3 1600 XR-DIMM upto 8GB
2~4 x RJ45 Port
Display: 2 x DP, 1 x DVI-D (Female)
1 x optional Easy Accessible 2.5” SATA HD/SSD Storage Tray
1 x mPCIe Expansion Slot (pre-install required)
4 x USB 3.0 Ports
1~4 x COM Ports (1 x RS232 or 2 x RS232, 2 x RS232/422/485)
Audio (Mic in/Line out)
Wide Voltage 9V~36V DC-in
Extended Operating Temperature -40~70℃
