THOR100 IP65 Rugged 1U 19" Half Rackmount Intel® Broadwell Core i7

THOR100 IP65 Rugged 1U 19" Half Rackmount Intel® Broadwell Core i7

Taipei, Taiwan

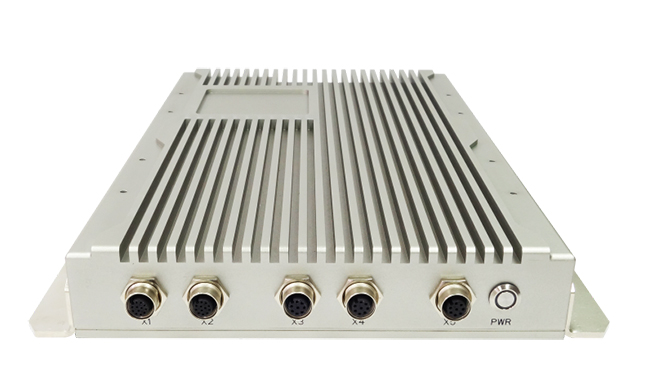

STACKRACK has launched apr_20161227_01 remarkable ruggedized computer THOR100 (Compliant to MIL-STD-810G) powered by Intel® 5th generation Broadwell Core i7-5650U (2 Core x 2.2/3.2GHz) with rugged XR-DIMM and soldered components which help to reinforce the resistance to shock and vibration. Although THOR100 features a completely sealed enclosure with M12 connectors for the I/O interfaces and is compliant to IP65, it is able to maintain CPU full speed at extreme temperatures by the conduction cooling method developed by STACKRACK. STACKRACK is specialized in developing computers that are highly ruggedized and support wide range extended temperatures, and THOR100 too supports extreme temperatures from -40 to +70°C. In addition, the thinness and minimized width of 1U 19" half grants high mobility and flexibility to users, especially being stored in a 19 width transit rackmount case. This complete rugged system can be widely utilized such as high-end automation under extreme environments, railways, and defense of all maritime, ground, and aerial applications by its maximized ruggedness, minimized size and wide range extended temperatures.



  • Intel® Broadwell Core i7-5650U BGA (2 cores, 3.2GHz)
  • 2 x XR-DIMM up to 16GB
  • 64GB onboard SSD
  • 1 x mPCIe expansion slot
  • 1 x 2.5" HDD/ SSD

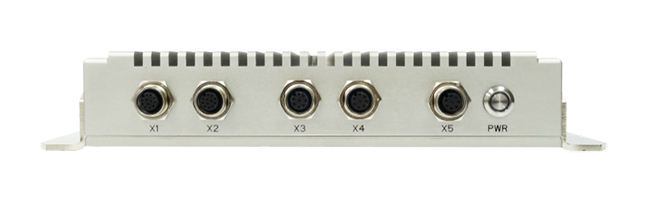

  • Amphenol type connector applied
  • IP65 classify

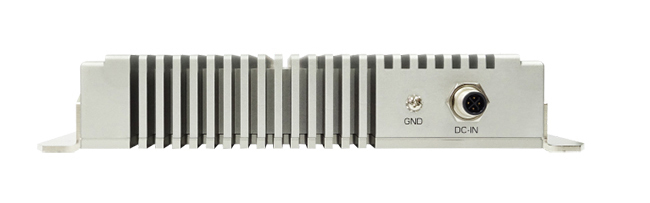

  • Wide range 9V to 36V DC-in
  • Extended operating temperature. -40 to 70°C



Mobility & Flexibility of 1U 19" Half

In a modern battle field, mobility and flexibility are considered as upmost priority for a battle in any places, and these key factors critically influence on subsequent battle situations. Typically, 1U rackmount servers are designed as 19" width system, but THOR100, because of its 19" half-solution (220 mm), a number of THOR100s is able to be stored in a transit rackmount case and easily carried by personnel in a battle field. For instance, total numbers of 6 THOR100s can be stored in one 3U rackmount case, which gives high mobility on transporting. The feature of 19" Half size also gives a great flexibility on integration and unlimited configurations by unifying multiple rackmount servers in one transit rackmount case. The composition with wide varieties of systems (hub switches, data recorders, radars, detection systems and other subsystems) can easily be done, and it supports a maximum expansion in its total functionality for an application. This great mobility and flexibility of THOR100 can vastly enhance a quality of overall maneuvers in a battle field.











Evidence behind the True Ruggedness: MIL-STD-810G & IP65

Military operations mostly take place in harsh environments where exists continual vibration, intense shock, extreme heat, heavy storms, and tremendous snowfalls, and rugged computers must withstand such harsh conditions. For utmost reliability, THOR100 is designed to meet and tested for the demand of MIL-STD-810G; anti-shock and vibration, wide range extended temperature from -40 to +70°C. Also, it is a dust/water ingress rackmount server classified IP65 by the unification of the sealed enclosure and Amphenol M12 connectors. The system was tested at certain institutions and revealed the high resistance from shock and vibration, extreme temperatures, and total protection against dust ingress and water jets from various directions.


Tests of MIL-STD-810G

Method 507.5, Procedure II (Temperature & Humidity)
Method 516.6 Shock-Procedure V Non-Operating (Mechanical Shock)
Method 516.6 Shock-Procedure I Operating (Mechanical Shock)
Method 514.6 Vibration Category 24/Non-Operating (Category 20 & 24, Vibration)
Method 514.6 Vibration Category 20/Operating (Category 20 & 24, Vibration)
Method 501.5, Procedure I (Storage/High Temperature)
Method 501.5, Procedure II (Operation/High Temperature)
Method 502.5, Procedure I (Storage/Low Temperature)
Method 502.5, Procedure II (Operation/Low Temperature)
Method 503.5, Procedure I (Temperature shock)


IP(Ingress Protection)


Level of protection against materials /dust   Level of protection against water (liquids)
  • Protection against solid object > 50mm
  • Protection against solid object > 12mm
  • Protection against solid object > 2.5mm
  • Protection against solid object > 1mm
  • Protection against dust
    (limited ingress permitted)
  • Complete protection against dust
  • Protection against vertical falling water drops
  • Protection against falling drops of water
  • (15 degrees from vertical)
  • Protection against direct sprays of water
  • (60 degrees from vertical)
  • Protection against direct sprays of water
    (all directions [limited ingress permitted])
  • Protection against low pressure water jets of water
    (all directions [limited ingress permitted])
  • Protection against high pressure water jets of water
    (all directions [limited ingress permitted])
  • Protection against short periods of immersion in water


Internal Ruggedness
The Core Technologies of Genuine Ruggedness

PERFECTRON's ruggedized EPIC motherboard - Reliable design of OXY5638B, powered by Intel® 5th Gen. Broadwell ® Core i7-5650U BGA processor, supports special XR-DIMM 16GB DDR3L and onboard uSSD 64GB, PCIe/104 expansion, 2 x Mini PCIe with SIM Card Holder. Extended operating temperature from -40 to 85°C. For more info, please find OXY5638B.
