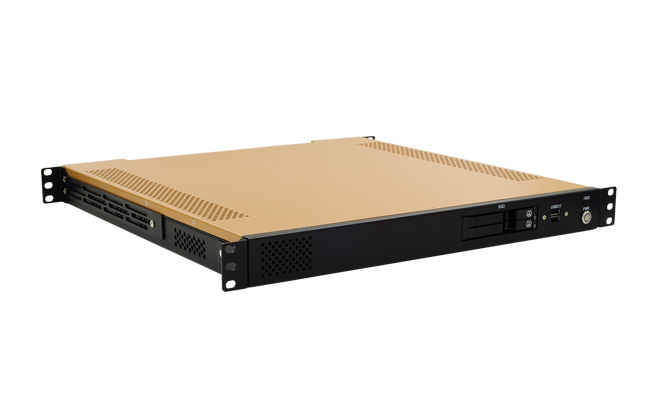

ROC285B - Coffee Lake i7-9700TE AC-In Rackmount Fanless Server

i7-9700 1U Rackmount Fanless Server
Intel CPU_8th
Intel CPU_9th_Coffee Lake R

19” 1U Rack-mount Rugged Fanless Server with Intel®8/9th Gen  i7-9700TE CPU, Rich I/O interface, 90V to 260V AC-in, Extended Temp. -20 to 60°C

  • Intel® Coffeelake- Refresh i7-9700TE (8 cores, 3.8GHz)
  • 2 x SO-DIMM DDR4 2400/2666 MHz up to 64GB
  • 1 x PCIe x16, 1 x Full/Half mPCIe1 x M.2(Key E), 1 x M.2(Key M) expansion slot
  • High efficient I/O 4 x USB3.0, 3 x DisplayPort, 2 x LAN, 1 x Line-out/Mic
  • 2 x 2.5” SATA HDD/ SSD easy swap tray
  • Wide range 90~260V AC-in
  • Extended temperature -20 to 60°C
  • Technical Profile
  • Specifications
  • CPU Performance

Introduction

ROC285B is an industrial 19” 1U Rack-mount rugged fanless server. Based on Intel® Coffeelake 14nm Core™ Q370 Chipset, ROC285B can be processed by Intel® Coffeelake-Refresh i7-9700TE (8 cores, 3.8GHz) processor. It supports up to 64GB of memory capacity, onboard dual Gbit Ethernet, 3 x DP (resolution up to 4096 x 2304), SuperSpeedPlus USB 3.1 ports (10Gb/s). Also, ROC285B provides PCIe x16 expansion for high speed delivering, like RAID card, graphic card or 10GbE…etc. With further advantages, for excample, HDD/ SSD easy swap tray and multi-expansion slot, we believe that ROC285B is a best choice for those, who are looking for an ideal server to meet the requirements of commercial and industrial platforms, process control, intelligent automation and manufacturing applications.

NEW_STYLE_products_ROC285B_01_01NEW_STYLE_products_ROC285B_01_02

The need for data security in Big Data era
NEW_STYLE_products_ROC285B_02



In the Big Data era there are billions of bits of data produced every single day. Thus, the status of Data Centers becomes much more important. A data center centralizes an organization’s IT operations and equipment, as well as where it stores, manages, and disseminates its data. Because Data centers house a network’s most critical systems and are vital to the continuity of daily operations, it’s important to keep data centers operating normally. However, some issues, such as vibration and shock, can cause equipment failure, downtime and data corruption. How to handle volumes of data while securing it becomes one of the most important concerns when choosing an ideal server for data processing.

Considering the concerns that customers may have, the professional rugged computer designer, STACKRACK, brings out a new 19” 1U rack-mount rugged fanless server ROC285B. As a 1U rack-mount server, ROC285B provides the most cost effective and high density solutions. What’s more, fanless cooling system with no moving parts is designed as a great thermal solution. It not only ensures internal stability, but also improves anti-dust capability.

High-End Processing Units

Based on Intel® Coffeelake 14nm Core™ Q370 Chipset, ROC285B can be processed by Intel® Coffeelake-Refresh i7-9700TE (8 cores, 3.8GHz) processor. Compared with previous generations, i7-9700TE processor contains much more compute cores, which means the better performance of computations on the data and much more fast memory caches which are responsible for holding data that is currently being worked on. So, ROC285B could offer unique entrepreneur-class capabilities and killer speed while dealing with a large amount of data.

NEW_STYLE_products_ROC285B_04

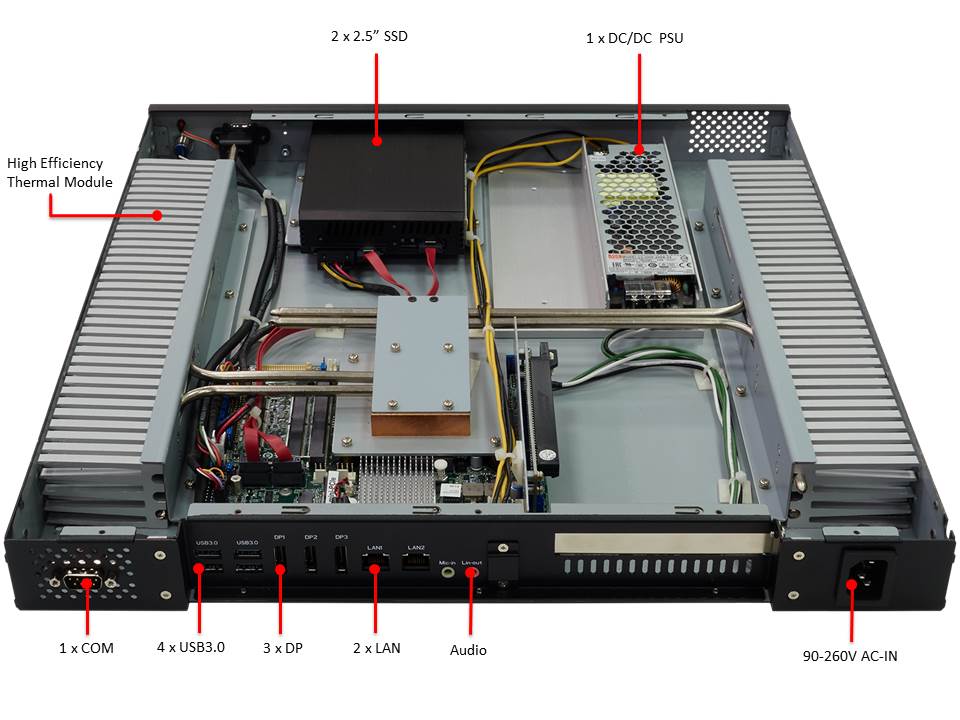

High efficient I/O design

On the other hand, ROC285B equipped with high efficient I/O design, composing dual Gbit Ethernet, 3 x DP (resolution up to 4096 x 2304), SuperSpeedPlus USB 3.0 ports (10Gb/s). Efficient connection gives ROC285B the opportunity to exchange information in real time and deliver the data to required platforms without postponement.

NEW_STYLE_products_ROC285B_03
PCIe x16 expansion

Also, ROC285B provides PCIe x16 expansion for high speed delivering, like RAID card, graphic card or 10GbE…etc.

1. Sensor Fusion Capability:

By adding graphic card, the complete system could fulfill powerful CPU+GPU to support sensor fusion, which requires a powerful processing unit to be in the center, where all the raw data from the sensors is processed. Interpreting the data and deciding how to react, CPU+GPU can make sensors to be truly “smart” sensors and lead the whole system to work accurately.


2. Large Capacity Storage and an advantage of data backup plan:

By adding RocketRAID 4520SGL SAS RAID Card or RocketRAID 840A SATA RAID Card, ROC285B can expand up to 8 Bays SAS or 12 Bays SATA RAID. By using a large numbers of drives ROC285B is able to increase a great amount of storage. Moreover, ROC285B can build a RAID system to increase HDD fault tolerance. In data security, RAID refers to the way which an array of hard disks creates redundant backups of the data, so data can be retained even in the event of a catastrophic system failure.


3. High Capacity RAM support:

Further more, two SO-DIMM, dual channel DDR4 are designed in our rugged server, increasing the RAM of ROC285B up to 64GB and providing the best operating performance in such a compact size. These features make the ROC285B an ideal rack-mount server for industrial embedded applied computing application, including commercial and industrial platforms, process control, intelligent automation and manufacturing applications.

Wide Range AC-DC Power Input

Also, wide range AC to DC power input is a characteristic of ROC285B. Ranging from 90V to 260V, ROC285B allows the system to be utilized in extensive power types. The design of wide power range keeps the system’s reliability and you can expect longer life-span as well. Sudden drop or surge of power posts absolutely no threat to this smart system.

NEW_STYLE_products_ROC285B_07



Extended Temperature Range ensures the reliability of the equipment

With STACKRACK’s extraordinary research and perfect design, ROC285B can successfully operate from -20°C to 60°C degrees, and with our special industrial extended range of temperature layout, it can also reduce the potential computer glitches caused by hardware incompatibility and losses of connectivity caused by shock and vibration.

NEW_STYLE_products_ROC285B_08_02



Operating Temp.

-20°C to 60°C

System

CPU

Socket LGA 1151 for Intel® Core i7/i5/i3/Celeron® (Supports up to 65W)

Intel® Core™ i7-9700TE (8C x 3.8 GHz), 12MB Cache

Chipset

Intel® Q370 Chipset

Memory Type

2 x SO-DIMM DDR4 2400/2666 MHz up to 64GB

Expansion Slot

1 x PCIe x16 (Graphics card dimension should not be large than 170x110mm)

1x M.2 (Key M, 2242/2260/2280) with PCIe x4 and SATA3

Storage Device

2 x 2.5” SATA HDD/SSD easy swap tray

Ethernet Chipset

Intel® I210 & I219LM GbE LAN (support 10/100/1000 Mbps for x2 RJ45 ports)

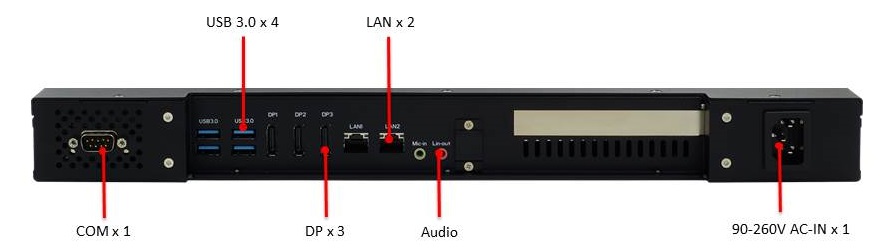

Rear I/O

Display Port

3 x DP, resolution up to 4096 x 2304 60@Hz

Ethernet

2 x RJ45 Intel® I210 & I219LM GbE LAN (support 10/100/1000 Mbps)

Audio

2 x 3.5mm Audio Jacks (1 x MIC, 1 x Line-Out)

COM

1 x RS232/422/485

USB Port

4 x USB 3.1(10Gb/s)

AC-IN

1 x AC Inlet

Front I/O

Button

1 x Power Button w/Indicator LED

Indicator LED

HDD

USB

2 x USB 2.0

Easy Swap SSD Tray

2

Power Requirement

Power Input

90~260V AC-in

Applications, Operating System

Applications

Commercial and Industrial Platforms, Embedded Computing, Process Control,

Intelligent Automation and manufacturing applications

Operating System

Windows 10 64Bit

Ubuntu13.04, Ubuntu13.10, Ubuntu14.04, Fedora 20

Physical

Dimension

440 x430 x 44 mm (W x D x H)

Weight

8.5Kg

Chassis

SECC

Heatsink

Aluminum Alloy, Corrosion Resistant

Finish

Anodic aluminum oxide

Environmental

MIL-STD-810G Test

Method 507.5, Procedure II (Temperature & Humidity)

Method 501.5, Procedure I (Storage/High Temperature)

Method 501.5, Procedure II (Operation/High Temperature)

Method 502.5, Procedure I (Storage/Low Temperature)

Method 502.5, Procedure II (Operation/Low Temperature)

Method 503.5, Procedure I (Temperature shock)

EMC

CE and FCC compliance

Green Product

RoHS compliance

Operating Temp.

w/o Graphic Card (ET: -20 to 60°C; UT: -30 to 70°C) ; w/Graphic Card (0 to 50°C)

Storage Temp.

-40°C to 85°C

Relative Humidity

5% to 95%, non-condensing

Thermal Measurement

ROC285B CPU Test Result

Intel® 8th Gen. Core™ i7-8700T
Processor Base Frequency: 2.40 GHz
Max Turbo Frequency: 4.00 GHz



Thermal Point \ Testing Temp.

-40°C

-20°C

0°C

+25°C

+40°C

+50°C

+55°C

+60°C

CPU T-J

30

45

36

70

71

77

73

74

CPU Die

21

29

18.3

58.4

61.4

68.3

71

72

CPU Heatsink

16

25

14.7

54.3

58.6

65

70

71

CPU Frequency (GHz)

2.8

2.8

2.8

2.7

2.39

2.39

0.79

0.79
