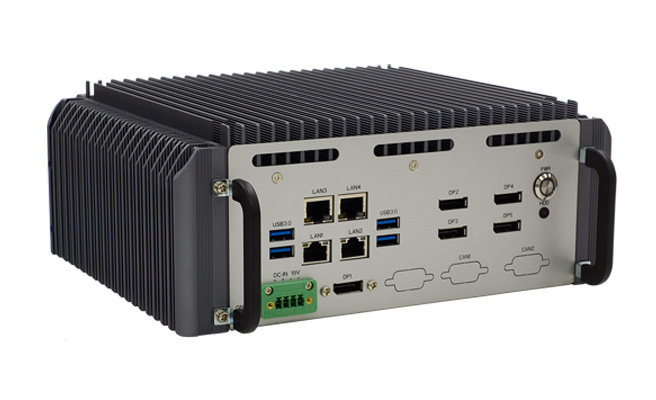

CPT320 - Intel i7-9700TE , NVIDIA GTX1060 GPU Server
Coffee Lake(R) i7-9700TE , GTX1060 GPU computer ,Supporting 120W NVIDIA GPU, 2 x 2.5" SSD, NVIDIA®GTX1060 GPU (CUDA Cores:1280), Operating Temperature -40°C~+60°C
- Design for reliability under demanding MIL-STD-810G Thermal, Shock, Vibration, Humidity/EMI/EMC conditions
- Intel® 9th Gen Core i7-9700TE Processor (1.8GHz turbo up to 3.8GHz, 8 cores)
- 2 x DDR4 SO-DIMM up to 32GB
- NVIDIA®GTX1060/1050Ti GPU (CUDA Cores:1280)

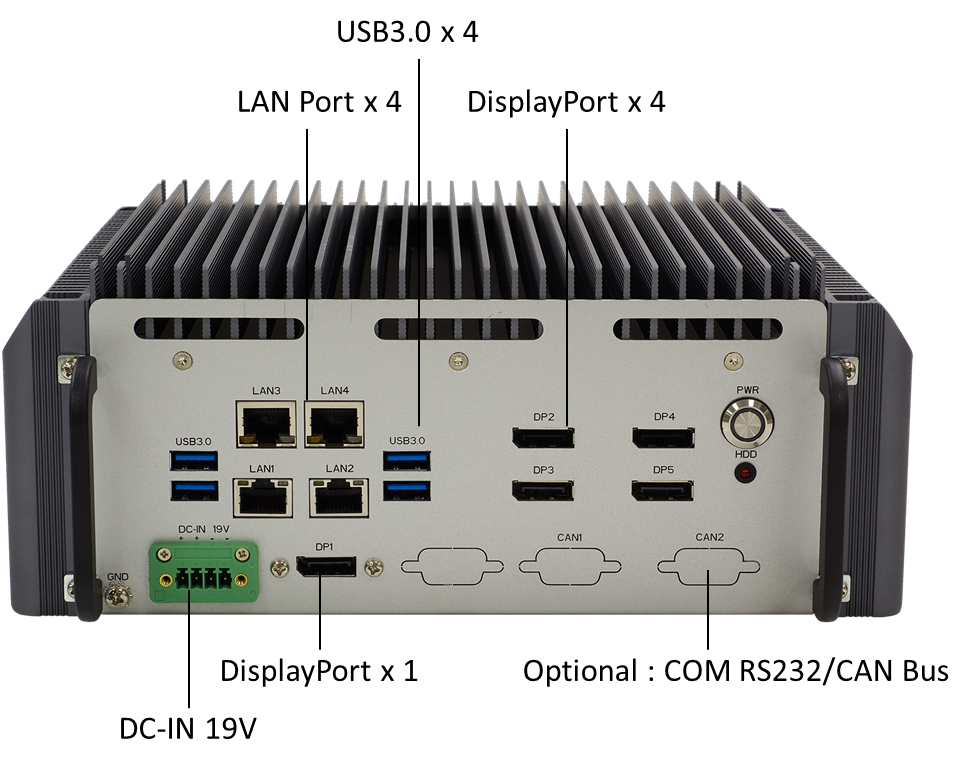

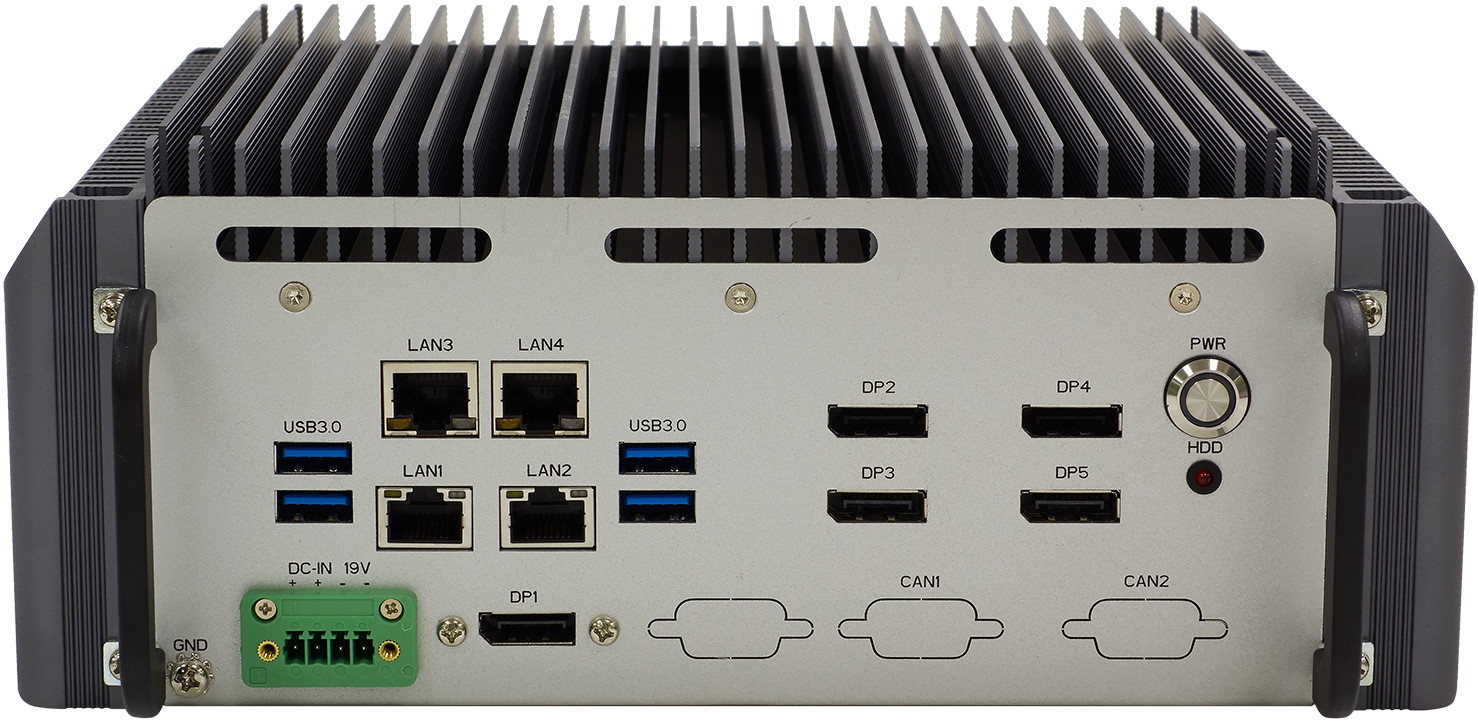

- 4 x RJ45 LAN, 4 x USB, 5 x DP
- 2 x 2.5" SSD/HDD
- Extended range of temperature -40°C~60°C
- Technical Profile
- CPU Performance
- SSD Performance
- Thermal Solution
CPT320, an AI Fusion Computer driven by Intel® 9th Gen Core i7-9700TE (3.8GHz, 8Cores), offering even greater CPU and graphics performance. Further equipped with NVIDIA®GTX1060 GPU (CUDA Cores:1280), CPT320 possess remarkable and impressive performance in image processing, plus the system can support up to 5 DisplayPorts allowing multi-display application. CPT320 at the same time equipped with up to four Ethernet Ports, four USB3.0, and optional COM Ports and CAN bus, supporting high input and output efficiency. What's more, with DDR4 up to 32GB, the system is designed to have great capability in data storage and analysis. Last but not the least, CPT320 is designed to operate under extend range of temperature from -20°C to 60°C, and demanding MIL-STD-810G Thermal, Shock, Vibration, Humidity/EMI/EMC conditions.
- The Core Brain of Driverless Vehicle

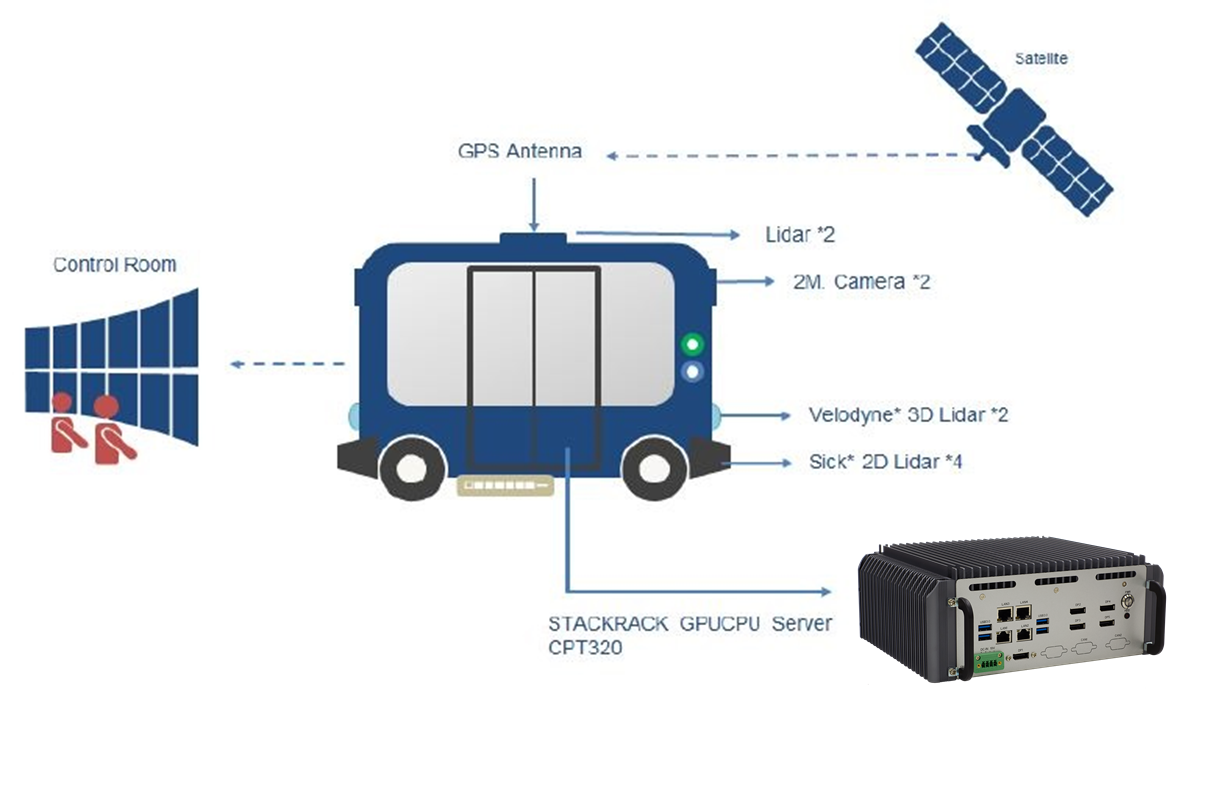

Driverless vehicle requires multiple sensors such as LiDARs, cameras to play as its eyes for environment and obstacle detection. The image produced by LiDARs and cameras need to be analyzed, compared and one step further come up with a decision-making result to indicate control system to react to the situation. CPT320 is perfectly match with the demand of driverless technology. With NVIDIA®GTX1060 GPU (CUDA Cores:1280), image provided by sensors can be efficiently processed and analyzed, plus Intel® 9th Gen Corei7 CPU and DDR4 32GB memory which greatly enhance the working speed of data analysis. Possessing 5 DisplayPorts, CPT320 is able to display multiple images on the vehicle, including the direct image detected by LiDARs and cameras, passenger information and operation interface. CPT320 is undoubtedly an outstanding solution to play an important role in self-driving technology and AI fusion.
- Unique Challenges

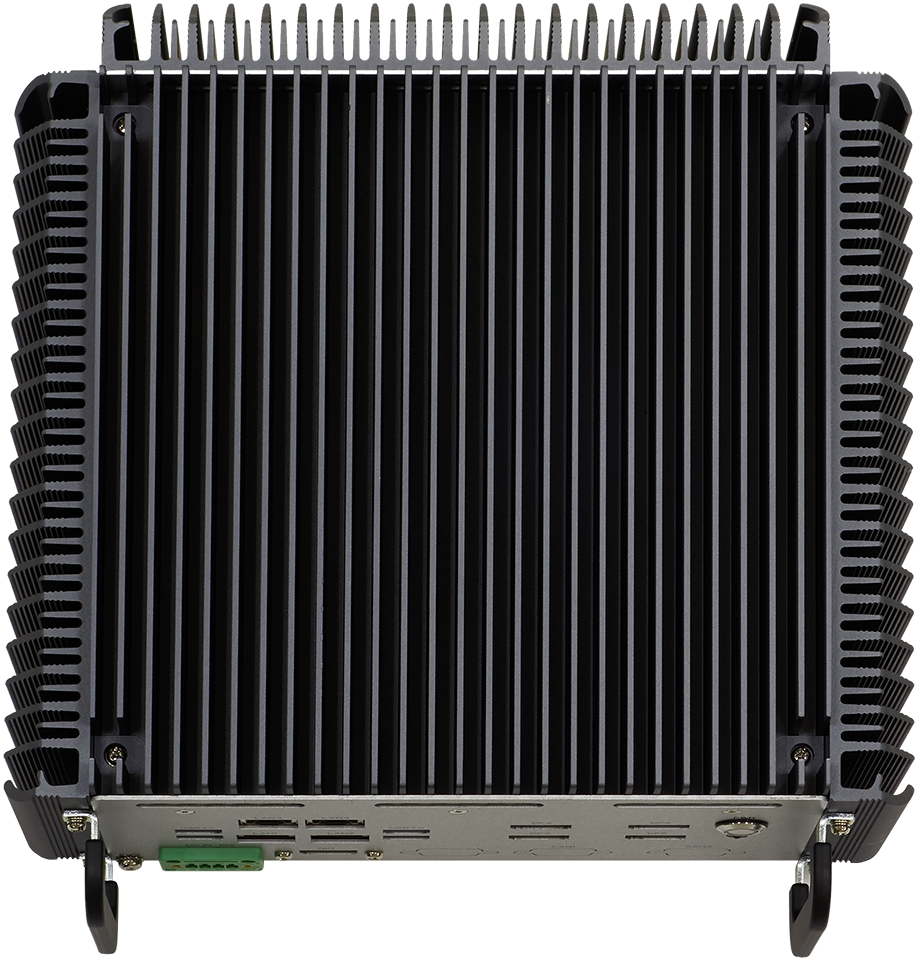

Patented Thermal Solution

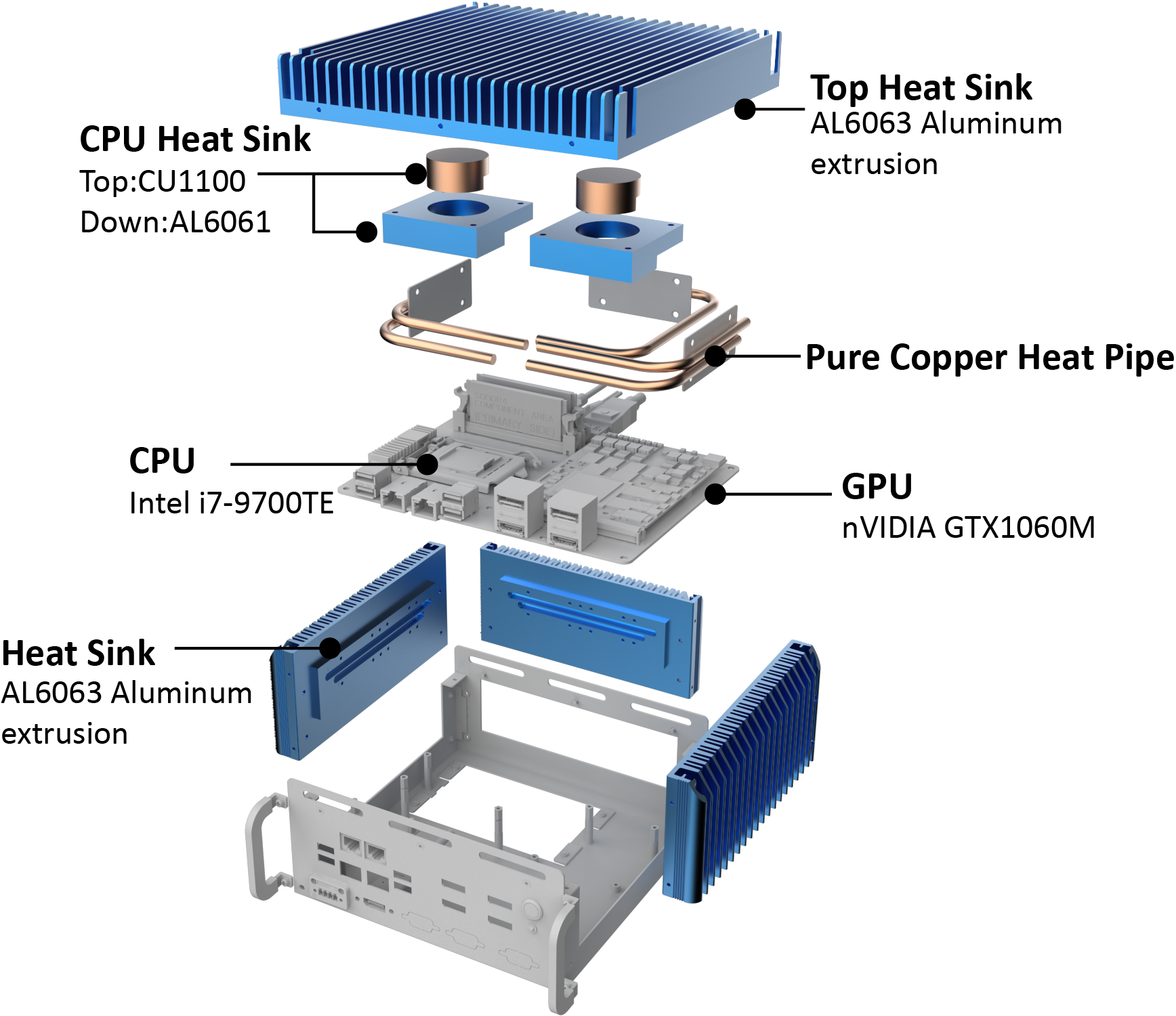

STACKRACK designs a unique enclosure that is able to stack together both horizontally and vertically. The aluminum heat sink enclosure of CPT320 allows quad-sided heat dissipation. STACKRACK exclusively adopts special heat radiating material and combining with special CNC cutting, further forged into a lavish sophisticated metal. Apart from the special heat sink enclosure, CPT320 innovatively adopts two kinds of copper heat spreader. The shape and the size of the spreader are tailor-made based on the heat sources placement of CPU module and graphic module. In view of the gap difference between motherboard and heat sink, STACKRACK builds two heat spreaders in different thicknesses. Combining all these exclusive thermal designs can alternatively replace traditional fan, and also ensures high reliability and stability while working under wide range temperature from -20°C up to 60°C.
MIL-STD-810G designed for high environmental adaptation
CPT320 is designed to meet MIL-STD-810G standard for shock and vibration. MIL-STD-810G standard is considered the upmost principle, which guarantees the system achieves superior quality and stability when operate under various environment, especially applied in vehicle, which can possibly run through unpredictable terrain, causing sudden shock or occasional vibration.
|-20°C ~ 60°C ( ambient with air flow )|
|CPU||Intel® 9th Gen Core™ i7-9700TE ( Frequency 1.8GHz, Turbo Boost Frequency
up to 3.8GHz ), 8 Corest, 12MB SmartCache.
Build-in HD Graphics 630 for excellent 3D, Turbo Boost Technology 2.0,
VPro and Hyper-Threading support.
GeForce GTX 1060 Ti
CUDA Cores 1280
Memory Interface GDDR5
Standard Memory Config 6 GB
|Memory||Up to 32GB DDR4 RAM|
|Chipset||Intel® H110 Chipset providing integrated USB 3.0 and supporting 6th /7th
generation Intel® Core™ processor families
|Expansion Slot||1 x M.2 ( KEY E, 2230 ) with PCIe x1 and USB 2.0 for Wireless
1 x M.2 ( KEY M, 2242/2260/2280 ) with PCIe x4 and SATA3 for SSD
|Display Port||5 x 20Pin DisplayPort connectors (Female)|
|M.2||M.2 Solid State Disk ( SSD ) - up to 1TB Capacity.
Rugged Industrial NAND Flash mSATA Storage w/ Rugged -40/+85C High Capacity,
optional Pre-loaded with Linux or Windows OS.
128 / 256 / 512GB /1TB Innodisk 3MV2-P Series MLC SATA III 6Gb/s Flash SSD,
Rated for 520 MB/sec Sequential Read ; 350 MB/sec Write Max.
|SSD/HDD||2 x 2.5" Drive Bay|
|2 x Intel Gigabit Ethernet LAN Interfaces ( 10/100/1000Mbps )|
|DisplayPort||4 x 20Pin DisplayPort connectors (Female)|
|Ethernet||2 x RJ45 Gigabit Ethernet LAN Interfaces
4 x RJ45 Gigabit Ethernet LAN Interfaces ( option )
|Serial Port||2 x DB9 connector RS-232 (Optional)|
|Button||1 x Power Button with LED|
|DC-IN||4P Rugged Terminal connector, DC 12V|
|Indicator LED||HDD Active LED|
Applications, Operating System
|Applications||Commercial and Military Platforms Requiring Compliance to MIL-STD-810G
Embedded Computing, Process Control, Intelligent Automation and
manufacturing applications where Harsh Temperature, Shock, Vibration, Altitude,
Dust and EMI Conditions. Used in all aspects of the military
|Operating System||Windows 10
Ubuntu13.04, Ubuntu13.10, Ubuntu14.04, Fedora 20
|Dimension ( W x D x H )||250 x 225 x 98 mm|
|Chassis||SECC + Aluminum Alloy, Corrosion Resistant.|
|Finish||Anodic aluminum oxide ( Color silver )|
|Cooling||Natural Passive Convection/Conduction. No Moving Parts|
|Ingress Protection||Dust Proof ( Similar to IP50 )|
|MIL-STD-810G Test||Method 507.5, Procedure II ( Temperature & Humidity )
Method 516.6 Shock-Procedure V Non-Operating ( Mechanical Shock )
Method 516.6 Shock-Procedure I Operating ( Mechanical Shock )
Method 514.6 Vibration Category 24/Non-Operating ( Category 20 & 24, Vibration )
Method 514.6 Vibration Category 20/Operating ( Category 20 & 24, Vibration )
Method 501.5, Procedure I ( Storage/High Temperature )
Method 501.5, Procedure II ( Operation/High Temperature )
Method 502.5, Procedure I ( Storage/Low Temperature )
Method 502.5, Procedure II ( Operation/Low Temperature )
Method 503.5, Procedure I ( Temperature shock )
|Operating Temperature||-20°C to 60°C ( ambient with air flow )|
|IStorage Temperature||-40°C to 85°C|
|EMC||CE and FCC compliance|
The CPT320 offers highly effectively heat conductive and heat convective thermal solutions to meet the demands of customers' extended temperature requirements. The heat conductive solutions uses an aluminum flat mass to place in direct contact with the processor and chipset, the heat from chips then transfers it to the case of the system. In addition, the convective thermal solutions introduce airflow directed to move across the surface of a fin style heatsink placed on top of the processor and chipset. This can be done with the aid of an appropriately sized fan placed in top of the fin style heatsink. Alternately, enclosure airflow can be routed to flow across a fin style heatsink.

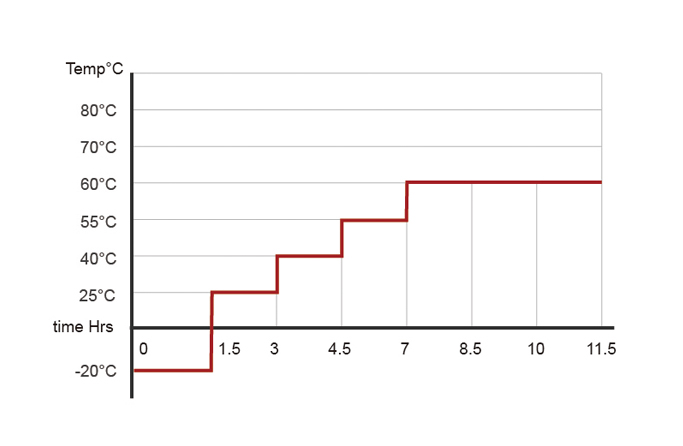

|Test Temperature||High 0°C ~60°C / Low -20°C ~0°C|
|Test Time||11.5 Hours / 1.5 Hours|
|Test Standard||Reference IEC60068-2|
|Test Software||Burnin test v6.0|
|Criteria||After testing, system can't halt.|
- Test Configuration
Intel® Core i7-7700T 2.9GHz
2 x DDR4 2400 SO-DIMM up to 16GB
Intel® I219 GbE LAN
Intel® I210 GbE LAN
Burnin test v6.0、AS SSD、 Intel Extreme Tuning Utility、
iperf GPU-Z、FurMark v1.9.2
- Thermal Measurement
STACKRACK provides real lab testing figures to show how CPU performance is with each tailor made thermal kits as important references and design guide for system engineers. For system integration, the crucial challenge is the operation performance under high temperature, thus STACKRACK conducts long time experiments to make sure the superior testing result for all critical missions. By revealing temperature at processor T junction, processor die and heat sink, STACKRACK is able to analyses the thermal solution we designed achieves maximum efficacy and observe CPU performance. The high temperature testing takes 9 hours which at each temperature point we burn in CPT320 for two hour, from 40°C to 60°C.

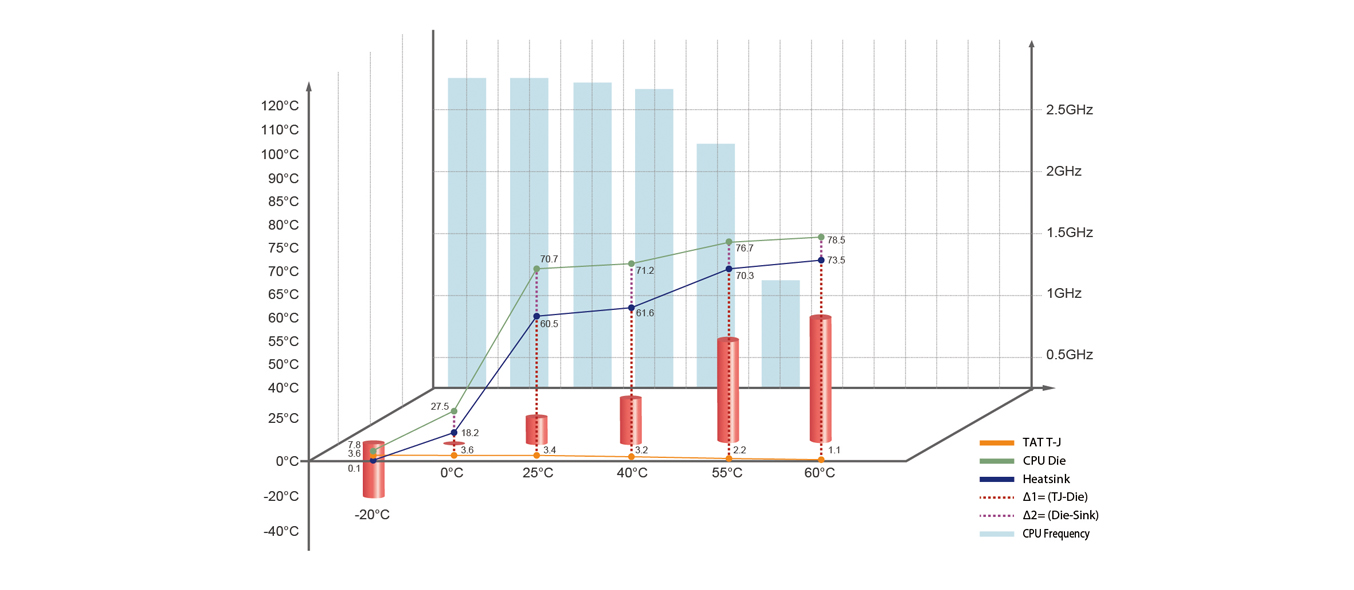

CPT320 CPU Test Result
Thermal Point \ Testing Temp.
CPU Frequency(GHz) 3.6 3.6 3.4 3.2 2.2 1.1
CPT320 GPU Test Result
Thermal Point \ Testing Temp.
GPU Frequency(GHz) 1.35 1.35 1.35 1.35 1.35 1.35

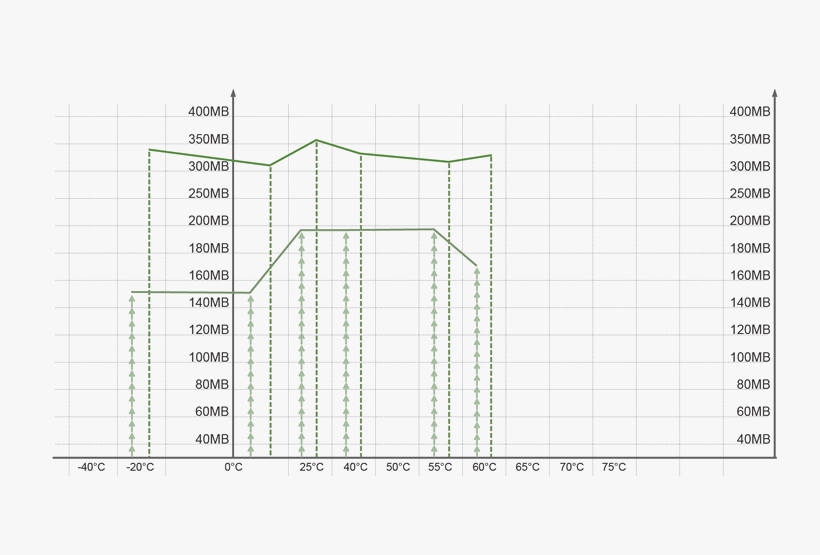

SSD ( Read ) MB/s
SSD ( Write ) MB/s
CPT320 MB HeatSink - IO Performance
|SSD ( Read ) MB/s||153.9||154.4||192.5||192.6||192.9||171.9|
|SSD ( Write ) MB/s||339.5||306.0||353.5||336.5||319.9||325.7|
Patented Thermal Solution
STACKRACK guarantees reliable and supreme solutions for industrial and military applications. All of our selected components are of authentic industrial grade, and have verified their stability and durability through a series of Wide-range Temperature tests.Superior fanless design guarantees silent operation that enhances the flexibility of mobility and prevents the intrusion of dust and debris. Achieving ultimate reliability and stability, CPT320 can operate under extended temperature ranging from -40 to 60°C.
